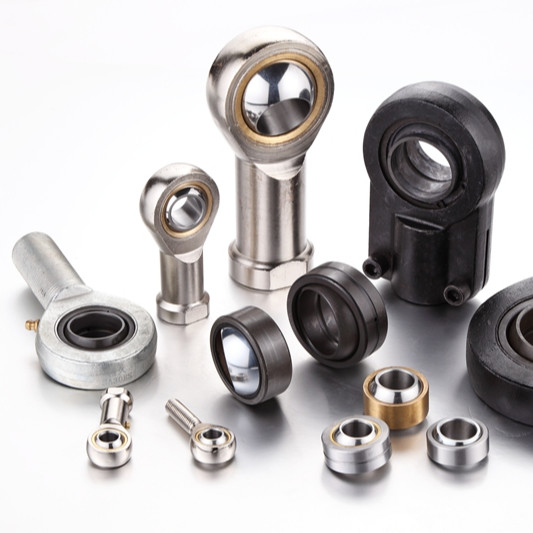

PHS POS female and male thread rod ends bearing
Description of PHS POS female and male thread rod ends bearing:
Rod end bearing consist of an eye-shaped head with integral shank forming a housing and a standard spherical plain bearing, or a spherical plain bearing inner ring, or a spherical plain bearing inner ring and a sliding layer between the bore of the head and the inner ring. As a rule, rod ends are available with left or right-hand female or male threads. Rod ends have the sliding contact surface combinations steel-on-steel, steel-on-bronze, steel-on-PTFE composite material, steel-on-PTFE fabric and steel-on-PTFE plastic.
The Rod End is a spherical slide bearing incorporating a spherical inner ring with precision and hardness equivalent to that of steel ball bearings. It provides very smooth rotating and oscillating motion without play.
Application of PHS POS female and male thread rod ends bearing:
Rod ends bearing are widely used in cars, compressors, construction, electric motors, food industry, home appliances etc. As a rolling element, it turns the world.
| Product name |
SFT Number |
Dimensions mm | Load ratings KN | Weight ≈kg |
|||||||||||||
| d | d3 | B | C1 max |
l1 max |
d2 max |
h | l2 max |
dk | R1s min |
d1 | α° ≈ |
C | Co | ||||
| Rod end bearing | POS5 | 5 | M5 | 8 | 6 | 20 | 18 | 33 | 42 | 11.11 | 0.3 | 7.7 | 13 | 3.25 | 5.7 | 0.013 | |
| Rod end bearing | POS6 | 6 | M6 | 9 | 6.75 | 23 | 20 | 36 | 46 | 12.7 | 0.3 | 8.9 | 13 | 4.3 | 72 | 0.02 | |
| Rod end bearing | POS8 | 8 | M8 | 12 | 9 | 25 | 24 | 42 | 54 | 15.875 | 0.3 | 10.3 | 14 | 7.2 | 11.6 | 0.03 | |
| Rod end bearing | POS10 | 10 | M10 | 14 | 10.5 | 30 | 26 | 48 | 61 | 19.05 | 0.3 | 12.9 | 13 | 10 | 14.5 | 0.055 | |
| Rod end bearing | POS12 | 12 | M12 | 16 | 12 | 34 | 30 | 54 | 69 | 22.225 | 0.3 | 15.4 | 13 | 13.4 | 17 | 0.085 | |
| Rod end bearing | POS14 | 14 | M14 | 19 | 13.5 | 37 | 34 | 60 | 77 | 25.4 | 0.3 | 16.8 | 16 | 17 | 24 | 0.14 | |
| Rod end bearing | POS16 | 16 | M16 | 21 | 15 | 41 | 40 | 66 | 86 | 28.575 | 0.3 | 19.3 | 15 | 21.6 | 28.5 | 0.21 | |
| Rod end bearing | POS18 | 18 | M18X1.5 | 23 | 16.5 | 45 | 44 | 72 | 94 | 31.75 | 0.3 | 21.8 | 15 | 26 | 42.5 | 0.28 | |
| Rod end bearing | POS20 | 20 | M20X1.5 | 25 | 18 | 48 | 48 | 78 | 102 | 34.925 | 0.3 | 24.3 | 14 | 31.5 | 52.5 | 0.38 | |
| Rod end bearing | POS22 | 22 | M22X1.5 | 28 | 20 | 52 | 54 | 84 | 111 | 38.1 | 0.3 | 25.8 | 15 | 38 | 57 | 0.48 | |
| Rod end bearing | POS25 | 25 | M24X2 | 31 | 22 | 58 | 60 | 94 | 124 | 42.85 | 0.3 | 29.5 | 15 | 47.5 | 68 | 0.64 | |
| Rod end bearing | POS28 | 28 | M27X2 | 35 | 24 | 63 | 66 | 103 | 136 | 47.6 | 0.3 | 33.7 | 15 | 58 | 75.5 | 0.96 | |
| Rod end bearing | POS30 | 30 | M30X2 | 37 | 25 | 67 | 70 | 110 | 145 | 50.8 | 0.3 | 34.8 | 17 | 64 | 88 | 1.1 | |
| Product name |
SFT Number |
Dimensions mm | Load ratings KN | Weight ≈kg |
|||||||||||||||
| d | d3 | B | C1 max |
W | l3 min |
d2 max |
l4 max |
h1 | l5 max |
d4 max |
d5 max |
dk | α° ≈ |
C | Co | ||||
| Rod end bearing | PHS5 | 5 | M5 | 8 | 6 | 9 | 14 | 18 | 36 | 27 | 4 | 8.5 | 11 | 11.11 | 13 | 3.25 | 5.7 | 0.016 | |
| Rod end bearing | PHS6 | 6 | M6 | 9 | 6.75 | 11 | 14 | 20 | 40 | 30 | 5 | 10 | 13 | 12.7 | 13 | 4.3 | 7.2 | 0.022 | |
| Rod end bearing | PHS8 | 8 | M8 | 12 | 9 | 14 | 17 | 24 | 48 | 36 | 5 | 12.5 | 16 | 15.875 | 14 | 7.2 | 11.6 | 0.047 | |
| Rod end bearing | PHS10 | 10 | M10 | 14 | 10.5 | 17 | 21 | 26 | 56 | 43 | 6.5 | 15 | 19 | 19.05 | 13 | 10 | 14.5 | 0.077 | |
| Rod end bearing | PHS12 | 12 | M12 | 16 | 12 | 19 | 24 | 30 | 65 | 50 | 6.5 | 17.5 | 22 | 22.225 | 13 | 13.4 | 17 | 0.1 | |
| Rod end bearing | PHS14 | 14 | M14 | 19 | 13.5 | 22 | 27 | 34 | 74 | 57 | 8 | 20 | 26 | 25.4 | 16 | 17 | 24 | 0.16 | |
| Rod end bearing | PHS16 | 16 | M16 | 21 | 15 | 24 | 33 | 40 | 84 | 64 | 8 | 22 | 28 | 28.575 | 15 | 21.6 | 28.5 | 0.22 | |
| Rod end bearing | PHS18 | 18 | M18X1.5 | 23 | 16.5 | 27 | 36 | 44 | 93 | 71 | 10 | 25 | 31 | 31.75 | 15 | 26 | 42.5 | 0.32 | |
| Rod end bearing | PHS20 | 20 | M20X1.5 | 25 | 18 | 30 | 40 | 48 | 101 | 77 | 10 | 27.5 | 35 | 34.925 | 14 | 31.5 | 42.5 | 0.42 | |
| Rod end bearing | PHS22 | 22 | M22X1.5 | 28 | 20 | 32 | 43 | 54 | 111 | 84 | 12 | 30 | 38 | 38.1 | 15 | 38 | 57 | 0.54 | |
| Rod end bearing | PHS25 | 25 | M24X2 | 31 | 22 | 36 | 48 | 60 | 124 | 94 | 12 | 33.5 | 42 | 42.85 | 15 | 47.5 | 68 | 0.73 | |
| Rod end bearing | PHS28 | 28 | M27X2 | 35 | 24 | 41 | 53 | 66 | 136 | 103 | 14 | 37 | 46 | 47.6 | 15 | 58 | 75 | 0.98 | |
| Rod end bearing | PHS30 | 30 | M30X2 | 37 | 25 | 46 | 56 | 70 | 145 | 110 | 15 | 40 | 50 | 50.8 | 17 | 64 | 88 | 1.1 | |
Material of of PHS POS female and male thread rod ends bearing:
Rod end of steel and zinc coated, with male or female thread, spherical surface with bronze liner, inner ring of carbon chromium steel, spherical surface with chromium plating, can be lubricated via a nipple or a hole in the rod end. It has characteristics of large load capability, easy mounting and dismounting and mechanism simplification.
