Product Details
Place of Origin: China
Brand Name: SFT
Model Number: 22320 22322
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Cage: |
Steel Cage |
Application: |
Machinery |
Material: |
Chrome Steel GCr15 |
Type: |
Spherical Roller Bearing |
Structure: |
Spherical |
Number Of Row: |
Double Row,Single Row |
Cage: |
Steel Cage |
Application: |
Machinery |
Material: |
Chrome Steel GCr15 |
Type: |
Spherical Roller Bearing |
Structure: |
Spherical |
Number Of Row: |
Double Row,Single Row |

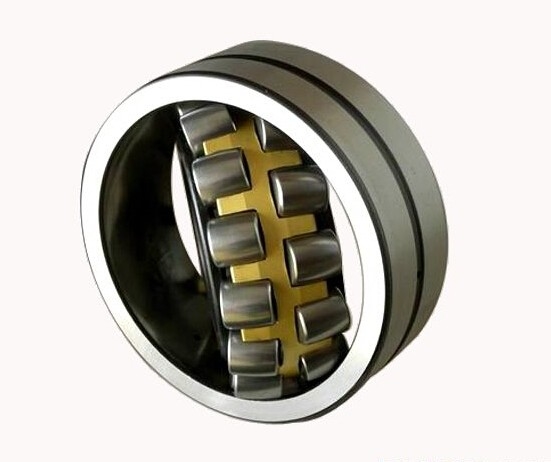

Auto spare parts car used spherical roller bearing
Spherical roller bearings mainly used to bear the radial and axial joint load.The general should not be alone to bear the axial load,The bearing can be respectively arranged on inner ring(with a full set of roller and the retainer and the outer ring).The bearings do not allow the shaft relative to the casing having an inclined load in the radial direction, appointment would produce an additional axial force.This kind of axial clearance of bearing size, can work closely, When the axial clearance is too small, high temperature rise; axial clearance of bearing large, easily damaged.
Feature of spherical roller bearing:
With low operation temperature and long service life
With a larger radial internal clearance of cylindrical or conical hole design
| Material | Chrome Steel, Carbon Steel, Stainless steel |
| Precision Grade | P0, P6, P5 |
| Seal type | Open |
| Cage material | Steel, nylon , Brass |
| Package | Single box or according to buyers requirement |
| Details | 1.Low price |
| 2.Low vibration | |
| 3.high rolling accuracy | |
| Payment Term | TT or L/C or Western Union |
| Service | 1.OEM |
| 2.Good Service Offered | |
| 3.Buyer Label Offered | |
| Port | Tianjin Shanghai Ningbo |
| model list | d(mm) | D(mm) | B(mm) | Cr( N) | C0r(N) | m(kg) |
| 22308 | 40 | 90 | 33 | 73500 | 90500 | 1.041 |
| 22309 | 45 | 100 | 36 | 108000 | 140000 | 1.387 |
| 22310 | 50 | 110 | 40 | 140800 | 170000 | 1.827 |
| 22311 | 55 | 120 | 43 | 170500 | 198000 | 2.299 |
| 22312 | 60 | 130 | 46 | 184800 | 225000 | 2.881 |
| 22313 | 65 | 140 | 48 | 206800 | 252000 | 3.494 |
| 22314 | 70 | 150 | 51 | 253000 | 315000 | 4.212 |
| 22315 | 75 | 160 | 55 | 288200 | 388000 | 5.225 |
| 22316 | 80 | 170 | 58 | 316800 | 405000 | 6.296 |
| 22317 | 85 | 180 | 60 | 338800 | 440000 | 7.36 |
| 22318 | 90 | 190 | 64 | 401500 | 542000 | 8.878 |
| 22319 | 95 | 200 | 67 | 423500 | 570000 | 10.38 |
| 22320 | 100 | 215 | 73 | 495000 | 668000 | 12.941 |
| 22322 | 110 | 240 | 80 | 599500 | 832000 | 17.85 |
| 22324 | 120 | 260 | 86 | 709500 | 992000 | 22.378 |
| 22326 | 130 | 280 | 93 | 794200 | 1140000 | 28.13 |
| 22328 | 140 | 300 | 102 | 907500 | 1340000 | 34.84 |
| 22330 | 150 | 320 | 108 | 1230000 | 1600000 | 43.6 |
| 22332 | 160 | 340 | 114 | 1380000 | 1790000 | 51.9 |
| 22334 | 170 | 360 | 120 | 1420000 | 2060000 | 60.75 |
| 22336 | 180 | 380 | 126 | 1470000 | 2270000 | 68.08 |
| 22338 | 190 | 400 | 132 | 1529000 | 2530000 | 83.22 |
Applications of spherical roller bearing:
Engineering machinery, large-scale transportation equipment, chemical machinery, petroleum machinery, metallurgical industry, large-scale steel mills, cement plants, energy industry and so on.
