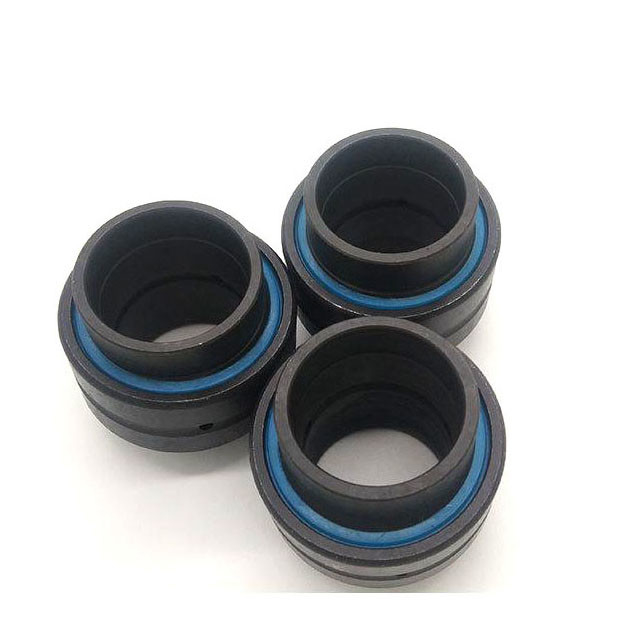

GE80ES Ball Joint Radial Motorcycle spherical plain Bearing For Loading Equipments

GE Series China Ball Joint Radial Spherical Plain Bearing

Product Description of Radial Spherical Plain Bearing:

Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds.

Radial spherical plain bearings requiring maintenance have the sliding contact surface combination steel-on-steel. Bearings with this sliding contact surface combination require regular relubrication. The high wear resistance of the sliding surfaces makes these bearings especially suitable for bearing arrangements where heavy loads of alternating direction, shock loads or heavy static loads have to be accommodated. Bearings which have cylindrical extensions at both sides of the inner ring are intended for applications where normally spacer sleeves are arranged at either side of the bearing, or are specially designed for the bearing arrangements of hydraulic cylinders.

Features of Radial Spherical Plain Bearing:

1) Characteristics: they can bear radial, axial load and their combined load, havebig load capacity and characteristics of wear-resistance, wear-corrosion, self-aligning and self-lubricate

2) Series: radial spherical plain bearings, angular contact spherical plain bearings, spherical plain thrust bearings, rod ends, ball joint rod ends.

Radial Spherical plain bearings are design to cater to all heavy loading equipments.

Plain bearings are able to cater to various sliding contact surfaces;

Steel/PTFE composite material and Steel/PTFE fabric material.

Range of production range from ID15mm to ID250mm.
