Product Details
Place of Origin: China
Brand Name: SFT
Model Number: LMB12UU
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 30-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Type: |
Linear Motion Slide Ball Bearing |
Material: |
Chrome Steel |
Application: |
Printing Machinery /textile Machinery/3D/CNC,Machinery |
Sample: |
Available |
Clearance: |
C2,C3,C4 |
Precision Rating: |
P0 P5.P6, |
Type: |
Linear Motion Slide Ball Bearing |
Material: |
Chrome Steel |
Application: |
Printing Machinery /textile Machinery/3D/CNC,Machinery |
Sample: |
Available |
Clearance: |
C2,C3,C4 |
Precision Rating: |
P0 P5.P6, |

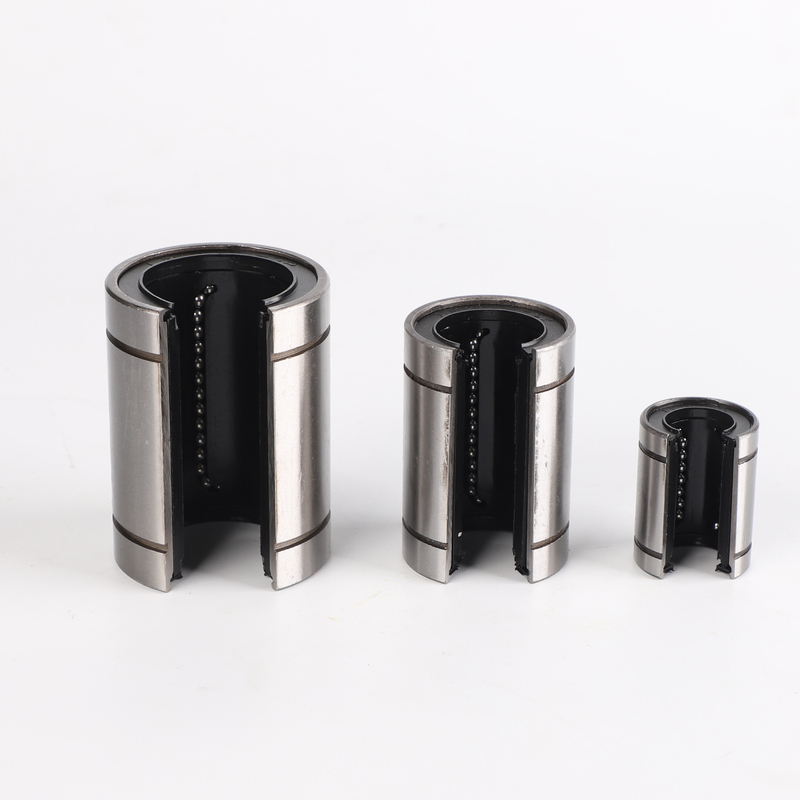

linear motion sliding bearing LMB12UU for cnc machine
Product Description of linear motion sliding bearing:
LM linear bearing:
LM3UU, LM4UU, LM5UU, LM6UU, LM8UU, LM8S, LM10UU, LM12UU, LM13UU, LM16UU,
LM20UU, LM25UU, LM30UU, LM35UU, LM40UU, LM50UU, LM60UU, LM80UU, LM100UU
Linear Slide Unit:
1. Close Type: SC8UU, SC10UU, SC12UU, SC13UU, SC16UU, SC20UU, SC25UU, SC30UU, SC35UU, SC40UU, SC50UU, SC60UU (normal type)
SC8WUU, SC10WUU, SC12WUU, SC13WUU, SC16WUU, SC20WUU, SC252UU, SC30WUU, SC35WUU, SC40WUU, SC50WUU (long type) SC8VUU, SC10VUU,SC12VUU, SC13VUU, SC16VUU, SC20VUU, SC25VUU, SC30VUU, SC35VUU, SC40VUU, SC50VUU(Short type)
2. Open Type: SBR10UU, SBR12UU, SBR13UU, SBR16UU, SBR20UU, SBR25UU, SBR30UU, SBR35UU, SBR40UU, SBR50UU(Normal type) SBR10LUU,SBR12LUU, SBR13LUU, SBR16LUU, SBR20LUU, SBR25LUU, SBR30LUU, SBR35LUU, SBR40LUU, SBR50LUU(Long type) TBR16UU, TBR20UU, TBR25UU,TBR30UU (This type with the flange at the pillow block)
Linear Bearing Catalogue
|
Model |
Inner size(mm) |
Outer size(mm) |
Length(mm) |
Weight(kg/pc) |
|
LM6UU |
6 |
12 |
19 |
0.007 |
|
LM8UU |
8 |
15 |
24 |
0.015 |
|
LM10UU |
10 |
19 |
29 |
0.03 |
|
LM12UU |
12 |
21 |
30 |
0.032 |
|
LM13UU |
13 |
23 |
32 |
0.043 |
|
LM16UU |
16 |
28 |
37 |
0.069 |
|
LM20UU |
20 |
32 |
42 |
0.087 |
|
LM25UU |
25 |
40 |
59 |
0.22 |
|
LM30UU |
30 |
45 |
64 |
0.25 |
|
LM35UU |
35 |
52 |
70 |
0.39 |
|
LM40UU |
40 |
60 |
80 |
0.585 |
|
LM50UU |
50 |
75 |
100 |
1.58 |
|
LM60UU |
60 |
90 |
110 |
1.86 |
|
LM80UU |
80 |
120 |
140 |
4.42 |
|
Model |
Inner size(mm) |
Outer size(mm) |
Length(mm) |
Weight(kg/pc) |
|
LM6LUU |
6 |
12 |
35 |
0.016 |
|
LM8LUU |
8 |
15 |
45 |
0.031 |
|
LM10LUU |
10 |
19 |
55 |
0.062 |
|
LM12LUU |
12 |
21 |
57 |
0.08 |
|
LM13LUU |
13 |
23 |
61 |
0.09 |
|
LM16LUU |
16 |
28 |
70 |
0.145 |
|
LM20LUU |
20 |
32 |
80 |
0.18 |
|
LM25LUU |
25 |
40 |
112 |
0.44 |
|
LM30LUU |
30 |
45 |
123 |
0.58 |
|
LM35LUU |
35 |
52 |
135 |
0.795 |
|
LM40LUU |
40 |
60 |
154 |
1.17 |
|
LM50LUU |
50 |
80 |
192 |
2.1 |
|
LM60LUU |
60 |
90 |
211 |
3.5 |
Application of linear motion bearing:
* 1. Machining center
* 2. Machine tools,
* 3. Precision processing
* 4. Heavy cutting tools,
* 5. Marble cutting machine
* 6. grinder
* 7. Injection machine
* 8. punch
* 9. Automation devices
