Product Details
Place of Origin: China
Brand Name: SFT
Model Number: 23022MB
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Color: |
Black |
Sample: |
Avaliable |
Material: |
Chrome Steel GCr15 |
Type: |
Spherical Roller Bearing |
Seals Type: |
Open |
Brand Name: |
SFT |
Color: |
Black |
Sample: |
Avaliable |
Material: |
Chrome Steel GCr15 |
Type: |
Spherical Roller Bearing |
Seals Type: |
Open |
Brand Name: |
SFT |

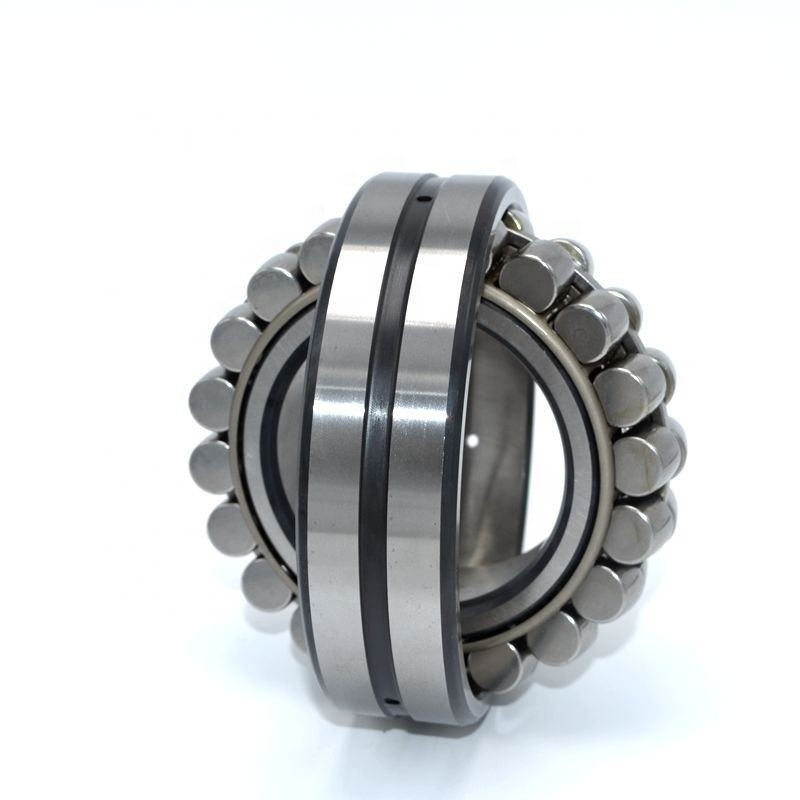

High Speed Precision Spherical Roller Bearing 23022MB
Product Description of spherical roller bearing:
A spherical roller bearing is a rolling-element bearing that permits rotation with low friction, and permits angular misalignment.
Typically these bearings support a rotating shaft in the bore of the inner ring that may be misaligned in respect to the outer
ring.
Feature of spherical roller bearing:
1) The outer ring receway is the part of the spherical surface, and this type bearing has the internal self-aligning performance, to adapt the relative deviation of the shaft and hole.
2) It can bear the radial load and the impact load, also can bear a certain amount of two-way axial load.
3) Have same width as that of the traditional bearings, yet can carry heavy loads
4) Fit for two-way axial force and upsetting moment
5) Excellent quality (be compatible with leading brands)
6) Special treatment steel (can bear higher temperature)
Sperical Roller bearing Related models:
| model list | d(mm) | D(mm) | B(mm) | Cr( N) | C0r(N) | m(kg) |
| 22308 | 40 | 90 | 33 | 73500 | 90500 | 1.041 |
| 22309 | 45 | 100 | 36 | 108000 | 140000 | 1.387 |
| 22310 | 50 | 110 | 40 | 140800 | 170000 | 1.827 |
| 22311 | 55 | 120 | 43 | 170500 | 198000 | 2.299 |
| 22312 | 60 | 130 | 46 | 184800 | 225000 | 2.881 |
| 22313 | 65 | 140 | 48 | 206800 | 252000 | 3.494 |
| 22314 | 70 | 150 | 51 | 253000 | 315000 | 4.212 |
| 22315 | 75 | 160 | 55 | 288200 | 388000 | 5.225 |
| 22316 | 80 | 170 | 58 | 316800 | 405000 | 6.296 |
| 22317 | 85 | 180 | 60 | 338800 | 440000 | 7.36 |
| 22318 | 90 | 190 | 64 | 401500 | 542000 | 8.878 |
| 22319 | 95 | 200 | 67 | 423500 | 570000 | 10.38 |
| 22320 | 100 | 215 | 73 | 495000 | 668000 | 12.941 |
| 22322 | 110 | 240 | 80 | 599500 | 832000 | 17.85 |
| 22324 | 120 | 260 | 86 | 709500 | 992000 | 22.378 |
| 22326 | 130 | 280 | 93 | 794200 | 1140000 | 28.13 |
| 22328 | 140 | 300 | 102 | 907500 | 1340000 | 34.84 |
| 22330 | 150 | 320 | 108 | 1230000 | 1600000 | 43.6 |
| 22332 | 160 | 340 | 114 | 1380000 | 1790000 | 51.9 |
| 22334 | 170 | 360 | 120 | 1420000 | 2060000 | 60.75 |
| 22336 | 180 | 380 | 126 | 1470000 | 2270000 | 68.08 |
| 22338 | 190 | 400 | 132 | 1529000 | 2530000 | 83.22 |
Applications of spherical roller bearing:
1.Papermaking machinery, deceleration device, railway vehicle axle, rolling mill, roller gearbox
2. Crusher, vibrating screen, printing machinery, woodworking machinery
3.Various industrial reducer
