Product Details
Place of Origin: China
Brand Name: SFT
Model Number: GE15UK
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Color: |
Black |
Sample: |
Avaliable |
Material: |
Chrome Steel GCr15 |
Applicable Industrie: |
Building Material Shops, Manufacturing Plant, Machinery Repair Sh |
Surface Treatment:: |
Hard Chromeplated |
Sliding Contact Surfaces: |
Steel / PTEF Composite |
Color: |
Black |
Sample: |
Avaliable |
Material: |
Chrome Steel GCr15 |
Applicable Industrie: |
Building Material Shops, Manufacturing Plant, Machinery Repair Sh |
Surface Treatment:: |
Hard Chromeplated |
Sliding Contact Surfaces: |
Steel / PTEF Composite |

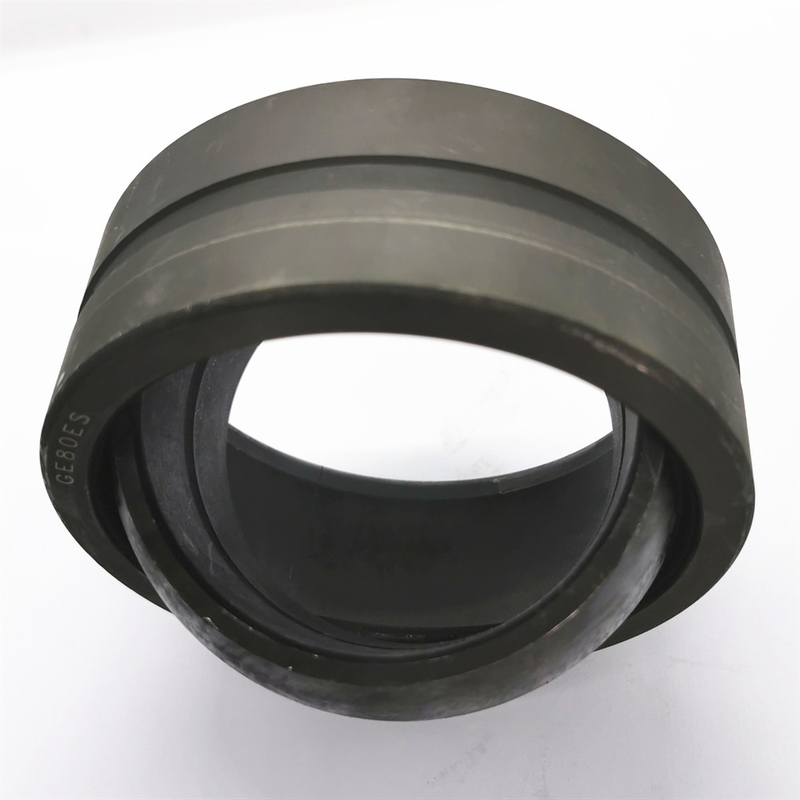

spherical plain bearings GE15UK chrome steel oscillating
Spherical plain bearings can withstand greater loads. According to their different types and structures that can withstand the radial load, axial load or radial, axial joint load. Since the inner surface of the outer sphere inlaid composite materials, so that the work can be generated in the bearing self-lubricating. Generally used for slower swing movement, and low-speed rotation, but also for the tilt angle within a certain range of motion, when the supporting shaft and shaft misalignment large shell hole, still work. Self-lubricating bearings used in water conservancy, specialized machinery and other industries.
Main Features of Spherical Plain Bearing:
1) There is an axial crack on the outer ring, which shoud be tight when installed in the housing.
2) The material of inner/outer ring is bearing steel, quenched phosphate treated.
3) The sliding surface is covered by molybdenum dioxide.
Specification of Spherical Plain Bearing:
|
No. |
Model |
Dimensions(mm) |
Load Ratings |
Weight (Kg) |
||||||||
|
d |
D |
B |
C |
dk |
r1 min |
r2 min |
α |
Dynamic |
Static |
|||
|
(KN) |
(KN) |
|||||||||||
|
1 |
GE15ES 2RS |
15 |
26 |
12 |
9 |
22 |
0.3 |
0.3 |
8 |
16 |
84 |
0.027 |
|
2 |
GE17ES 2RS |
17 |
30 |
14 |
10 |
25 |
0.3 |
0.3 |
10 |
21 |
106 |
0.041 |
|
3 |
GE20ES 2RS |
20 |
35 |
16 |
12 |
29 |
0.3 |
0.3 |
9 |
30 |
146 |
0.066 |
|
4 |
GE25ES 2RS |
25 |
42 |
20 |
16 |
35.5 |
0.6 |
0.6 |
7 |
48 |
240 |
0.119 |
|
5 |
GE30ES 2RS |
30 |
47 |
22 |
18 |
40.7 |
0.6 |
0.6 |
6 |
62 |
310 |
0.153 |
|
6 |
GE35ES 2RS |
35 |
55 |
25 |
20 |
47 |
0.6 |
1 |
6 |
79 |
399 |
0.233 |
|
7 |
GE40ES 2RS |
40 |
62 |
28 |
22 |
53 |
0.6 |
1 |
7 |
99 |
495 |
0.306 |
|
8 |
GE45ES 2RS |
45 |
68 |
32 |
25 |
60 |
0.6 |
1 |
7 |
127 |
637 |
0.427 |
|
9 |
GE50ES 2RS |
50 |
75 |
35 |
28 |
66 |
0.6 |
1 |
6 |
156 |
780 |
0.546 |
|
10 |
GE60ES 2RS |
60 |
90 |
44 |
36 |
80 |
1 |
1 |
6 |
245 |
1220 |
1.04 |
|
11 |
GE70ES 2RS |
70 |
105 |
49 |
40 |
92 |
1 |
1 |
6 |
313 |
1560 |
1.55 |
|
12 |
GE80ES 2RS |
80 |
120 |
55 |
45 |
105 |
1 |
1 |
6 |
400 |
2000 |
2.31 |
|
13 |
GE90ES 2RS |
90 |
130 |
60 |
50 |
115 |
1 |
1 |
5 |
488 |
2440 |
2.75 |
|
14 |
GE100ES 2RS |
100 |
150 |
70 |
55 |
130 |
1 |
1 |
7 |
607 |
3030 |
4.45 |
|
15 |
GE110ES 2RS |
110 |
160 |
70 |
55 |
140 |
1 |
1 |
6 |
654 |
3270 |
4.82 |
|
16 |
GE120ES 2RS |
120 |
180 |
85 |
70 |
160 |
1 |
1 |
6 |
950 |
4750 |
8.05 |
|
17 |
GE140ES 2RS |
140 |
210 |
90 |
70 |
180 |
1 |
1 |
7 |
1070 |
5350 |
11.02 |
|
18 |
GE160ES 2RS |
160 |
230 |
105 |
80 |
200 |
1 |
1 |
8 |
1360 |
6800 |
14.01 |
|
19 |
GE180ES 2RS |
180 |
260 |
105 |
80 |
225 |
1.1 |
1.1 |
6 |
1530 |
7650 |
18.65 |
|
20 |
GE200ES 2RS |
200 |
290 |
130 |
100 |
250 |
1.1 |
1.1 |
7 |
2120 |
10600 |
28.03 |
|
21 |
GE220ES 2RS |
220 |
320 |
135 |
100 |
275 |
1.1 |
1.1 |
8 |
2320 |
11600 |
35.51 |
|
22 |
GE240ES 2RS |
240 |
340 |
140 |
100 |
300 |
1.1 |
1.1 |
8 |
2550 |
12700 |
39.91 |
Applications of Spherical Plain Bearing:
