Product Details
Place of Origin: China
Brand Name: SFT
Model Number: GE45ES-2RS
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Color: |
Black |
Sample: |
Avaliable |
Packing: |
Industrial Packing |
Model Number: |
GE70ES 2RS |
Application: |
Industry,engineering |
Sliding Contact Surfaces: |
Steel / PTEF Composite |
Color: |
Black |
Sample: |
Avaliable |
Packing: |
Industrial Packing |
Model Number: |
GE70ES 2RS |
Application: |
Industry,engineering |
Sliding Contact Surfaces: |
Steel / PTEF Composite |

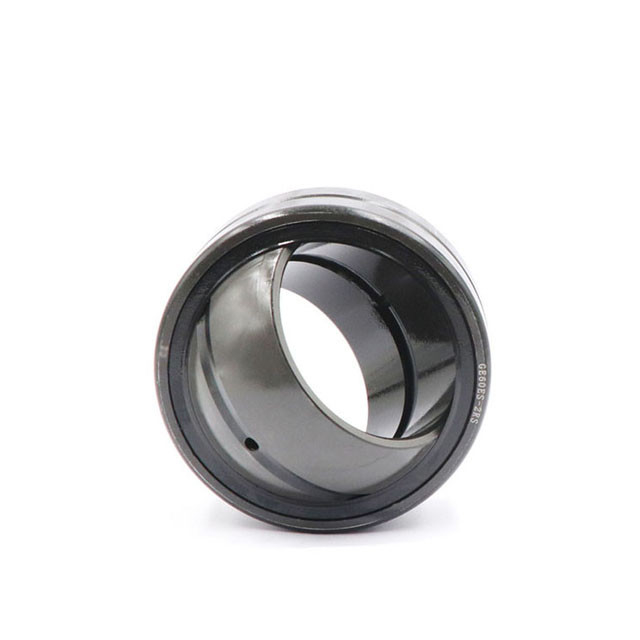

High frequency Radial spherical plain bearing for welding machine
Description of radial spherical plain bearing:
Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds.
Radial spherical plain bearings requiring maintenance have the sliding contact surface combination steel-on-steel. Bearings with this sliding contact surface combination require regular relubrication. The high wear resistance of the sliding surfaces makes these bearings especially suitable for bearing arrangements where heavy loads of alternating direction, shock loads or heavy static loads have to be accommodated. Bearings which have cylindrical extensions at both sides of the inner ring are intended for applications where normally spacer sleeves are arranged at either side of the bearing, or are specially designed for the bearing arrangements of hydraulic cylinders.
Product selection of same series:
|
Principal dimensions |
Angle of tilt |
Basic load ratings |
Mass |
Designation |
||||
|
|
|
|
|
|
dynamic |
static |
|
|
|
d |
D |
B |
C |
|
C |
C0 |
|
|
|
mm |
|
|
|
|
kN |
|
kg |
- |
|
31,75 |
50,8 |
27,762 |
23,8 |
6 |
86,5 |
260 |
0,23 |
GEZ 104 ES-2RS |
|
34,925 |
555,625 |
30,15 |
26,187 |
5 |
104 |
310 |
0,35 |
GEZ 106 ES-2RS |
|
34,925 |
555,625 |
30,15 |
26,187 |
5 |
104 |
310 |
0,35 |
GEZ 106 ES |
|
35 |
55 |
25 |
20 |
6 |
80 |
400 |
0,23 |
GE 35 ES-2RS |
|
35 |
55 |
25 |
20 |
6 |
80 |
400 |
0,23 |
GE 35 ES |
|
35 |
55 |
25 |
20 |
6 |
80 |
400 |
0,23 |
GE 35 ES-2LS |
|
35 |
62 |
35 |
22 |
15 |
100 |
500 |
0,47 |
GEH 35 ES-2LS |
|
35 |
62 |
35 |
22 |
15 |
100 |
500 |
0,47 |
GEH 35 ES-2RS |
|
38,1 |
619,125 |
33,325 |
28,575 |
6 |
125 |
375 |
0,42 |
GEZ 108 ES |
|
38,1 |
619,125 |
33,325 |
28,575 |
6 |
125 |
375 |
0,42 |
GEZ 108 ES-2RS |
|
40 |
62 |
28 |
22 |
7 |
100 |
500 |
0,32 |
GE 40 ES |
|
40 |
62 |
28 |
22 |
6 |
100 |
500 |
0,32 |
GE 40 ES-2RS |
|
40 |
62 |
28 |
22 |
6 |
100 |
500 |
0,32 |
GE 40 ES-2LS |
|
40 |
68 |
40 |
25 |
17 |
127 |
640 |
0,61 |
GEH 40 ES-2LS |
|
40 |
68 |
40 |
25 |
17 |
127 |
640 |
0,61 |
GEH 40 ES-2RS |
|
44,45 |
714,375 |
38,887 |
33,325 |
6 |
170 |
510 |
0,64 |
GEZ 112 ES-2RS |
|
44,45 |
714,375 |
38,887 |
33,325 |
6 |
170 |
510 |
0,64 |
GEZ 112 ES |
|
45 |
68 |
32 |
25 |
7 |
127 |
640 |
0,46 |
GE 45 ES-2RS |
|
45 |
68 |
32 |
25 |
7 |
127 |
640 |
0,46 |
GE 45 ES |
|
45 |
68 |
32 |
25 |
7 |
127 |
640 |
0,46 |
GE 45 ES-2LS |
|
45 |
75 |
43 |
28 |
14 |
156 |
780 |
0,8 |
GEH 45 ES-2LS |
|
45 |
75 |
43 |
28 |
14 |
156 |
780 |
0,8 |
GEH 45 ES-2RS |
|
50 |
75 |
35 |
28 |
6 |
156 |
780 |
0,56 |
GE 50 ES |
|
50 |
75 |
35 |
28 |
6 |
156 |
780 |
0,56 |
GE 50 ES-2RS |
|
50 |
75 |
35 |
28 |
6 |
156 |
780 |
0,56 |
GE 50 ES-2LS |
|
50 |
90 |
56 |
36 |
17 |
245 |
1220 |
1,6 |
GEH 50 ES-2LS |
|
50 |
90 |
56 |
36 |
17 |
245 |
1220 |
1,6 |
GEH 50 ES-2RS |
|
50,8 |
809,625 |
44,45 |
38,1 |
6 |
224 |
670 |
0,93 |
GEZ 200 ES |
|
50,8 |
809,625 |
44,45 |
38,1 |
6 |
224 |
670 |
0,93 |
GEZ 200 ES-2RS |
|
57,15 |
904,875 |
50,013 |
42,85 |
6 |
280 |
850 |
1,3 |
GEZ 204 ES |
Applications of Spherical Plain Bearing:
Applies only to withstand side of the axial load, the speed on the lower parts, such as crane hooks, vertical pumps, vertical centrifuge, jack, speed reducer and so on. Shaft bearing ring, seat ring and rolling elements are separated, you can dismantle respectively.
