Product Details
Place of Origin: China
Brand Name: SFT
Model Number: GE80HO2RS
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Surface: |
Phosphated |
Static Load: |
780KN |
Material: |
Chrome Steel GCr15 |
Type: |
Spherical Plain Bearings |
Application: |
Industry,engineering |
Sliding Contact Surfaces: |
Steel / PTEF Composite |
Surface: |
Phosphated |
Static Load: |
780KN |
Material: |
Chrome Steel GCr15 |
Type: |
Spherical Plain Bearings |
Application: |
Industry,engineering |
Sliding Contact Surfaces: |
Steel / PTEF Composite |

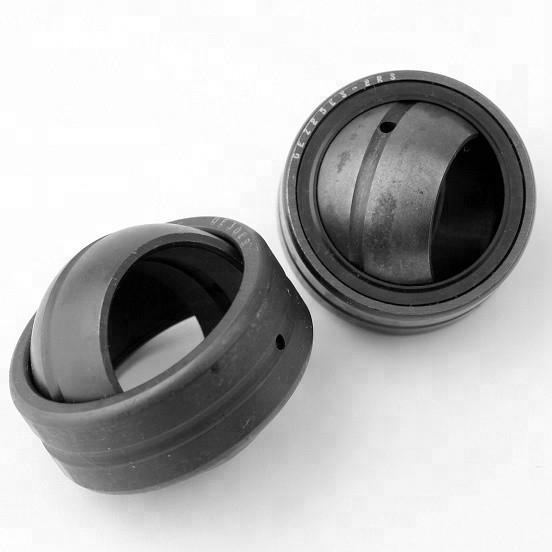

RADIAL SPHERICAL PLAIN BEARINGS GE80HO2RS
Spherical plain bearing also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required, and where a clevis end (which requires perfect 90 degree alignment between the attached shaft and the second component) is unsuitable. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female. The heim joint's advantage is that the ball insert permits the rod or bolt passing through it to be misaligned to a limited degree (an angle other than 90 degrees). A link terminated in two heim joints permits misalignment of their attached shafts (viz., other than 180 degrees).
Introduction of spherical plain Bearing :
The fundamental application of both types is the same, which is to mount a bearing safely enabling its outer ring to be stationary while allowing rotation of the inner ring. The housing is bolted to a foundation through the holes in the base. Bearing housings may be either split type or solid type. Split type housings are usually two-piece housings where the cap and base may be detached, while others may be single-piece housings. Various sealing arrangements may be provided to prevent dust and other contaminants from entering the housing. Thus the housing provides a clean environment for the environmentally sensitive bearing to rotate free from contaminants while also retaining lubrication, either oil or grease, hence increasing its performance and duty cycle.
Dimensions of spherical plain bearings:
| Part No. | DIMENSIONS(MM) | Weight | ||||||||
| d | d2 | D | B | C | dk | R1s | R2s | α | ||
| min | min | ≈ | kg | |||||||
| GE 17 HO 2RS | 17 | 21 | 30 | 21 | 10 | 25 | 0.2 | 0.3 | 3 | 0.04 |
| GE 20 HO 2RS | 20 | 24 | 35 | 24 | 12 | 29 | 0.2 | 0.3 | 3 | 0.069 |
| GE 25 HO 2RS | 25 | 29 | 42 | 29 | 16 | 35.5 | 0.2 | 0.6 | 3 | 0.12 |
| GE 30 HO 2RS | 30 | 34 | 47 | 30 | 18 | 40.7 | 0.2 | 0.6 | 3 | 0.15 |
| GE 35 HO 2RS | 35 | 40 | 55 | 35 | 20 | 47 | 0.3 | 1 | 3 | 0.26 |
| GE 40 HO 2RS | 40 | 45 | 62 | 38 | 22 | 53 | 0.3 | 1 | 3 | 0.32 |
| GE 45 HO 2RS | 45 | 52 | 68 | 40 | 25 | 60 | 0.3 | 1 | 3 | 0.43 |
| GE 50 HO 2RS | 50 | 57 | 75 | 43 | 28 | 66 | 0.3 | 1 | 3 | 0.55 |
| GE 60 HO 2RS | 60 | 68 | 90 | 54 | 36 | 80 | 0.3 | 1 | 3 | 1.1 |
| GE 70 HO 2RS | 70 | 78 | 105 | 65 | 40 | 92 | 0.3 | 1 | 3 | 1.6 |
| GE 80 HO 2RS | 80 | 90 | 120 | 74 | 45 | 105 | 0.3 | 1 | 3 | 2.5 |
Product Application spherical plain bearings:
01. Steel Industry
02. Mining & Construction
03. Paper Making Machinery
04. Wind Turbines
05. Semiconductors
06. Machine Tools
07. Gearboxes
08. Electric Motors
09. Pumps & Compressors
10. Office Equipment
11. Injection Molding
12. Motorcycles
13. Railways
14. Medical Devices
15. Food Processing Machinery
16. Agricultural Machinery
