Product Details
Place of Origin: China
Brand Name: SFT
Model Number: GEM80ES-2RS
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Color: |
Black |
Sample: |
Avaliable |
Structure: |
Spherical |
Precision Rating: |
High Precision |
Application: |
Industry,engineering |
Sliding Contact Surfaces: |
Steel / PTEF Composite |
Color: |
Black |
Sample: |
Avaliable |
Structure: |
Spherical |
Precision Rating: |
High Precision |
Application: |
Industry,engineering |
Sliding Contact Surfaces: |
Steel / PTEF Composite |

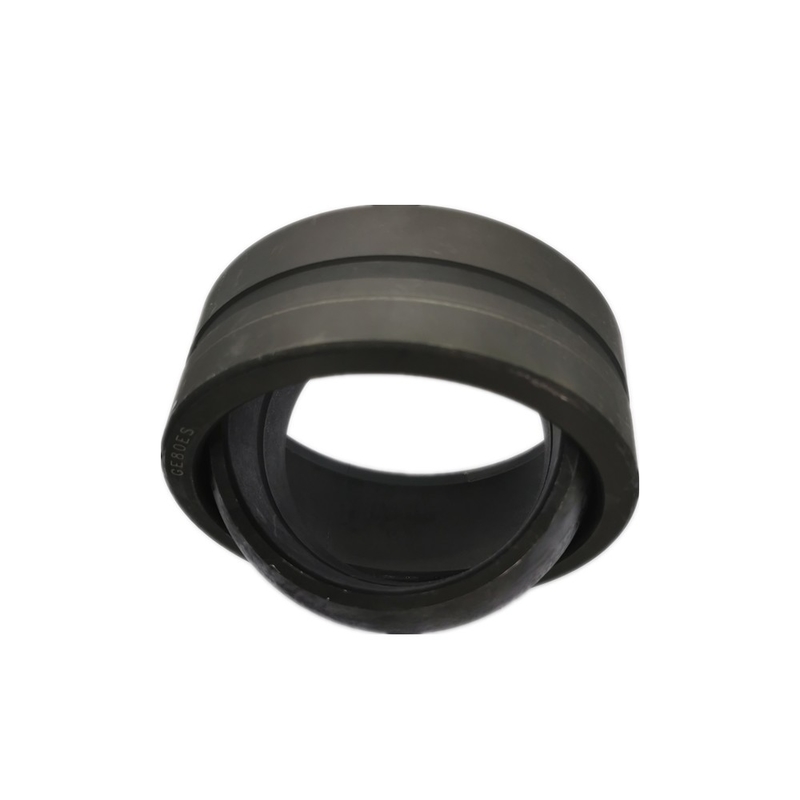

China Spherical Plain Joint Bearings GEM80ES-2RS GE80HO-2RS
Radial spherical plain bearings have an inner ring with a sphered convex outside surface and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be permitted at relatively slow sliding speeds. FSZ radial spherical plain bearings are available with different sliding contact surface combinations. The sliding surfaces of inner and outer ring are made from different materials. There are two main groups: spherical plain bearings requiring maintenance(steel-on-steel) and maintenance-free spherical plain bearings.
Design Characteristics of spherical plain bearing:
Large load capacity
Strong impact resistance
corrosion resistance
Wear proof
Self-aligning
Good lubrication
It can work properly even if displaced during installment
|
Part No. |
Dimensions |
Basis load |
Weight |
||||||||
|
d |
D |
B |
dk |
R1s |
R2s |
∝ |
Dynamic |
Static |
|||
|
GE5E |
|
5 |
14 |
6 |
10 |
0.3 |
0.3 |
13 |
3.4 |
17 |
0.0050 |
|
GE6E |
|
6 |
14 |
6 |
10 |
0.3 |
0.3 |
13 |
3.4 |
17 |
0.004 |
|
GE8E |
|
8 |
16 |
8 |
13 |
0.3 |
0.3 |
15 |
5.5 |
27.5 |
0.007 |
|
GE10E |
|
10 |
19 |
9 |
16 |
0.3 |
0.3 |
12 |
8.15 |
40.5 |
0.011 |
|
GE12E |
|
12 |
22 |
10 |
18 |
0.3 |
0.3 |
11 |
10.8 |
54 |
0.016 |
|
GE15ES |
GE15ES2RS |
15 |
26 |
12 |
22 |
0.3 |
0.3 |
8 |
17 |
85 |
0.026 |
|
GE16ES |
GE16ES2RS |
16 |
30 |
14 |
25 |
0.3 |
0.3 |
10 |
21.2 |
106 |
0.045 |
|
GE17ES |
GE17ES2RS |
17 |
30 |
14 |
25 |
0.3 |
0.3 |
10 |
21.2 |
106 |
0.041 |
|
GE20ES |
GE20ES2RS |
20 |
35 |
16 |
29 |
0.3 |
0.3 |
9 |
30 |
146 |
0.061 |
|
GR25ES |
GR25ES2RS |
25 |
42 |
20 |
35.5 |
0.6 |
0.6 |
7 |
48 |
240 |
0.11 |
|
GE30ES |
GE30ES2RS |
30 |
47 |
22 |
40.7 |
0.6 |
0.6 |
6 |
62 |
310 |
0.14 |
|
GE35ES |
GE35ES2RS |
35 |
55 |
25 |
47 |
0.6 |
1.0 |
6 |
80 |
400 |
0.22 |
|
GE40ES |
GE40ES2RS |
40 |
62 |
28 |
53 |
0.6 |
1.0 |
7 |
100 |
500 |
0.30 |
|
GE45ES |
GE45ES2RS |
45 |
68 |
32 |
60 |
0.6 |
1.0 |
7 |
127 |
640 |
0.41 |
|
GE50ES |
GE50ES2RS |
50 |
75 |
35 |
66 |
0.6 |
1.0 |
6 |
156 |
780 |
0.53 |
|
GE55ES |
GE55ES2RS |
55 |
85 |
40 |
74 |
0.6 |
1.0 |
7 |
200 |
1000 |
0.94 |
|
GE60ES |
GE60ES2RS |
60 |
90 |
44 |
80 |
1.0 |
1.0 |
6 |
245 |
1220 |
1.00 |
|
GE70ES |
GE70ES2RS |
70 |
105 |
49 |
92 |
1.0 |
1.0 |
6 |
315 |
1560 |
1.50 |
|
GE80ES |
GE80ES2RS |
80 |
120 |
55 |
105 |
1.0 |
1.0 |
6 |
400 |
2000 |
2.20 |
|
GE90ES |
GE90ES2RS |
90 |
130 |
60 |
115 |
1.0 |
1.0 |
5 |
490 |
2450 |
2.70 |
|
GE100ES |
GE100ES2RS |
100 |
150 |
70 |
130 |
1.0 |
1.0 |
7 |
610 |
3050 |
4.30 |
|
GE110ES |
GE110ES2RS |
110 |
160 |
70 |
140 |
1.0 |
1.0 |
6 |
655 |
3250 |
4.70 |
|
GE120ES |
GE120ES2RS |
120 |
180 |
85 |
160 |
1.0 |
1.0 |
6 |
950 |
4750.0 |
8.00 |
|
GE140ES |
GE140ES2RS |
140 |
210 |
90 |
180 |
1.0 |
1.0 |
7 |
1080 |
4750.0 |
11.00 |
|
GE160ES |
GE160ES2RS |
160 |
230 |
105 |
200 |
1.0 |
1.0 |
8 |
1360 |
4750.0 |
14.00 |
Product Application spherical plain bearings:::
01. Steel Industry
02. Mining & Construction
03. Paper Making Machinery
04. Wind Turbines
05. Semiconductors
06. Machine Tools
07. Gearboxes
08. Electric Motors
09. Pumps & Compressors
10. Office Equipment
11. Injection Molding
12. Motorcycles
13. Railways
14. Medical Devices
15. Food Processing Machinery
16. Agricultural Machinery
