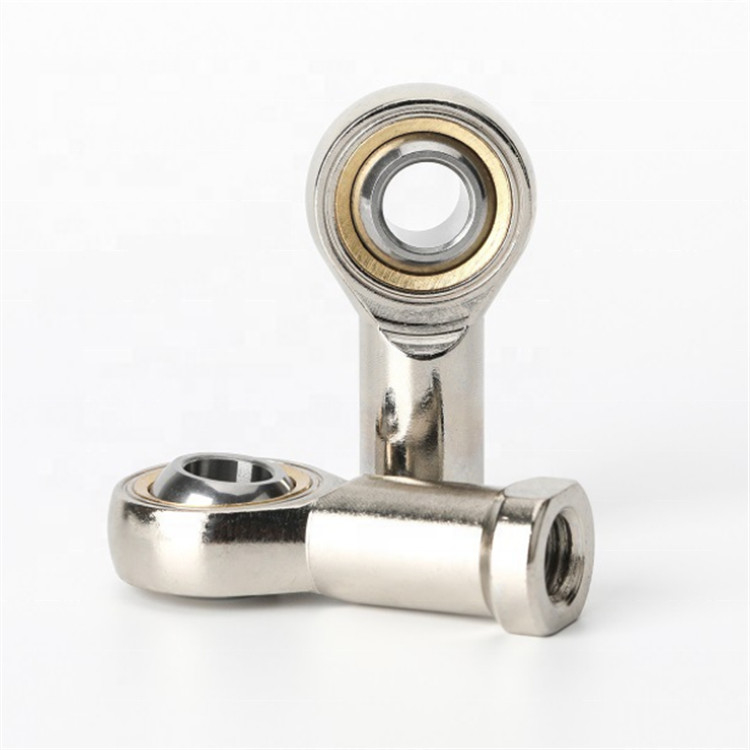

Stainless steel SI8 SA8 10T/K ball joint rod end bearings
Description of Stainless steel SI8 SA8 10T/K ball joint rod end bearings
A joint bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required. A ball swivel with an opening through which a bolt or other
attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.
Rod End Bearing PHS10L mainly bear radial load, but also can withstand a certain amount of axial load which has little friction, high limiting speed, many type of size and forms. It's suitable for precision instruments, low noise motors, automobiles, motorcycles and general machinery, the machinery industry, the most common kind of bearing.
The Rod End is a spherical slide bearing incorporating a spherical inner ring with precision and hardness equivalent to that of steel ball bearings. It provides very smooth rotating and oscillating motion without play.
Drawing and datasheet
| Requiring maintenance, steel-on-steel, female thread-GIR..DO, GIL..DO (SI..E, SIL..ES) | |||||||||||
| Part No. | Dimension (mm) | Mass | |||||||||
| Right | Left | d | d3 | B | C1 | L3 | S | d2 | (kg) | ||
| GIR5-DO | GIL5-DO | SI 5 E | SIL 5 E | 5 | M5X0.8 | 6 | 4.5 | 10 | 10 | 21 | 16 |
| GIR6-DO | GIL6-DO | SI 6 E | SIL 6 E | 6 | M6 | 6 | 4.4 | 11 | 11 | 21 | 0.021 |
| GIR8-DO | GIL8-DO | SI 8 E | SIL 8 E | 8 | M8 | 8 | 6 | 15 | 14 | 24 | 0.039 |
| GIR10-DO | GIL10-DO | SI 10 E | SIL 10 E | 10 | M10 | 9 | 7 | 20 | 17 | 29 | 0.061 |
| GIR12-DO | GIL12-DO | SI 12 E | SIL 12 E | 12 | M12 | 10 | 8 | 23 | 19 | 34 | 0.096 |
| GIR15-DO | GIL15-DO | SI 15 ES | SIL 15 ES | 15 | M14 | 12 | 10 | 30 | 22 | 40 | 0.18 |
| GIR17-DO | GIL17-DO | SI 17 ES | SIL 17 ES | 17 | M16 | 14 | 11 | 34 | 27 | 46 | 0.22 |
| GIR20-DO | GIL20-DO | SI 20 ES | SIL 20 ES | 20 | M20x1.5 | 16 | 13 | 40 | 32 | 53 | 0.35 |
| GIR25-DO | GIL25-DO | SI 25 ES | SIL 25 ES | 25 | M24x2 | 20 | 17 | 48 | 36 | 64 | 0.64 |
| GIR30-DO | GIL30-DO | SI 30 ES | SIL 30 ES | 30 | M30x2 | 22 | 19 | 56 | 41 | 73 | 0.93 |
| GIR35-DO | GIL35-DO | SI 35 ES | SIL 35 ES | 35 | M36x3 | 25 | 21 | 60 | 50 | 82 | 1.3 |
| GIR40-DO | GIL40-DO | SI 40 ES | SIL 40 ES | 40 | M39x3 | 28 | 23 | 65 | 55 | 92 | 2 |
| GIR45-DO | GIL45-DO | SI 45 ES | SIL 45 ES | 45 | M42x3 | 32 | 27 | 65 | 60 | 102 | 2.5 |
| GIR50-DO | GIL50-DO | SI 50 ES | SIL 50 ES | 50 | M45x3 | 35 | 30 | 68 | 65 | 112 | 3.5 |
| GIR60-DO | GIL60-DO | SI 60 ES | SIL 60 ES | 60 | M52x3 | 44 | 38 | 70 | 75 | 135 | 5.5 |
| GIR70-DO | GIL70-DO | SI 70 ES | SIL 70 ES | 70 | M56x3 | 49 | 42 | 80 | 85 | 160 | 8.6 |
Material:
Rod end of steel and zinc coated, with male or female thread, spherical surface with bronze liner, inner ring of carbon chromium steel, spherical surface with chromium plating, can be lubricated via a nipple or a hole in the rod end. It has characteristics of large load capability, easy mounting and dismounting and mechanism simplification.
