Product Details
Place of Origin: China
Brand Name: SFT
Model Number: POS16
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Thread Type: |
RH LH |
Hardness: |
60-64 |
Application: |
Industry, Machinery, Aviation, Agricultural, Precision |
Type: |
Rod End |
Precision Rating: |
P6 P5 P4 P2, P6 P5 P4 |
Cage: |
Steel,copper |
Thread Type: |
RH LH |
Hardness: |
60-64 |
Application: |
Industry, Machinery, Aviation, Agricultural, Precision |
Type: |
Rod End |
Precision Rating: |
P6 P5 P4 P2, P6 P5 P4 |
Cage: |
Steel,copper |

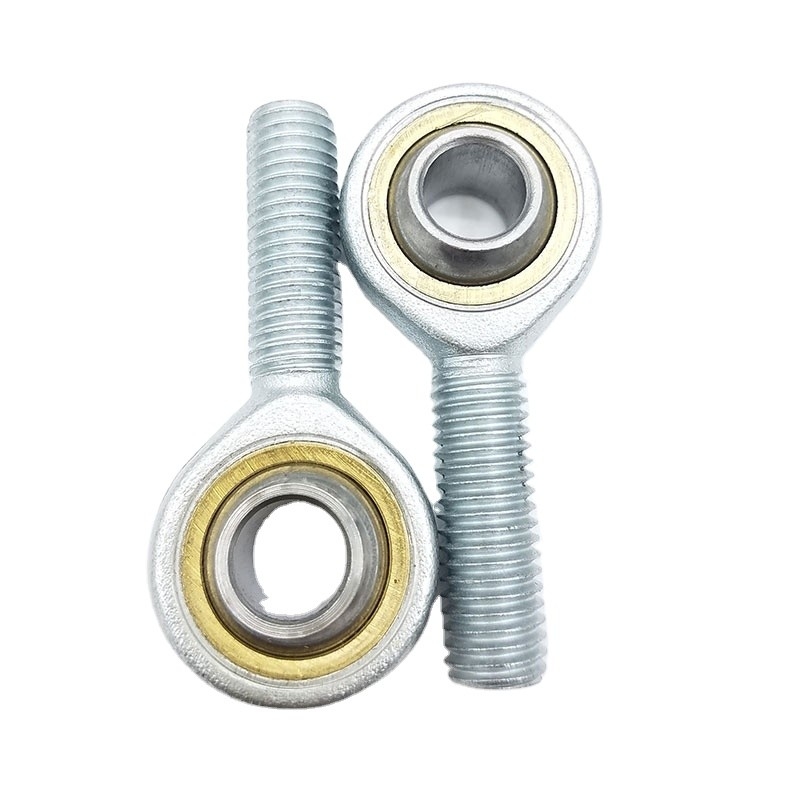

Stainless steel POS16 female rod end joint bearing
1.Features of rod end bearing
• Sliding contact surface: steel/PTFE
• Lubricating: Maintenance-free
• Housing: 304 stainless steel
• Inner ring: 420 stainless steel, heat treated HRC54-60
• Outer Ring: 304 stainless steel
• Liner: PTFE
2. Rod end bearing application
Rod end bearing are widely used in hydraulic engineering, metal forming machine, construction machinery, automation equipment, automotive shock absorber, water machinery sluice gate, navigation lock, textile machinery.
Drawing and datasheet
|
Dimension |
Load ratings |
|
|||||||||||||||
|
SPEC.1 |
d |
d2 |
d3 |
d4 |
d5 |
B |
C1 |
L3 |
L4 |
L5 |
W |
h1 |
dk |
a |
C |
C0 |
Weight |
|
5 |
18 |
M5x0.8 |
8.5 |
11 |
8 |
6 |
10 |
36 |
4 |
9 |
27 |
11.11 |
13 |
5.7 |
6 |
0.016 |
|
|
6 |
20 |
M6x1.0 |
10 |
13 |
9 |
6.75 |
12 |
40 |
5 |
11 |
30 |
12.7 |
13 |
7.2 |
7.65 |
0.022 |
|
|
8 |
24 |
M8x1.25 |
12.5 |
16 |
12 |
9 |
16 |
48 |
5 |
14 |
36 |
15.875 |
14 |
11.6 |
12.9 |
0.047 |
|
|
10 |
28 |
M10x1.5 |
15 |
19 |
14 |
10.5 |
20 |
57 |
6.5 |
17 |
43 |
19.05 |
13 |
14.5 |
18 |
0.077 |
|
|
10 |
28 |
M10x1.25 |
15 |
19 |
14 |
10.5 |
20 |
57 |
6.5 |
17 |
43 |
19.05 |
13 |
14.5 |
18 |
0.077 |
|
|
12 |
32 |
M12x1.75 |
17.5 |
22 |
16 |
12 |
22 |
66 |
6.5 |
19 |
50 |
22.225 |
13 |
17 |
24 |
0.1 |
|
|
12 |
32 |
M12x1.25 |
17.5 |
22 |
16 |
12 |
22 |
66 |
6.5 |
19 |
50 |
22.225 |
13 |
17 |
24 |
0.1 |
|
|
14 |
36 |
M14x2.0 |
20 |
25 |
19 |
13.5 |
25 |
75 |
8 |
22 |
57 |
25.4 |
16 |
24 |
31 |
0.16 |
|
|
14 |
36 |
M14x1.5 |
20 |
25 |
19 |
13.5 |
25 |
75 |
8 |
22 |
57 |
25.4 |
16 |
24 |
31 |
0.16 |
|
|
16 |
42 |
M16x2.0 |
22 |
27 |
21 |
15 |
28 |
85 |
8 |
22 |
64 |
28.575 |
15 |
28.5 |
39 |
0.22 |
|
