Product Details
Place of Origin: China
Brand Name: SFT
Model Number: LMF 80UU
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Vibration: |
Z1,Z2,Z3 |
Advantage: |
Quality. Competitive Price. Large |
Feature: |
Long Life |
Hardness: |
60-64 |
Precision Rating: |
P0 P6 P5 P4 P2 |
Material: |
Chrome Steel |
Vibration: |
Z1,Z2,Z3 |
Advantage: |
Quality. Competitive Price. Large |
Feature: |
Long Life |
Hardness: |
60-64 |
Precision Rating: |
P0 P6 P5 P4 P2 |
Material: |
Chrome Steel |

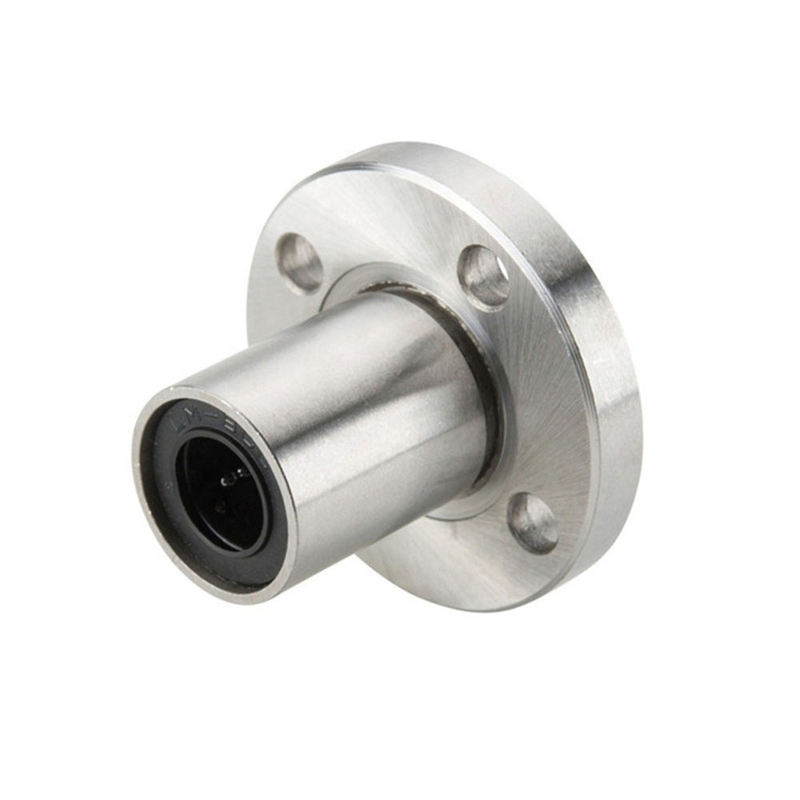

LMF series Circular Flanged Linear motion ball Bushing bearing
A linear-motion bearing or linear slide is a bearing designed to provide free motion in one direction. There are many different types of linear motion bearings.
Motorized linear slides such as machine slides, XY tables, roller tables and some dovetail slides are bearings moved by drive mechanisms. Not all linear slides are motorized, and non-motorized dovetail slides, ball bearing slides and roller slides provide low-friction linear movement for equipment powered by inertia or by hand. All linear slides provide linear motion based on bearings, whether they are ball bearings, dovetail bearings, linear roller bearings, magnetic or fluid bearings. XY Tables, linear stages, machine slides and other advanced slides use linear motion bearings to provide movement along both X and Y multiple axis.
Application of linear bearing:
- Linear Bearing is widely used in precision equipments, like electronic equipment, tension tester, etc.
- Linear Bearing is also widely used in automatic cutting machine, printer, card sorting machine, etc.
The linear ball bearing (also called ball bushing or shaft guiding) consists of a polymeric cage with raceway segments made of hardened steel to guide the ball sets within the complete system. Recirculating balls provide unlimited stroke at low friction movement.
1.Smooth movement,low friction,high rigidity and long life.
2.We can make non-standard linear bearing according to clients samples or drawings.
3.Prompt delivery and OEM service.
4.Nice appearance,complete product system.
Linear Bearings Model
| Flange Type | Ball rows | Weight g | Allow tolerance | Basic Load | ID mm | OD mm | L mm | |||
| Circular | Square | Oval | Dynamic | Static | ||||||
| LMF 6UU | LMK 6UU | LMH 6UU | 4 | 26.5 | -5 | 200 | 260 | 6 | 12 | 19 |
| LMF 8SUU | LMK 8SUU | 4 | 34 | -5 | 170 | 220 | 8 | 15 | 17 | |
| LMF 8UU | LMK 8UU | LMH 8UU | 4 | 40 | -5 | 260 | 400 | 8 | 15 | 24 |
| LMF 10UU | LMK 10UU | LMH 10UU | 4 | 78 | -5 | 370 | 540 | 10 | 19 | 29 |
| LMF 12UU | LMFK12UU | LMFH12UU | 4 | 76 | -5 | 410 | 590 | 12 | 21 | 30 |
| LMF 13UU | LMK 13UU | LMH 13UU | 4 | 94 | -7 | 500 | 770 | 13 | 23 | 32 |
| LMF 16UU | LMK 16UU | LMH 16UU | 5 | 134 | -7 | 770 | 1170 | 16 | 28 | 37 |
| LMF 20UU | LMK 20UU | LMH 20UU | 5 | 180 | -9 | 860 | 1370 | 20 | 32 | 42 |
| LMF 25UU | LMK 25UU | LMH 25UU | 6 | 340 | -9 | 980 | 1560 | 25 | 40 | 59 |
| LMF 30UU | LMK 30UU | LMH 30UU | 6 | 460 | -9 | 1560 | 2740 | 30 | 45 | 64 |
| LMF 35UU | LMK 35UU | 6 | 795 | -13 | 1660 | 3130 | 35 | 52 | 70 | |
| LMF 40UU | LMK 40UU | 6 | 1054 | -13 | 2150 | 4010 | 40 | 60 | 80 | |
| LMF 50UU | LMK 50UU | 6 | 2200 | -13 | 3820 | 7930 | 50 | 80 | 100 | |
| LMF 60UU | LMK 60UU | 6 | 2960 | -16 | 4700 | 9990 | 60 | 90 | 110 | |
| LMF 80UU | LMK 80UU | 6 | 5800 | -20 | 7350 | 16000 | 80 | 120 | 140 | |
| LMF 100UU | LMK 100UU | 6 | 10600 | -30 | 14100 | 34800 | 100 | 150 | 175 | |
