Product Details
Place of Origin: China
Brand Name: SFT
Model Number: 23022 CC
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Hardness: |
HRC58-62 |
Clearance: |
CN,C2, C3,C4,C5 |
Material: |
Chrome Steel GCr15 |
Type: |
Spherical Roller Bearing |
Number Of Row: |
DOUBLE ROW |
Structure: |
Spherical |
Hardness: |
HRC58-62 |
Clearance: |
CN,C2, C3,C4,C5 |
Material: |
Chrome Steel GCr15 |
Type: |
Spherical Roller Bearing |
Number Of Row: |
DOUBLE ROW |
Structure: |
Spherical |

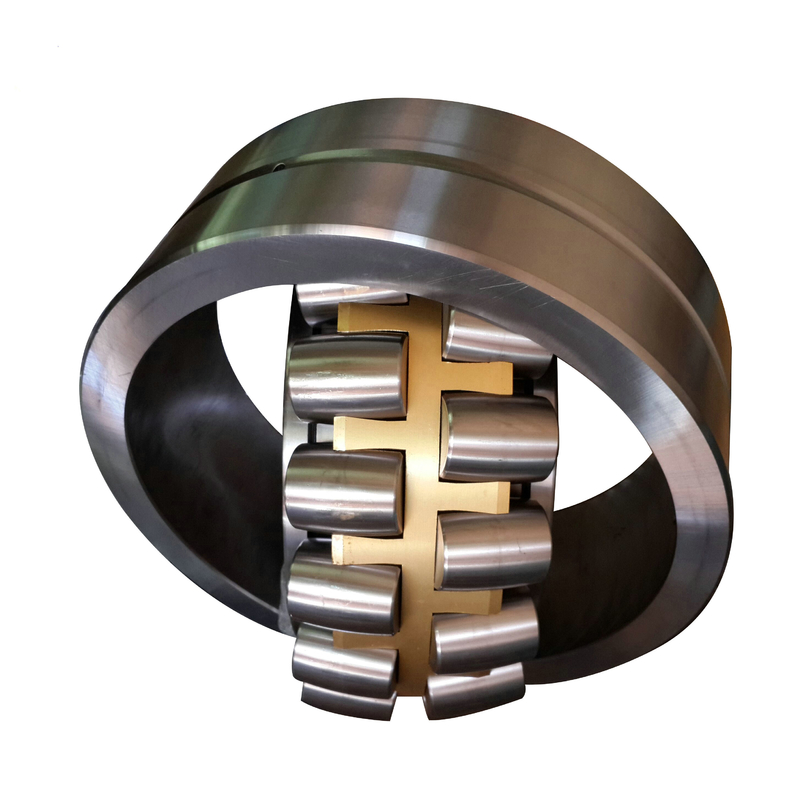

Thrust spherical roller bearing 23022 CC CA MB K /W33
Spherical Roller Bearing main uses: Gearboxes, Instrumentation, Motors, Vehicles, Agricultural Machinery, Construction Machinery, Roller Roller Skates, Engineering Machinery,etc.
Our Bearing Advantage:
1.Free Sample bearing
2.ISO Standard
3.In Stock bearing
4.Bearing Small order accepted
5.Customized bearing, Customer’s bearing drawing or samples accepted
6.Competitive price bearing
Model: 20000CC, 20000CCK, 20000CC/W33, 20000CCK/W33, 20000CCK+H0000, 20000CCK/W33+H0000
Application: Precision instrument, Low noise motor, Automobile, motorcycle and other machines.
Description: Spherical roller bearing has two columns of roller, mainly endure radial load and also withstand any direction of axial load at the same time. This kind of bearing own a high capacity of radial load especially suitable for heavy load or vibration, but can’t bear pure axial load , The outer ring groove of this bearing is spherical, so it's favorable in regulating the heart. Spherical roller bearings and self-aligning ball bearing are the same at the structure theory and character, so they can substitute each other in the permission of load capacity and speed limit.
Size Information of spherical roller bearing:
Bearing No. | Dimensions | Load ratings | Weight | |||||
d | D | B | r | Dynamic | Static | |||
Cylindrical bore | Tapered bore | mm | min | Cr (kN) | C0r (kN) | kg | ||
21304 CC | - | 20 | 52 | 15 | 1.1 | 30.8 | 31.2 | 0.18 |
21305 CC | - | 25 | 62 | 17 | 1.1 | 41 | 41 | 0.25 |
21306 CC | - | 30 | 72 | 19 | 1.1 | 55 | 60 | 0.38 |
21307 CC | - | 35 | 80 | 21 | 1.5 | 64 | 71 | 0.51 |
21308 CC | 21308 CCK | 40 | 90 | 23 | 1.5 | 80 | 96 | 0.71 |
21309 CC | 21309 CCK | 45 | 100 | 25 | 1.5 | 100 | 115 | 0.95 |
21310 CC | 21310 CCK | 50 | 110 | 27 | 2.0 | 115 | 132 | 1.00 |
21311 CC | 21311 CCK | 55 | 120 | 29 | 2.0 | 135 | 163 | 2.00 |
21312 CC | 21312 CCK | 60 | 130 | 31 | 2.1 | 161 | 210 | 1.95 |
21313 CC | 21313 CCK | 65 | 140 | 33 | 2.1 | 184 | 240 | 2.45 |
21314 CC | 21314 CCK | 70 | 150 | 35 | 2.1 | 207 | 260 | 3.00 |
21315 CC | 21315 CCK | 75 | 160 | 37 | 2.1 | 236 | 300 | 3.55 |
21316 CC | 21316 CCK | 80 | 170 | 39 | 2.1 | 255 | 335 | 4.20 |
21317 CC | 21317 CCK | 85 | 180 | 41 | 3.0 | 293 | 375 | 5.00 |
21318 CC | 21318 CCK | 90 | 190 | 43 | 3.0 | 322 | 425 | 5.80 |
21319 CC | 21319 CCK | 95 | 200 | 45 | 3.0 | 351 | 480 | 7.15 |
21320 CC | 21320 CCK | 100 | 215 | 47 | 3.0 | 385 | 530 | 8.80 |
21322 CC | 21322 CCK | 110 | 240 | 50 | 3.0 | 460 | 630 | 12.00 |
