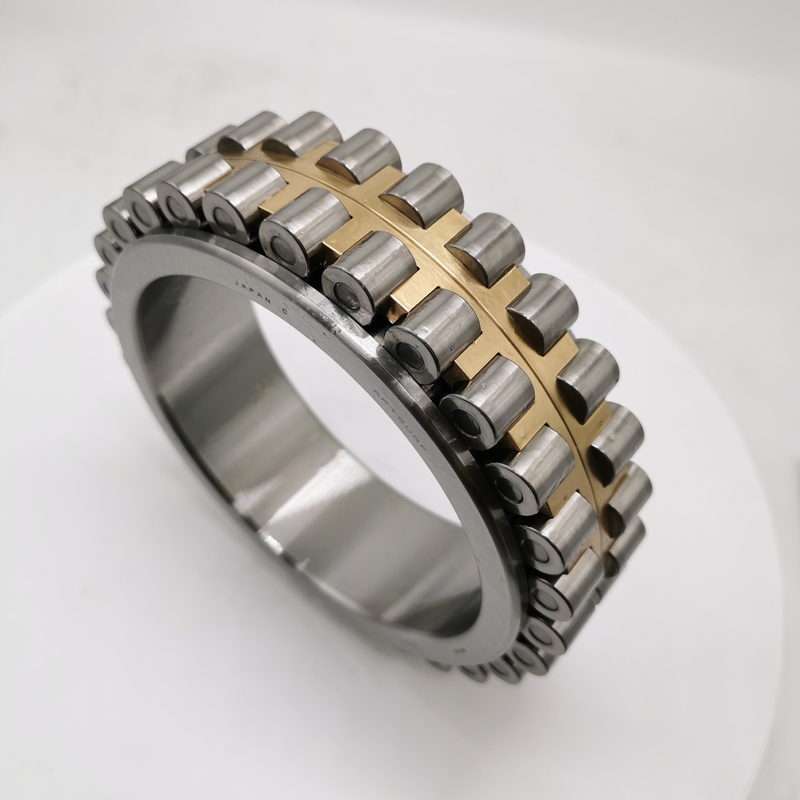

Double Row Cylindrical Roller Bearing OD 40mm Spindle

Cylindrical Roller Bearing NN3024MBKRCC1P4 Spindle Bearing

Introduction about Original Import Cylindrical Roller Bearing NN3024KC9NA  Spindle Bearing NN3024MBKRCC1P4 :

double row cylindrical roller bearing’s rigidity makes them a perfect match for use in machine tool spindles. Tipically,single row and double row cylindrical roller bearings have either bore or a tapered bore. Double row culindrical roller bearings with a tapered bore are often mounted to the main shaft as a fixedend bearing.Simplicity in design and the ability to adjust radial internal clearance after mounting continue to make these bearings populor among machine tool users .

Users can request and E44 configuration,which includes both lubrication holes and a machined lubrication groove on the outside surface of the outer ring. Types of bearings include the NNU type, which feathures double ribbed outer rings, and the NN type,which features excellent grease discharge during the initial running-in period,and helps promote steady oil flow throught the bearing.

For thin section type bearings , the narrower NN39 series is more suitable than the wider NN49 series due to less heat generation and greater roller stability.Machined brass cages are most common wth cylindrical roller bearings. offers a roller guide pps resin cage for the NN30 series, and a PEEK resin cage, which is guided by the outer ring, for N10 series series of ultra high-speed single-row cylindrical roller bearings.

Applications of High speed Cylindrical Roller Bearing :

Motor, machine tools, petroleum, mill handling machinery and various industrial machinery.

cylindrical roller bearing model number:
