Product Details
Place of Origin: China
Brand Name: SFT
Model Number: SL04 5010 PP
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Type: |
Roller |
Outside Diameter: |
0 - 80 Mm |
Inside Diameter: |
25mm |
Bore Size: |
24mm |
Cage: |
Steel Cage.Brass Cage.Nylon Cage |
Feature: |
Long Life Low Noise |
Type: |
Roller |
Outside Diameter: |
0 - 80 Mm |
Inside Diameter: |
25mm |
Bore Size: |
24mm |
Cage: |
Steel Cage.Brass Cage.Nylon Cage |
Feature: |
Long Life Low Noise |

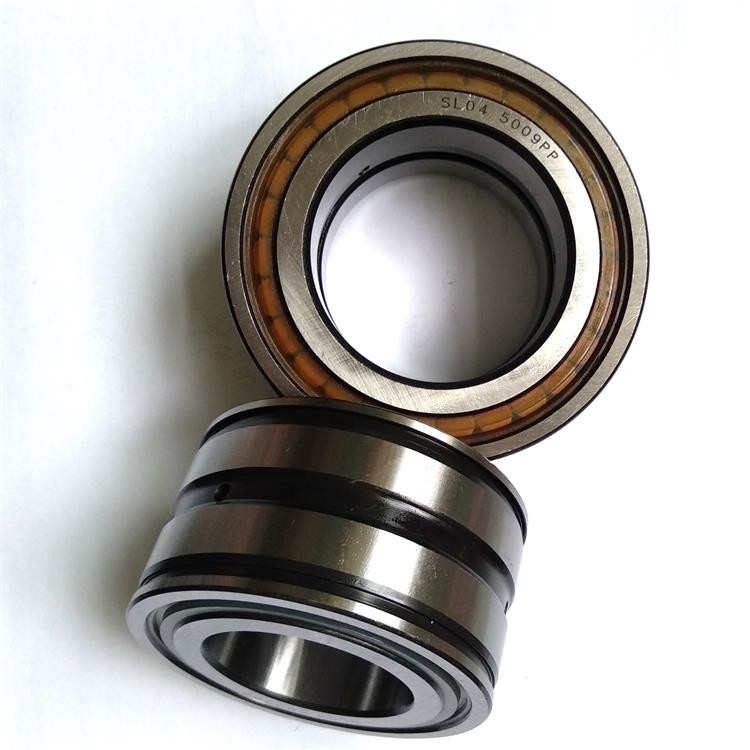

Full Complement Cylindrical Roller Bearing SL04 5010 PP
Product description :
The cylindrical roller bearing is a detachable bearing facilitating assembly and disassembly.The cylindrical roller is in the linear contact with the bearing race and has a large loading capacity,capable of carrying large radial and punching loads and applicable to high-speed rotation.
There are different types designated as NU, NJ, NUP, N, NF (for single-row bearings), NNU, and NN (for double-row bearings depending on the design or absence of side ribs).
Cylindrical roller bearing features:
1. Roller and roller way for line contact or repair referrals contact, radial bearing capacity is big, is designed to withstand heavy loads and shock load.
2. Small friction coefficient, suitable for high speed, limit speed close to deep groove ball bearing.
3. N type and NU type can be axial movement, can adapt for thermal expansion or installation error caused by the shaft and housing relative position change, can make free end bearing use.
4. For shaft or seat hole processing the demand is higher, after installation bearing outer axis relative deviation to kept under strict control, so as to avoid the contact stress concentration.
5. The outer and inner rings of all types are separable and easy to install and remove.
| bearing No. | Boundary Dimensions (mm) | Basic Load Rating (KN) | Mass | |||||
| d | D | B | C | Co | kg | |||
| N408M | NU408M | NJ408M | 40 | 110 | 27 | 90.5 | 89.8 | 1.15 |
| N409M | NU409M | NJ409M | 45 | 120 | 29 | 102.0 | 100.0 | 1.77 |
| N410M | NU410M | NJ410M | 50 | 130 | 31 | 120.0 | 120.0 | 2.26 |
| N411M | NU411M | NJ411M | 55 | 140 | 33 | 145.0 | 141.0 | 2.95 |
| N412M | NU412M | NJ412M | 60 | 150 | 35 | 148.0 | 144.0 | 3.20 |
| N413M | NU413M | NJ413M | 65 | 160 | 37 | 185.0 | 191.0 | 3.92 |
| N414M | NU414M | NJ414M | 70 | 180 | 42 | 205.0 | 210.0 | 6.40 |
| N415M | NU415M | NJ415M | 75 | 190 | 45 | 254.0 | 265.0 | 7.03 |
| N416M | NU416M | NJ416M | 80 | 200 | 48 | 275.0 | 284.0 | 8.25 |
| N417M | NU417M | NJ417M | 85 | 210 | 52 | 312.0 | 325.0 | 9.50 |
| N418M | NU418M | NJ418M | 90 | 225 | 54 | 350.0 | 360.0 | 11.00 |
| N419M | NU419M | NJ419M | 95 | 240 | 55 | 400.0 | 445.0 | 13.60 |
| N420M | NU420M | NJ420M | 100 | 250 | 58 | 450.0 | 500.0 | 15.50 |
