Product Details
Place of Origin: China
Brand Name: SFT
Model Number: NKI75/35
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Bore Size: |
19.99 - 20 Mm |
Seals Type: |
Open |
Size: |
40*47*30 Mm |
Number Of Row: |
Single Row |
Precision Rating: |
P0,P4,P6 |
Cage: |
Steel Cage.Brass Cage.Nylon Cage |
Bore Size: |
19.99 - 20 Mm |
Seals Type: |
Open |
Size: |
40*47*30 Mm |
Number Of Row: |
Single Row |
Precision Rating: |
P0,P4,P6 |
Cage: |
Steel Cage.Brass Cage.Nylon Cage |

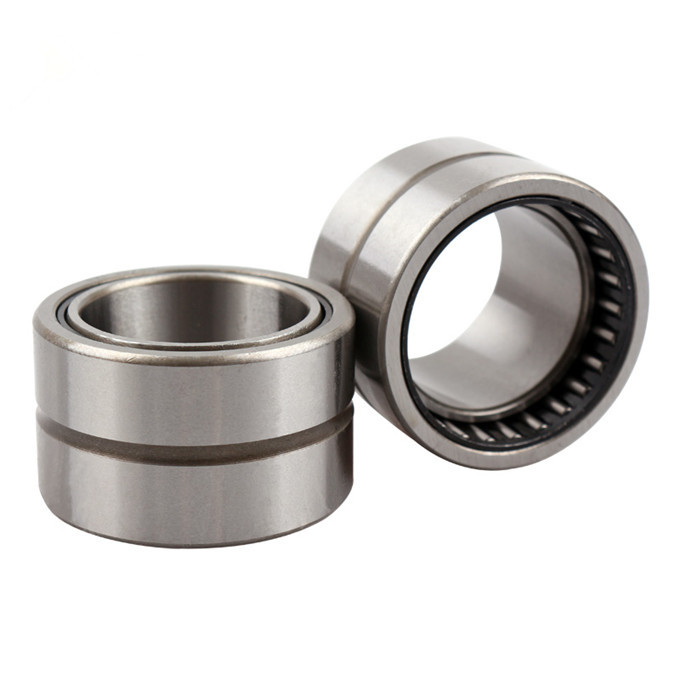

flat cage NKI series 75*105*35mm needle roller bearing
About needle bearing manufacturing:
Needle roller bearing is a bearing unit composed of machined outer ring & inner ring,cage and
needle roller assembly featuring small section height,big load capacity & rigidity,compact
structure and small size,high rotating accuracy with the structure of disposed inner ring.
Needle roller bearing is characterized by multiple structures,broad adaptability and easy
installation.
It is widely used in automobile,machine toll,lathe,metallurgical,textile,printing industry and
etc. Various machinery equipment. With this kind of bearing,machine design can realize the
goal of small-scale & light weight.
Design Attributes:
· Integral seals
· Side flanges (or separate end washers)
· Inner rings
· Oil holes
· Single or double caged sets (or full complement) of rollers
Applications:
· Transmissions, transfer cases, engines and valve trains
· Steering and braking systems
· Axle support
· Outboard engines
· Power tools
· Copiers, fax machines, paper-moving equipment
| Model | d(mm) | F(mm) | D(mm) | B(mm) |
| NKI9/12 | 9 | 12 | 19 | 12 |
| NKI10/16 | 10 | 14 | 22 | 16 |
| NKI12/16 | 12 | 16 | 24 | 16 |
| NKI12/20 | 12 | 16 | 24 | 20 |
| NKI15/16 | 15 | 19 | 27 | 16 |
| NKI15/20 | 15 | 19 | 27 | 20 |
| NKI17/16 | 17 | 21 | 29 | 16 |
| NKI17/20 | 17 | 21 | 29 | 20 |
| NKI20/16 | 20 | 24 | 32 | 16 |
| NKI20/20 | 20 | 24 | 32 | 20 |
| NKI22/16 | 22 | 26 | 34 | 16 |
| NKI22/20 | 22 | 26 | 34 | 20 |
| NKI25/20 | 25 | 29 | 38 | 20 |
| NKI25/30 | 25 | 29 | 38 | 30 |
| NKI28/20 | 28 | 32 | 42 | 20 |
| NKI28/30 | 28 | 32 | 42 | 30 |
| NKI30/20 | 30 | 35 | 45 | 20 |
| NKI30/30 | 30 | 35 | 45 | 30 |
| NKI32/20 | 32 | 37 | 47 | 20 |
| NKI32/30 | 32 | 37 | 47 | 30 |
| NKI35/20 | 35 | 40 | 50 | 20 |
| NKI35/30 | 35 | 40 | 50 | 30 |
| NKI38/20 | 38 | 43 | 53 | 20 |
| NKI38/30 | 38 | 43 | 53 | 30 |
| NKI40/20 | 40 | 45 | 55 | 20 |
| NKI40/30 | 40 | 45 | 55 | 30 |
| NKI42/20 | 42 | 47 | 57 | 20 |
| NKI42/30 | 42 | 47 | 57 | 30 |
| NKI45/25 | 45 | 50 | 62 | 25 |
| NKI45/35 | 45 | 50 | 62 | 35 |
| NKI50/25 | 50 | 55 | 68 | 25 |
| NKI50/35 | 50 | 55 | 68 | 35 |
| NKI55/25 | 55 | 60 | 72 | 25 |
| NKI55/35 | 55 | 60 | 72 | 35 |
| NKI60/25 | 60 | 68 | 82 | 25 |
| NKI60/35 | 60 | 68 | 82 | 35 |
| NKI65/25 | 65 | 73 | 90 | 25 |
| NKI65/35 | 65 | 73 | 90 | 35 |
| NKI70/25 | 70 | 80 | 95 | 25 |
| NKI70/35 | 70 | 80 | 95 | 35 |
| NKI75/25 | 75 | 85 | 105 | 25 |
| NKI75/35 | 75 | 85 | 105 | 35 |
| NKI80/25 | 80 | 90 | 110 | 25 |
| NKI80/35 | 80 | 90 | 110 | 35 |
| NKI85/26 | 85 | 95 | 115 | 26 |
| NKI85/36 | 85 | 95 | 115 | 36 |
| NKI90/26 | 90 | 100 | 120 | 26 |
| NKI90/36 | 90 | 100 | 120 | 36 |
| NKI95/26 | 95 | 105 | 125 | 26 |
| NKI95/36 | 95 | 105 | 125 | 36 |
| NKI100/30 | 100 | 110 | 130 | 30 |
| NKI100/40 | 100 | 110 | 130 | 40 |
