Product Details
Place of Origin: China
Brand Name: SFT
Model Number: NKIS10
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Bearing Model: |
NKIS10 |
Sample: |
Avaliable |
Weight: |
54g |
Type: |
Needle |
Precision Rating: |
P0,P4,P6 |
Cage: |
Steel Cage.Brass Cage.Nylon Cage |
Bearing Model: |
NKIS10 |
Sample: |
Avaliable |
Weight: |
54g |
Type: |
Needle |
Precision Rating: |
P0,P4,P6 |
Cage: |
Steel Cage.Brass Cage.Nylon Cage |

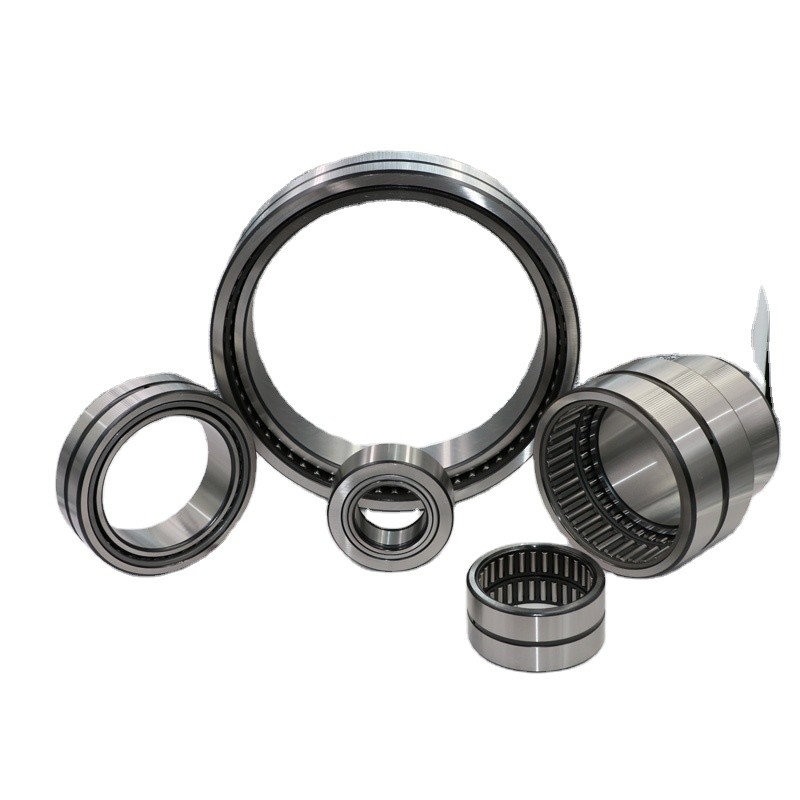

NKIS series Needle roller bearing with double ribs and lock rings
Needle roller bearings have a high load carrying capacity in addition to their low corss-section and stiffness. They are especially suitable for bearing arrangements where radial space is limited. Because needle roller bearings only carry pure radial load and can not limit the axial displacement of shaft relative to the housing. It is important to ensure that inner ring axis and outer ring axis must be aligned during mounting the bearings.
| Bearing code | Structure feature |
| HK | Perforated type drawn cup needle roller bearing |
| HK...RS | Perforated type drawn cup needle roller bearing one side with seal |
| HK...2RS | Perforated type drawn cup needle roller bearing two sides with seal |
| BK | Perforated type drawn cup needle roller bearing |
| BK...RS | Perforated type drawn cup needle roller bearing one side with seal |
| F | Perforated type drawn cup full needle roller bearing |
| FY | Perforated type drawn cup full needle roller bearing(Grease Limit) |
| MF | Closed drawn cup full needle roller bearing |
| MFY | Closed drawn cup full needle roller bearing (Grease Limit) |
Needle roller bearing index:
Drawn cup needle roller bearings, HK, BK, HK 2RS, BK RS
Drawn cup needle roller bearings, TA, TLA
Drawn cup needle roller bearings, Inch size SCE, BCE...
Drawn cup needle roller bearings full complement, F, MF
Drawn cup needle roller clutch, HF, HFL
Needle roller and cage assemblies, K, K...ZW
Needle roller and cage assemblies, rod use KZK, KBK
Needle roller bearings without inner ring, NK, RNA, NKS
Needle roller bearings, NKI, NA
Needle roller bearings, flanges, without inner ring, RNAO, RNAO, ZW
Needle roller bearings, flanges, with inner ring, NAO...ZW
Needle roller bearings without inner ring full complement, RNAV
Needle roller bearings with inner ring full complement, NAV
Axial thrust needle roller and cage assemblies, AXK, AXW
Axial thrust needle roller and cage assemblies, inch size TC
|
Bearing Designation
|
Boundary Dimensions(mm)
|
Basic Load Rating(N)
|
Limiting Speed(Rpm)
|
Mass(g)
|
||||
|
|
d
|
FW
|
D
|
B
|
Cr
Dynamic |
cor
Static |
Greas
|
Approx
|
|
NKIS 6
|
6
|
10
|
19
|
13
|
5800
|
6000
|
29000
|
28
|
|
NKIS 7
|
7
|
12
|
22
|
16
|
9600
|
10400
|
26000
|
41
|
|
NKIS 8
|
8
|
14
|
25
|
16
|
14400
|
13800
|
24000
|
46
|
|
NKIS 9
|
9
|
15
|
26
|
16
|
14400
|
14000
|
23000
|
50
|
|
NKIS 10
|
10
|
16
|
28
|
16
|
15700
|
15800
|
22000
|
54
|
|
NKIS 12
|
12
|
18
|
30
|
16
|
16800
|
17700
|
21000
|
58
|
|
NKIS 15
|
15
|
22
|
35
|
20
|
23500
|
24000
|
17000
|
90
|
|
NKIS 17
|
17
|
24
|
37
|
20
|
26000
|
31000
|
17000
|
98
|
|
NKIS 20
|
20
|
28
|
42
|
20
|
26500
|
35500
|
14000
|
119
|
|
NKIS 25
|
25
|
32
|
47
|
22
|
32000
|
55000
|
12500
|
160
|
|
NKIS 30
|
30
|
37
|
52
|
22
|
36500
|
50000
|
12000
|
180
|
|
NKIS 35
|
35
|
43
|
58
|
22
|
33000
|
56000
|
9500
|
210
|
|
NKIS 40
|
40
|
50
|
65
|
22
|
42500
|
67000
|
9000
|
280
|
|
NKIS 45
|
45
|
55
|
72
|
22
|
45000
|
74000
|
8000
|
306
|
|
NKIS 50
|
50
|
60
|
80
|
28
|
63000
|
98000
|
7500
|
510
|
|
NKIS 55
|
55
|
65
|
85
|
28
|
67000
|
108000
|
7000
|
535
|
|
NKIS 60
|
60
|
70
|
90
|
28
|
68000
|
113000
|
6500
|
550
|
|
NKIS 65
|
65
|
75
|
95
|
28
|
71000
|
123000
|
6000
|
641
|
|
NKIS 70
|
70
|
80
|
100
|
28
|
75000
|
133000
|
5500
|
750
|
