Retainer Assembly Cylindrical One Way Needle Bearing Radial Structure Grease Lubrication

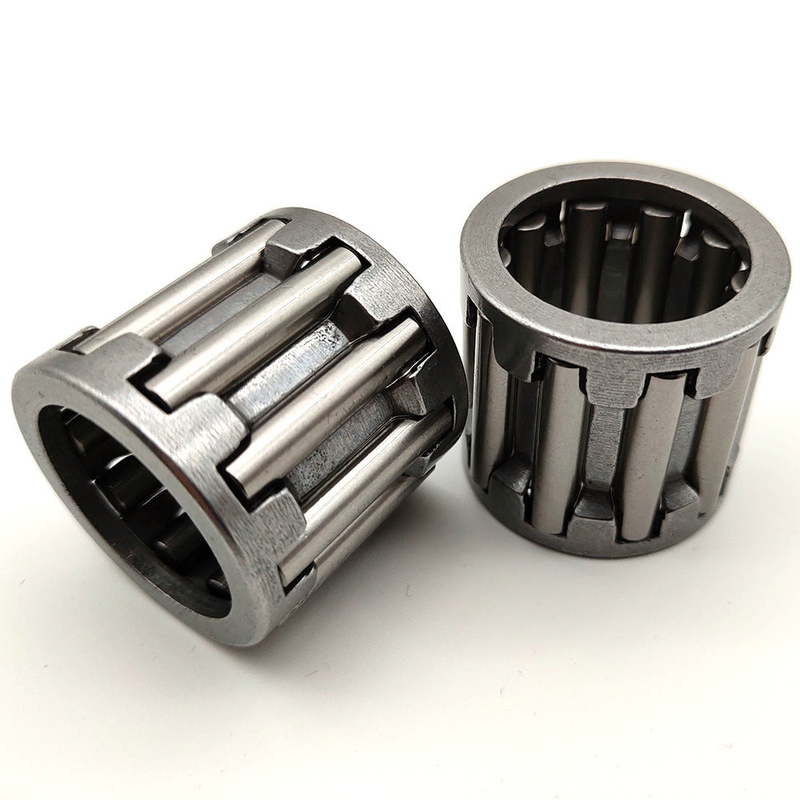

K series retainer assembly needle roller bearing K15*19*17

Needle Bearing

Needle bearing is a roller bearing with a cylindrical roller, which is thin and long relative to its diameter.This roller is called a needle roller.Although has a small cross-section, bearing still has high load capacity, needle bearing with fine and long roller (roller diameter D 5 mm or less, acuity 2.5 L/D, L) for the roller length, so the radial structure is compact, its diameter and load capacity at the same time, with other types of bearing outside diameter to a minimum, especially suitable for the limited size of the radial installation supporting structure.

Type

(1) closed punching outer ring needle roller bearing(

(2) needle roller bearing with inner ring

(3) needle roller bearing without inner ring/needle bearing without inner ring without retaining frame

(4) full needle roller bearing with and without a cage

(5) also can supply various types of needle roller bearing, 1, 2 needle cage components, no guard the needle roller bearing 3, can make 4, combined needle roller / 5, combined needle roller bearing/thrust ball bearings

(6) Combined needle/cylinder roller thrust bearing.

Advantages

Needle bearing with fine and long roller (3 ~ 10 times the diameter of the roller length is, no more than 5 mm in diameter), so the radial structure is compact, its diameter and load capacity at the same time, with other types of bearing outside diameter to a minimum, especially suitable for the limited size of the radial installation supporting structure.The processing precision and surface quality of needle roller bearing should be combined with bearing sleeve and application according to different usage.Needle roller bearing is a bearing unit composed of a core needle bearing and a thrust bearing component.

Needle roller bearings size:

Dimensions			Mass	Designation
Fw (d)	Ew(D)	U(B)
mm	mm	mm	g	–
55	63	25	80	K 55x63x25
55	63	32	100	K 55x63x32
58	65	18	52	K 58x65x18
58	65	36	130	K 58x65x36 ZW
60	65	20	52	K 60x65x20
60	65	30	77	K 60x65x30
60	66	33	100	K 60x66x33 ZW
60	66	40	120	K 60x66x40 ZW
60	68	20	71	K 60x68x20
60	68	23	94	K 60x68x23
60	68	25	89	K 60x68x25
60	68	30	130	K 60x68x30 ZW
60	75	42	240	K 60x75x42
62	70	40	170	K 62x70x40 ZW
64	70	16	53	K 64x70x16
65	70	20	56	K 65x70x20
65	70	30	83	K 65x70x30
65	73	23	110	K 65x73x23
65	73	30	140	K 65x73x30
68	74	20	71	K 68x74x20
68	74	30	100	K 68x74x30
68	74	35	120	K 68x74x35 ZW
70	76	20	71	K 70x76x20
70	76	30	110	K 70x76x30
70	78	30	150	K 70x78x30
72	80	20	98	K 72x80x20
73	79	20	75	K 73x79x20
75	81	20	79	K 75x81x20
75	81	30	110	K 75x81x30
75	83	23	120	K 75x83x23
75	83	30	150	K 75x83x30
75	83	35	182	K 75x83x35 ZW
75	83	40	211	K 75x83x40 ZW
80	86	20	60	K 80x86x20
80	88	30	140	K 80x88x30
80	88	40	227	K 80x88x40 ZW
80	88	46	260	K 80x88x46 ZW
85	92	20	100	K 85x92x20
90	97	20	110	K 90x97x20
90	98	27	150	K 90x98x27
90	98	30	170	K 90x98x30
95	103	30	170	K 95x103x30
95	103	40	266	K 95x103x40 ZW
100	107	21	120	K 100x107x21
100	108	27	190	K 100x108x27
100	108	30	180	K 100x108x30
105	112	21	130	K 105x112x21
110	117	24	170	K 110x117x24
110	118	30	220	K 110x118x30
115	123	27	200	K 115x123x27
120	127	24	170	K 120x127x24
125	133	35	280	K 125x133x35
130	137	24	170	K 130x137x24
135	143	35	300	K 135x143x35
145	153	26	260	K 145x153x26
150	160	46	570	K 150x160x46
155	163	26	270	K 155x163x26
160	170	46	550	K 160x170x46
165	173	26	320	K 165x173x26
175	183	32	400	K 175x183x32
185	195	37	610	K 185x195x37
195	205	37	620	K 195x205x37
210	220	42	740	K 210x220x42
220	230	42	790	K 220x230x42
240	250	42	850	K 240x250x42
265	280	50	1 800	K 265x280x50
