Product Details
Place of Origin: China
Brand Name: SFT
Model Number: NATR5
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Lubrication: |
Grease Lubrication |
Structure: |
General |
Vibration: |
V1 V2 V3 V4 |
Number Of Row: |
Single Row |
WEIGHT: |
0.0140 Kg |
Seals Type: |
No Seal |
Lubrication: |
Grease Lubrication |
Structure: |
General |
Vibration: |
V1 V2 V3 V4 |
Number Of Row: |
Single Row |
WEIGHT: |
0.0140 Kg |
Seals Type: |
No Seal |

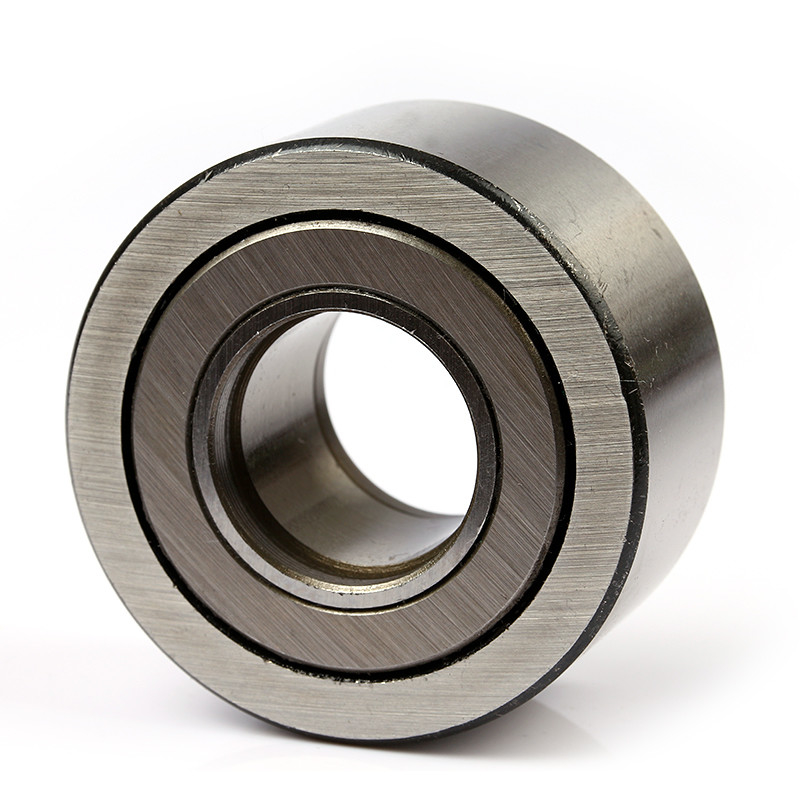

NATR series high quality roller bearing NATR5 size 5x16x12mm
Product Description:
Needle roller bearing with inner ring
Needle roller bearing used for general engineer
1.open type drawn cup needle roller bearing(1)
2.closed type drawn cup needle roller bearing(2)
3.needle roller bearing with inner ring(3)
4.needle roller bearing without inner ring/ needle roller bearing without inner ring and cage(4)
5. full needle roller bearing with cage or without cage(5)
Needle bearing index:
Drawn cup needle roller bearings, HK, BK, HK 2RS, BK RS
Drawn cup needle roller bearings, TA, TLA
Drawn cup needle roller bearings, Inch size SCE, BCE...
Drawn cup needle roller bearings full complement, F, MF
Drawn cup needle roller clutch, HF, HFL
Needle roller and cage assemblies, K, K...ZW
Needle roller and cage assemblies, rod use KZK, KBK
Needle roller bearings without inner ring, NK, RNA, NKS
Needle roller bearings, NKI, NA
Needle roller bearings, flanges, without inner ring, RNAO, RNAO, ZW
Needle roller bearings, flanges, with inner ring, NAO...ZW
Needle roller bearings without inner ring full complement, RNAV
Needle roller bearings with inner ring full complement, NAV
Axial thrust needle roller and cage assemblies, AXK, AXW
Axial thrust needle roller and cage assemblies, inch size TC
NATR / NATV Yoke Track Roller
| C&H | C&H | d | D | B | C | d1 | r min | Cr | Cor | Speed | Mass |
| with seals | w/t seals | mm | mm | mm | mm | mm | mm | kN | kN | rpm | kg |
| NATR5PP | NATR5 | 5 | 16 | 12 | 11 | 12 | 0.15 | 3.14 | 3.2 | 6000 | 0.014 |
| NATV5PP | NATV5 | 5 | 16 | 12 | 11 | 12 | 0.15 | 4.73 | 6.55 | 4300 | 0.015 |
| NATR6PP | NATR6 | 6 | 19 | 12 | 11 | 14 | 0.15 | 3.47 | 3.8 | 5600 | 0.02 |
| NATV6PP | NATV6 | 6 | 19 | 12 | 11 | 14 | 0.15 | 5.28 | 8 | 4000 | 0.021 |
| NATR8PP | NATR8 | 8 | 24 | 15 | 14 | 17.5 | 0.3 | 5.28 | 6.1 | 5000 | 0.041 |
| NATV8PP | NATV8 | 8 | 24 | 15 | 14 | 17.5 | 0.3 | 7.48 | 11.4 | 3600 | 0.042 |
| NATR10PP | NATR10 | 10 | 30 | 15 | 14 | 23.5 | 0.6 | 6.44 | 8 | 4800 | 0.064 |
| NATV10PP | NATV10 | 10 | 30 | 15 | 14 | 23.5 | 0.6 | 8.97 | 14.6 | 3200 | 0.065 |
| NATR12PP | NATR12 | 12 | 32 | 15 | 14 | 25.5 | 0.6 | 6.6 | 8.5 | 4500 | 0.071 |
| NATV12PP | NATV12 | 12 | 32 | 15 | 14 | 25.5 | 0.6 | 9.35 | 15.3 | 3000 | 0.072 |
| NATR15PP | NATR15 | 15 | 35 | 19 | 18 | 29 | 0.6 | 9.52 | 13.7 | 4000 | 0.1 |
| NATV15PP | NATV15 | 15 | 35 | 19 | 18 | 29 | 0.6 | 12.3 | 23.2 | 2600 | 0.11 |
| NATR17PP | NATR17 | 17 | 40 | 21 | 20 | 32.5 | 1 | 10.5 | 14.6 | 3400 | 0.14 |
| NATV17PP | NATV17 | 17 | 40 | 21 | 20 | 32.5 | 1 | 14.2 | 26.2 | 2200 | 0.15 |
| NATR20PP | NATR20 | 20 | 47 | 25 | 24 | 38 | 1 | 14.7 | 24.5 | 3000 | 0.25 |
| NATV20PP | NATV20 | 20 | 47 | 25 | 24 | 38 | 1 | 19.4 | 41.5 | 1900 | 0.25 |
| NATR25PP | NATR25 | 25 | 52 | 25 | 24 | 43 | 1 | 14.7 | 25.5 | 2400 | 0.28 |
| NATV25PP | NATV25 | 25 | 52 | 25 | 24 | 43 | 1 | 19.8 | 44 | 1600 | 0.29 |
| NATR30PP | NATR30 | 30 | 62 | 29 | 28 | 50.5 | 1 | 22.9 | 37.5 | 1800 | 0.47 |
| NATV30PP | NATV30 | 30 | 62 | 29 | 28 | 50.5 | 1 | 29.2 | 62 | 1400 | 0.48 |
| NATR35PP | 35 | 72 | 29 | 28 | 53.5 | 1.1 | 24.6 | 43 | 1600 | 0.64 | |
| NATV35PP | 35 | 72 | 29 | 28 | 53.5 | 1.1 | 31.9 | 72 | 1100 | 0.65 | |
| NATR40PP | 40 | 80 | 32 | 30 | 61.5 | 1.1 | 31.9 | 57 | 1500 | 0.81 | |
| NATV40PP | 40 | 80 | 32 | 30 | 61.5 | 1.1 | 39.1 | 88 | 950 | 0.89 | |
| NATR50PP | 50 | 90 | 32 | 30 | 76 | 1.1 | 30.8 | 58.5 | 1200 | 0.96 | |
| NATV50PP | 50 | 90 | 32 | 30 | 76 | 1.1 | 39.1 | 93 | 850 | 0.99 |
