Product Details
Place of Origin: China
Brand Name: SFT
Model Number: 2317 M
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Seals Type: |
Open |
Vibration: |
V1 V2 V3 |
Structure: |
Self-Aligning |
Number Of Row: |
Single Row |
Type: |
BALL |
Sample: |
Free |
Seals Type: |
Open |
Vibration: |
V1 V2 V3 |
Structure: |
Self-Aligning |
Number Of Row: |
Single Row |
Type: |
BALL |
Sample: |
Free |

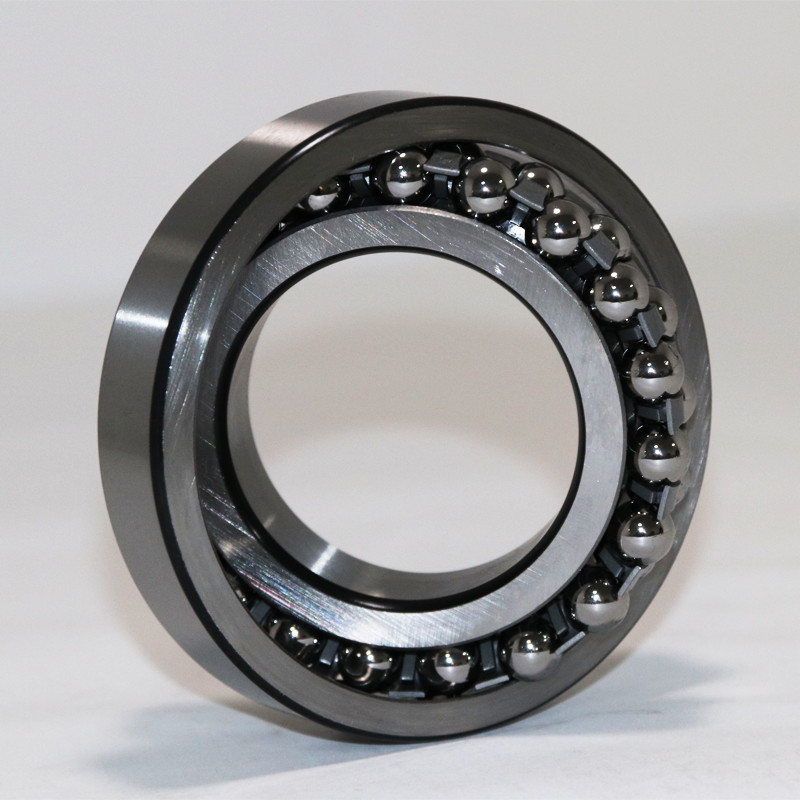

2317 M Self-Aligning Ball Bearing for textile machinery
In a self-aligning bearing, the inner ring has two raceways and the outer ring has a single spherical raceway with its center of curvature coincident with the bearing axis. Self-Aligning Double Row Ball Bearings are designed to work in applications where severe misalignment exists whether from mounting or shaft deflection. The concave raceway of the outer ring in combination with two rows of balls operate over a wide range of contact angles.
Features:
Low friction ,Long service life ,Enhanced operational reliability ,Consistency of
roller profiles and sizes ,Rigid bearing application,Running-in period with reduced
temperature peaks ,Separable and interchangeable
With low and smoothly coefficient of friction and without stick-slip effects
Suitable for dirty, corrosion, impact load and edge loading
The base material provided a good shock-absorbing capacity
Can be used over a large temperature range.
Advantages of self-aligning ball bearing:
(1)High Quality Steel-Ultra clean steel to extend bearing life by up to 80%.
(2)Advanced Grease Technology
(3)High Grade Balls - Quiet and smooth operation even at high speed.
(4)Super Finished Raceways - Specially honed to minimise noise and improve lubricant distribution and life.
| mm | Dynamic | Static | rpm | kg | |||||
| d | D | B | rsmin | Cr | Cor | Grease | Oil | ≈ | |
| 1200 series | |||||||||
| 1200 | 10 | 30 | 9 | 0.6 | 5.5 | 1.19 | 21,000 | 24,000 | 0.033 |
| 1201 | 12 | 32 | 10 | 0.6 | 5.6 | 1.27 | 18,000 | 22,000 | 0.04 |
| 1202 | 15 | 35 | 11 | 0.6 | 7.45 | 1.75 | 16,000 | 19,000 | 0.049 |
| 1203 | 17 | 40 | 12 | 0.6 | 7.9 | 2.01 | 14,000 | 17,000 | 0.072 |
| 1204 | 20 | 47 | 14 | 1 | 9.9 | 2.61 | 13,000 | 15,000 | 0.116 |
| 1204K | 20 | 47 | 14 | 1 | 9.9 | 2.61 | 13,000 | 15,000 | 0.114 |
| 1205 | 25 | 52 | 15 | 1 | 12.1 | 3.3 | 11,000 | 13,000 | 0.138 |
| 1205K | 25 | 52 | 15 | 1 | 12.1 | 3.3 | 11,000 | 13,000 | 0.135 |
| 1206 | 30 | 62 | 16 | 1 | 15.6 | 4.65 | 9,200 | 11,000 | 0.217 |
| 1206K | 30 | 62 | 16 | 1 | 15.6 | 4.65 | 9,200 | 11,000 | 0.213 |
| 1207 | 35 | 72 | 17 | 1.1 | 15.8 | 5.1 | 8,000 | 9,400 | 0.317 |
| 1207K | 35 | 72 | 17 | 1.1 | 15.8 | 5.1 | 8,000 | 9,400 | 0.312 |
| 1208 | 40 | 80 | 18 | 1.1 | 19.3 | 6.55 | 7,100 | 8,400 | 0.414 |
| 1208K | 40 | 80 | 18 | 1.1 | 19.3 | 6.55 | 7,100 | 8,400 | 0.407 |
| 1209 | 45 | 85 | 19 | 1.1 | 21.9 | 7.35 | 6,400 | 7,500 | 0.457 |
| 1209K | 45 | 85 | 19 | 1.1 | 21.9 | 7.35 | 6,400 | 7,500 | 0.448 |
| 1210 | 50 | 90 | 20 | 1.1 | 22.7 | 8.1 | 5,800 | 6,800 | 0.515 |
| 1210K | 50 | 90 | 20 | 1.1 | 22.7 | 8.1 | 5,800 | 6,800 | 0.504 |
| 1211 | 55 | 100 | 21 | 1.5 | 26.8 | 10 | 5,300 | 6,200 | 0.692 |
| 1211K | 55 | 100 | 21 | 1.5 | 26.8 | 10 | 5,300 | 6,200 | 0.679 |
| 1212 | 60 | 110 | 22 | 1.5 | 30 | 11.5 | 4,900 | 5,800 | 0.879 |
| 1212K | 60 | 110 | 22 | 1.5 | 30 | 11.5 | 4,900 | 5,800 | 0.864 |
| 1213 | 65 | 120 | 23 | 1.5 | 31 | 12.5 | 4,500 | 5,300 | 1.13 |
| 1213K | 65 | 120 | 23 | 1.5 | 31 | 12.5 | 4,500 | 5,300 | 1.11 |
| 1214 | 70 | 125 | 24 | 1.5 | 34.5 | 13.8 | 4,200 | 4,900 | 1.24 |
| 1215 | 75 | 130 | 25 | 1.5 | 39 | 15.7 | 3,900 | 4,600 | 1.33 |
| 1215K | 75 | 130 | 25 | 1.5 | 39 | 15.7 | 3,900 | 4,600 | 1.31 |
| 1216 | 80 | 140 | 26 | 2 | 40 | 17 | 3,700 | 4,300 | 1.65 |
| 1216K | 80 | 140 | 26 | 2 | 40 | 17 | 3,700 | 4,300 | 1.62 |
| 1217 | 85 | 150 | 28 | 2 | 49 | 20.8 | 3,500 | 4,100 | 2.06 |
| 1217K | 85 | 150 | 28 | 2 | 49 | 20.8 | 3,500 | 4,100 | 2.03 |
| 1218 | 90 | 160 | 30 | 2 | 57 | 23.5 | 3,300 | 3,800 | 2.51 |
| 1218K | 90 | 160 | 30 | 2 | 57 | 23.5 | 3,300 | 3,800 | 2.47 |
| 1219 | 95 | 170 | 32 | 2.1 | 64 | 27.1 | 3,100 | 3,600 | 3.1 |
| 1219K | 95 | 170 | 32 | 2.1 | 64 | 27.1 | 3,100 | 3,600 | 3.05 |
| 1220 | 100 | 180 | 34 | 2.1 | 69 | 29.7 | 2,900 | 3,400 | 3.7 |
| 1220K | 100 | 180 | 34 | 2.1 | 69 | 29.7 | 2,900 | 3,400 | 3.64 |
| 1221 | 105 | 190 | 36 | 2.1 | 74.5 | 32.5 | 2,800 | 3,300 | 4.34 |
| 1222 | 110 | 200 | 38 | 2.1 | 80.5 | 35.5 | 2,600 | 3,100 | 5.15 |
| 1222K | 110 | 200 | 38 | 2.1 | 80.5 | 35.5 | 2,600 | 3,100 | 5.07 |
