Product Details
Place of Origin: China
Brand Name: SFT
Model Number: 6205-2RS
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Outside Diameter: |
10 - 50 Mm |
Number Of Row: |
Single Row |
Application: |
Machinery |
Cage: |
Steel Cage.copper Cage.nylon Cage |
Vibration: |
V1 V2 V3 V4, Z1V1 Z2V2 Z3V3, Z1 Z2 V1 V2 |
Precision Rating: |
P0 P6 P5 P4 P2 |
Outside Diameter: |
10 - 50 Mm |
Number Of Row: |
Single Row |
Application: |
Machinery |
Cage: |
Steel Cage.copper Cage.nylon Cage |
Vibration: |
V1 V2 V3 V4, Z1V1 Z2V2 Z3V3, Z1 Z2 V1 V2 |
Precision Rating: |
P0 P6 P5 P4 P2 |

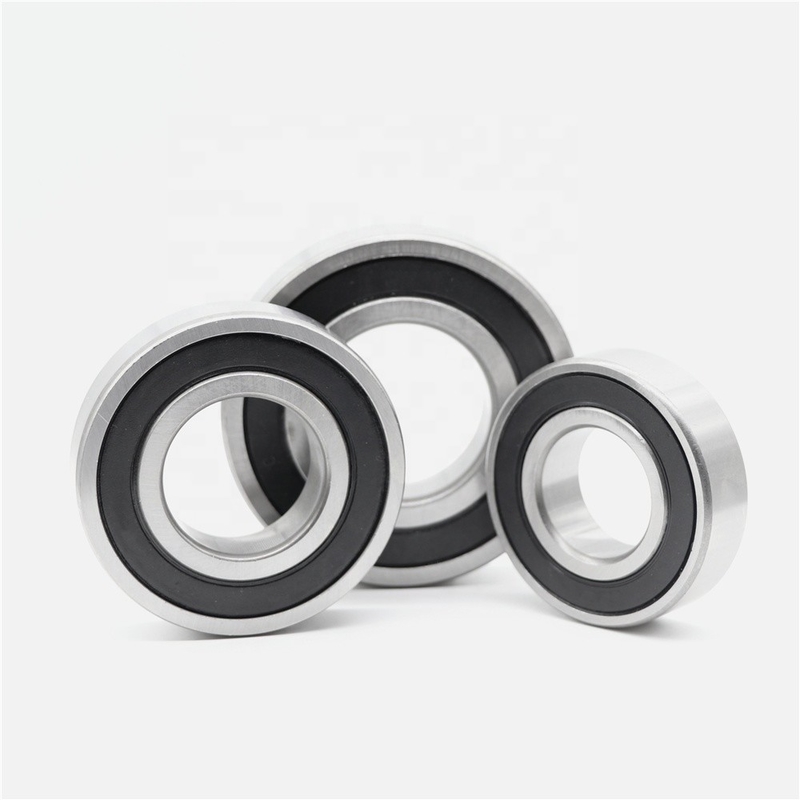

6205-2RS Motorcycle Bearing 6203 6204 Deep Groove Ball Bearing
Deep groove ball bearing is the most commonly used rolling bearing.Its structure is simple, and it can be easy to operate.They aremainly used for standing the radial load. But when the radialplay is increasing, they have the performance of angular contactbearing assembly. In that case, they may simultaneously stand theradial loads and the axial loads.In some cases, which are not suitable to using spherical roller thrust bearing and the rotational speed is rather high. They can also be used to stand purely axial loads.Compared with other kind of bearings with the same size, this kind of bearing enjoys smaller coefficientof friction and higher limits speed. But they cannot bear impact.Therefore, they are not suitable to bear heavy load.
Feature of deep groove ball bearing:
Shield / closure: open ball bearing, Z, ZZ, RS, 2RS,N,NR.
Tolerance codes: ABEC-1, ABEC-3, ABEC-5,
Vibration level codes: V4, V3, V2, V1
Ball bearings bore size: 1 - 200mm
Application:
The deep groove ball bearing can be used in many different places such as:
Gearbox, instruments and meters, electric motor, electric appliance, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, construction machinery, and so on.
| Product name | No. | Bore mm | O.D mm | Width mm | Weight Kg/pcs |
| Deep groove bearing | 6000 | 10 | 26 | 8 | 0.0197 |
| Deep groove bearing | 6001 | 10 | 30 | 9 | 0.0317 |
| Deep groove bearing | 6002 | 10 | 35 | 11 | 0.0551 |
| Deep groove bearing | 6003 | 12 | 21 | 5 | 0.0061 |
| Deep groove bearing | 6004 | 12 | 24 | 6 | 0.011 |
| Deep groove bearing | 6005 | 12 | 28 | 8 | 0.0215 |
| Deep groove bearing | 6006 | 12 | 30 | 8 | 0.0192 |
| Deep groove bearing | 6007 | 12 | 32 | 10 | 0.0366 |
| Deep groove bearing | 6008 | 12 | 37 | 12 | 0.0633 |
| Deep groove bearing | 6009 | 15 | 24 | 5 | 0.0072 |
| Deep groove bearing | 6010 | 15 | 28 | 7 | 0.0155 |
| Deep groove bearing | 6200 | 10 | 30 | 9 | 0.032 |
| Deep groove bearing | 6201 | 12 | 32 | 10 | 0.037 |
| Deep groove bearing | 6202 | 15 | 35 | 11 | 0.045 |
| Deep groove bearing | 6203 | 17 | 40 | 12 | 0.065 |
| Deep groove bearing | 6204 | 20 | 47 | 14 | 0.106 |
| Deep groove bearing | 6205 | 25 | 52 | 15 | 0.128 |
| Deep groove bearing | 6206 | 30 | 62 | 16 | 0.199 |
| Deep groove bearing | 6207 | 35 | 72 | 17 | 0.288 |
| Deep groove bearing | 6208 | 40 | 80 | 18 | 0.366 |
| Deep groove bearing | 6209 | 45 | 85 | 19 | 0.407 |
| Deep groove bearing | 6210 | 50 | 90 | 20 | 0.463 |
| Deep groove bearing | 6211 | 55 | 100 | 21 | 0.607 |
| Deep groove bearing | 6212 | 60 | 110 | 22 | 0.783 |
| Deep groove bearing | 6213 | 65 | 120 | 23 | 0.99 |
| Deep groove bearing | 6214 | 70 | 125 | 24 | 1.07 |
| Deep groove bearing | 6215 | 75 | 130 | 25 | 1.1 |
| Deep groove bearing | 6300 | 10 | 35 | 11 | 0.053 |
