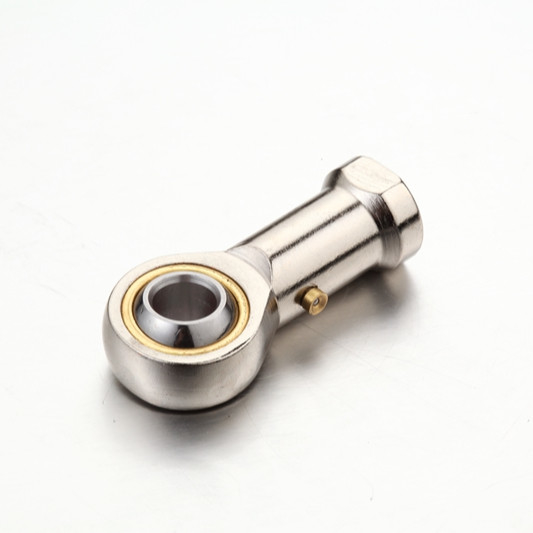

M5*0.8 M27*2 PHS POS Rod Ends Bearing Female And Male Thread Ball Joint Bearing

Ball joint bearing M5*0.8 M27*2 PHS POS female and male thread rod end bearing

Description of thread rod end bearing

A joint bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required. A ball swivel with an opening through which a bolt or other

attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.

Rod End Bearing PHS10L mainly bear radial load, but also can withstand a certain amount of axial load which has little friction, high limiting speed, many type of size and forms. It's suitable for precision instruments, low noise motors, automobiles, motorcycles and general machinery, the machinery industry, the most common kind of bearing.

The Rod End is a spherical slide bearing incorporating a spherical inner ring with precision and hardness equivalent to that of steel ball bearings. It provides very smooth rotating and oscillating motion without play.

Material of thread rod end bearing
Rod end of steel and zinc coated, with male or female thread, spherical surface with bronze liner, inner ring of carbon chromium steel, spherical surface with chromium plating, can be lubricated via a nipple or a hole in the rod end. It has characteristics of large load capability, easy mounting and dismounting and mechanism simplification.

Joint rod end bearing applications

Joint rod end bearings are widely used in hydraulic engineering , metal forming machine tools, engineering machinery, automation equipment , automotive shock absorbers , irrigation machinery and other industries.
