Product Details
Place of Origin: China
Brand Name: SFT
Model Number: LM25UU
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Vibration: |
Z1,Z2,Z3 |
Lubrication: |
Grease Or Oil |
Size: |
25*45*59mm |
Hardness: |
60-64 |
Precision Rating: |
P0 P6 P5 P4 P2 |
Material: |
Chrome Steel |
Vibration: |
Z1,Z2,Z3 |
Lubrication: |
Grease Or Oil |
Size: |
25*45*59mm |
Hardness: |
60-64 |
Precision Rating: |
P0 P6 P5 P4 P2 |
Material: |
Chrome Steel |

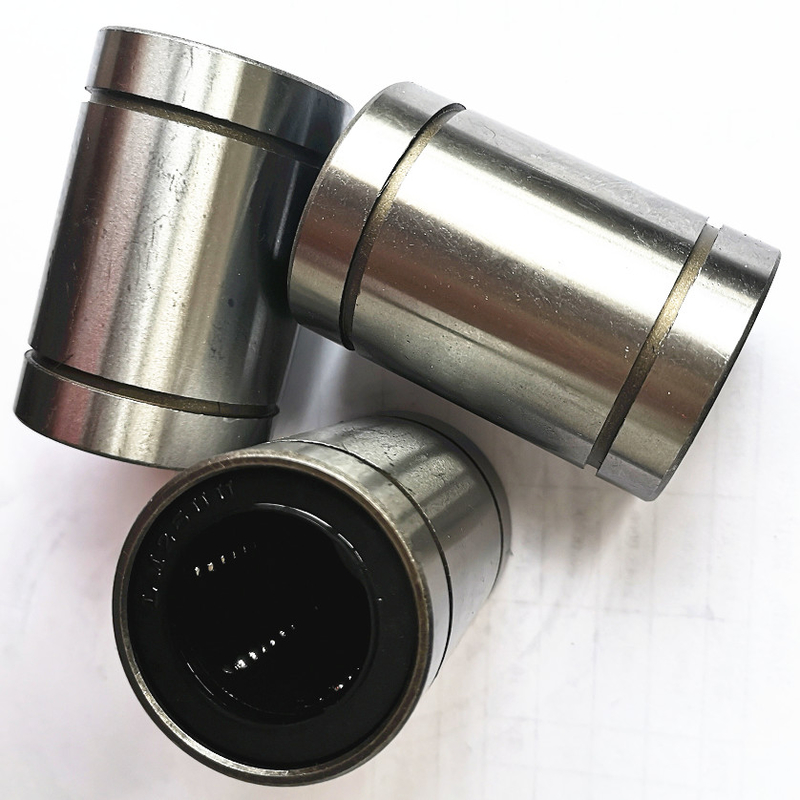

linear motion ball bearing LM25UU slider bearing linear motion guide stainless steel
Linear bearings are used in conjunction with hardened linear drive shaft. For infinite linear motion systems. Load the ball and quenching transmission shaft because it is the point contact, allowing the load is small, but linear motion, friction smallest, high precision, fast movement.
"LM" metric standard type linear bearing
Application of linear motion ball bearing :
- Linear Bearing is widely used in precision equipments, like electronic equipment, tension tester, etc.
- Linear Bearing is also widely used in automatic cutting machine, printer, card sorting machine, etc.
Linear motion bearing dimensions:
| Bearing number | Dlmensions mm | ||||||
| d | D | L | B | W | D1 | ||
| LME5 | 4 | 5 | 12 | 22 | 14.5 | 1.1 | 11.5 |
| LME8 | 4 | 8 | 16 | 25 | 16.5 | 1.1 | 15.2 |
| LME12 | 4 | 12 | 22 | 32 | 22.9 | 1.3 | 21 |
| LME16 | 4 | 16 | 26 | 36 | 24.9 | 1.3 | 24.9 |
| LME20 | 5 | 20 | 32 | 45 | 31.5 | 1.6 | 30.3 |
| LME25 | 6 | 25 | 40 | 58 | 44.1 | 1.85 | 27.5 |
| LME30 | 6 | 30 | 47 | 68 | 52.1 | 1.85 | 44.5 |
| LME40 | 8 | 40 | 62 | 80 | 60.6 | 2.15 | 59 |
| LME50 | 6 | 50 | 75 | 100 | 77.6 | 2.65 | 72 |
| LME60 | 6 | 60 | 90 | 125 | 101.7 | 3.15 | 86.5 |
| LME80 | 6 | 80 | 120 | 185 | 133.7 | 4.15 | 116 |
| LM6 | 4 | 6 | 12 | 19 | 13.5 | 1.1 | 11.5 |
| LM8 | 4 | 8 | 15 | 24 | 17.5 | 1.1 | 14.3 |
| LM10 | 4 | 10 | 19 | 29 | 22 | 1.3 | 18 |
| LM13 | 4 | 13 | 23 | 32 | 23 | 1.3 | 22 |
| LM16 | 4 | 16 | 28 | 37 | 26.5 | 1.6 | 27 |
| LM20 | 5 | 20 | 32 | 42 | 30.5 | 1.6 | 30.5 |
| LM25 | 6 | 25 | 40 | 59 | 41.4 | 1.85 | 38 |
| LM30 | 6 | 20 | 45 | 64 | 44.5 | 1.85 | 43 |
| LM40 | 6 | 40 | 60 | 80 | 60.5 | 2.1 | 57 |
| LM50 | 6 | 50 | 80 | 100 | 74 | 2.6 | 76.5 |
| LM60 | 6 | 60 | 90 | 110 | 85 | 3.15 | 86.5 |
The linear motion ball bearing (also called ball bushing or shaft guiding) consists of a polymeric cage with raceway segments made of hardened steel to guide the ball sets within the complete system. Recirculating balls provide unlimited stroke at low friction movement.
1.Smooth movement,low friction,high rigidity and long life.
2.We can make non-standard linear bearing according to clients samples or drawings.
3.Prompt delivery and OEM service.
4.Nice appearance,complete product system.
