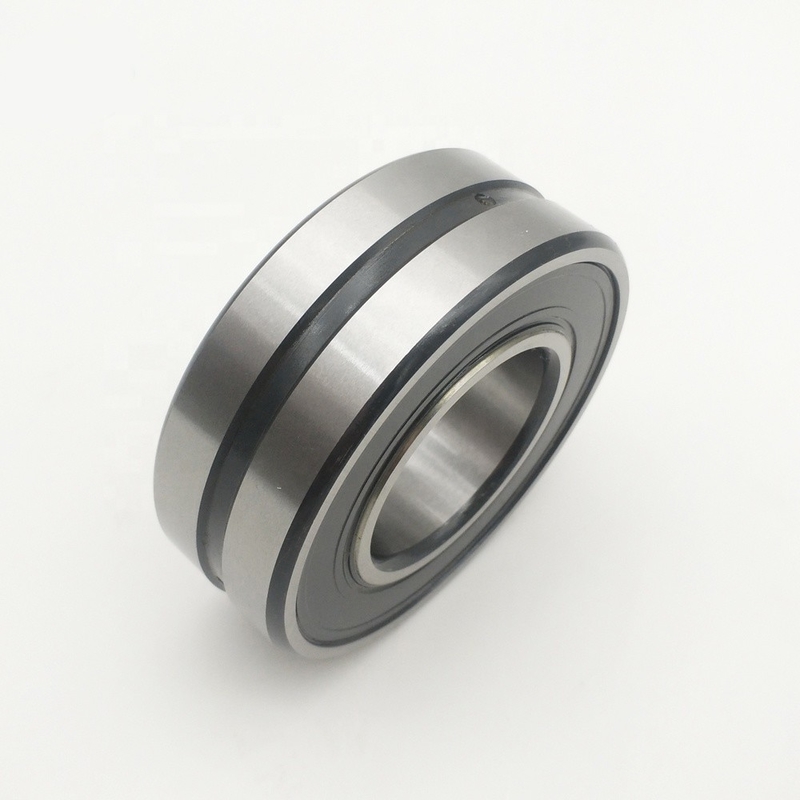

BS2-2212-2CS/VT143 spherical roller bearings BS2-2212-2CS

Name: BS2-2212-2CS/VT143 spherical roller bearings BS2-2212-2CS
Brand: SFT
SKU: BS2-2212-2CS/VT143
Rating: 4.9 (105 reviews)

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: BS2-2212-2CS/VT143

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                BS2-2212-2CS/VT143 Spherical Roller Bearings, BS2-2212-2CS Spherical Roller Bearings, BS2-2212-2CS/VT143


Precision Rating:	P0 P2 P6	Thickness:	34 Mm
Material:	Chrome Steel GCr15	Type:	Spherical Roller Bearing
Seals Type:	Open	Weight:	1,3 Kg

Precision Rating:	P0 P2 P6
Thickness:	34 Mm
Material:	Chrome Steel GCr15
Type:	Spherical Roller Bearing
Seals Type:	Open
Weight:	1,3 Kg

BS2-2212-2CS/VT143 spherical roller bearings BS2-2212-2CS

spherical roller bearing BS2-2212-2CS/VT143

Product Description of spherical roller bearing

BS2-2212-2CS/VT143 BS2-2212-2RS/VT143 double row sealed spherical roller bearing BS2-2212-2CS 60x110x34 mm

There are two designation systems for sealed spherical roller bearings. One identifies sealed bearings in the standard ISO dimension series and the other extended width versions. Below is shown how the two designation systems are to be interpreted. Other suffixes, denoting special bearings or frequent variants, e.g. radial internal clearance other than Normal, are added according to the standard designation system.

Feature of spherical roller bearing:

1) Spherical roller bearing are principally provided with two rows of symmetrical spherical rollers and a commonsphere raceway in out ring.
2) With good self-aligning ability and can operate when the shaft deflection under load or the shaft deflection underload or the shaft misalignment in mounting, and their permissible aligning angle is 1 to 2.5 degree
3) This type of bearings has heavy load carrying capacity and anti-impact ability, in addition to radial loads, theyalso can carry axial loads in two directions
4) In general, this type of bearings permits a low limiting speed.

BS2-2212-2CS/VT143 spherical roller bearings BS2-2212-2CS 0

d(mm)	D(mm)	B(mm)	Weight(kg)	Model
20	52	18	0,28	22205/20 E *
25	52	18	0,26	22205 E *
25	52	18	0,26	22205 EK *
25	52	23	0,26	BS2-2205-2CS/VT143 *
25	62	17	0,28	21305 CC *
30	62	20	0,29	22206 E *
30	62	20	0,28	22206 EK *
30	62	25	0,34	BS2-2206-2CS/VT143 *
30	72	19	0,41	21306 CC *
30	72	19	0,4	21306 CCK *
35	72	23	0,45	22207 E *
35	72	23	0,44	22207 EK *
35	72	28	0,52	BS2-2207-2CS/VT143 *
35	80	21	0,55	21307 CC *
35	80	21	0,54	21307 CCK *
40	80	23	0,53	22208 E *
40	80	23	0,52	22208 EK *
40	80	28	0,57	BS2-2208-2CS/VT143 *
40	80	28	0,57	BS2-2208-2CSK/VT143 *
40	90	23	0,75	21308 E *
40	90	23	0,74	21308 EK *
40	90	33	1,05	22308 E *
40	90	33	1,05	22308 E/VA405 *
40	90	33	1,05	22308 EK *
40	90	38	1,2	BS2-2308-2CS/VT143

40	90	38	1,2	BS2-2308-2CSK/VT143 *
45	85	23	0,58	22209 E *
45	85	23	0,57	22209 EK *
45	85	28	0,66	BS2-2209-2CS/VT143 *
45	85	28	0,64	BS2-2209-2CSK/VT143 *
45	100	25	0,99	21309 E *
45	100	25	0,98	21309 EK *
45	100	36	1,4	22309 E *
45	100	36	1,4	22309 E/VA405 *
45	100	36	1,35	22309 EK *
45	100	42	1,6	BS2-2309-2CS/VT143 *
45	100	42	1,6	BS2-2309-2CSK/VT143 *
50	90	23	0,63	22210 E *
50	90	23	0,62	22210 EK *
50	90	28	0,7	BS2-2210-2CS/VT143 *
50	90	28	0,68	BS2-2210-2CSK/VT143 *
50	110	27	1,35	21310 E *
50	110	27	1,35	21310 EK *
50	110	40	1,9	22310 E *
50	110	40	1,9	22310 E/VA405 *
50	110	40	1,85	22310 EK *
50	110	45	2,1	BS2-2310-2CS/VT143 *
50	110	45	2,1	BS2-2310-2CSK/VT143 *
55	100	25	0,84	22211 E *
55	100	25	0,82	22211 EK *

55	100	31	1	BS2-2211-2CS/VT143 *
55	100	31	1	BS2-2211-2CSK/VT143 *
55	120	29	1,7	21311 E *
55	120	29	1,7	21311 EK *
55	120	43	2,45	22311 E *
55	120	43	2,45	22311 E/VA405 *
55	120	43	2,4	22311 EK *
55	120	43	2,4	22311 EK/VA405 *
55	120	49	2,8	BS2-2311-2CS/VT143 *
55	120	49	2,8	BS2-2311-2CSK/VT143 *
60	110	28	1,15	22212 E *
60	110	28	1,15	22212 EK *
60	110	34	1,3	BS2-2212-2CS/VT143 *
60	110	34	1,3	BS2-2212-2CSK/VT143 *
60	130	31	2,1	21312 E *
60	130	31	2,05	21312 EK *
60	130	46	3,1	22312 E *
60	130	46	3,1	22312 E/VA405 *
60	130	46	3,05	22312 EK *
60	130	46	3,05	22312 EK/VA405 *
60	130	53	3,4	BS2-2312-2CS/VT143 *
60	130	53	3,4	BS2-2312-2CSK/VT143 *
65	100	35	0,95	24013 CC/W33 *

Applications of spherical roller bearing:

Papermaking machinery, deceleration device, railway vehicle axle, rolling mill, roller gearbox

Crusher, vibrating screen, printing machinery, woodworking machinery

Various industrial reducer
