Product Details
Place of Origin: China
Brand Name: SFT
Model Number: NJ1028 ECM/C3
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Application: |
Automotive.tractor.construction Machinery.rolling Mill |
Lubrication: |
Oil Grease |
Number Of Row: |
Single Row |
Seals Type: |
Open |
Precision Rating: |
PO P6 P4 P5 |
Cage: |
Steel Cage.Brass Cage.Nylon Cage |
Application: |
Automotive.tractor.construction Machinery.rolling Mill |
Lubrication: |
Oil Grease |
Number Of Row: |
Single Row |
Seals Type: |
Open |
Precision Rating: |
PO P6 P4 P5 |
Cage: |
Steel Cage.Brass Cage.Nylon Cage |

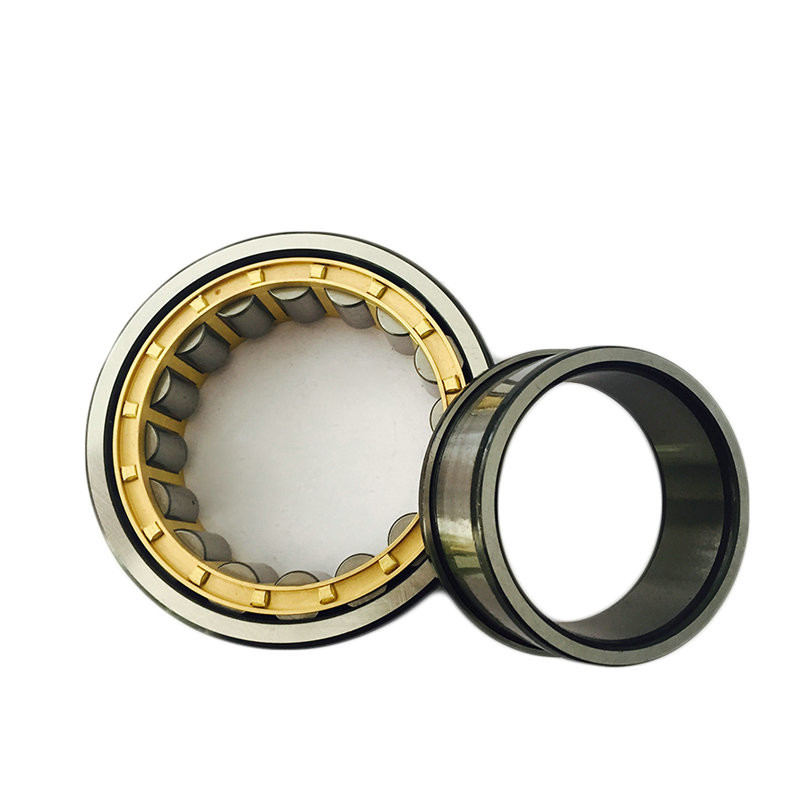

NJ1028 ECM/C3 Long Life Agricultural bearing NJ Series Cylindrical Roller Bearing
Product Introduction of Cylindrical Roller Bearing:
The rollers of cylindrical roller bearings have linear contact with the raceway,so the bearing can carry heavier radial load.
Normally these bearings can accommodate radial load only,none but single row bearings with ribs both on inner and outer rings can carry lighter axial load.
Such bearings need to be installed in the axial load of the host components, only in the same time using other types of bearings to bear the premise of axial load before use
Feature of Cylindrical Roller Bearing:
1. Roller and raceway are line contact or repair line contact, with large radial bearing capacity, suitable for bearing heavy load and impact load.
2. Small friction coefficient, suitable for high speed, the limit speed is close to the deep groove ball bearing.
3. The N and NU models can move in the axial direction, which can adapt to the change of the relative position between the shaft and the shell caused by thermal expansion or installation error, and can be used as free end support.
4. High requirements for shaft or seat hole processing, bearing after installation of the outer ring axis relative deviation should be strictly controlled, so as not to cause contact stress concentration.
5. The inner ring or outer ring can be separated for easy installation and disassembly.
Application of Cylindrical Roller Bearing:Auto, tractor ,machine tool, electric machine, water pump, agricultural machinery and textile machinery.
Drawing:
| Modle Number | Specification(mm) | Weight |
| d×D×B | (kg) | |
| NJ1020 ECM/C3 | 100*150*24 | 1.5 |
| NJ1021 ECM/C3 | 105*160*26 | 1.9 |
| NJ1022 ECM/C3 | 110*170*28 | 2.3 |
| NJ1024 ECM/C3 | 120*180*28 | 2.96 |
| NJ1026 ECM/C3 | 130*200*33 | 3.7 |
| NJ1028 ECM/C3 | 140*210*33 | 4 |
| NJ1030 ECM/C3 | 150*225*35 | 4.8 |
| NJ1032 ECM/C3 | 160*240*38 | 6 |
| NJ1034 ECM/C3 | 170*260*42 | 8.14 |
| NJ1036 ECM/C3 | 180*280*46 | 10.1 |
| NJ1038 ECM/C3 | 190*290*46 | — |
| NJ1040 ECM/C3 | 200*310*51 | 14.3 |
| NJ1044 ECM/C3 | 220*340*56 | 19.6 |
| NJ1048 ECM/C3 | 240*360*56 | 21 |
| NJ1052 ECM/C3 | 260*400*65 | 31 |
| NJ1056 ECM/C3 | 280*420*65 | 33 |
| NJ1060 ECM/C3 | 300*460*74 | 44.4 |
| NJ1064 ECM/C3 | 320*480*74 | 47 |
| NJ1068 ECM/C3 | 340*520*82 | 64.8 |
| NJ1072 ECM/C3 | 360*540*82 | 67.7 |
| NJ1076 ECM/C3 | 380*560*82 | 67.5 |
| NJ1080 ECM/C3 | 400*600*90 | 88.8 |
