Product Details
Place of Origin: China
Brand Name: SFT
Model Number: CM5
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Material: |
Bearing Steel |
Hardness: |
60-64 |
Application: |
Industry, Machinery, Aviation, Agricultural, Precision |
Type: |
Rod End |
Precision Rating: |
High Precision |
Lubrication: |
Oil Grease |
Material: |
Bearing Steel |
Hardness: |
60-64 |
Application: |
Industry, Machinery, Aviation, Agricultural, Precision |
Type: |
Rod End |
Precision Rating: |
High Precision |
Lubrication: |
Oil Grease |

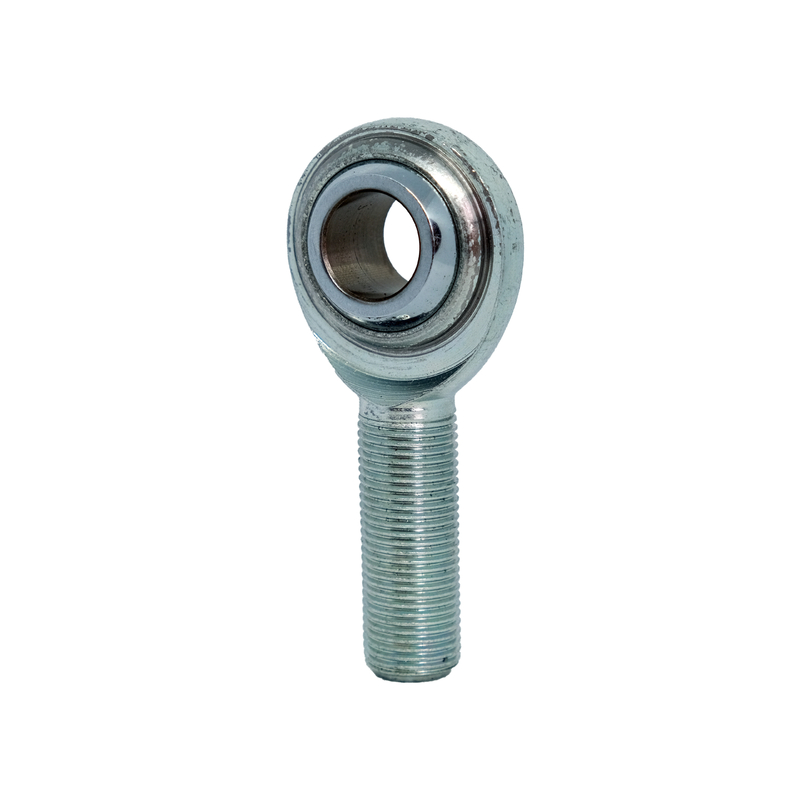

Ball Joint Rod End Bearing
Rod end bearings consist of a plain spherical articulating eye with an external threaded shaft.
These bearings can support a large radial load and a bi-directional axial load at the same time.
The bearing has a spherical inner ring which makes direct contact with the bore surface of the body made of a special bronze alloy.
This offers a smoother rotational and oscillatory motion and can improve wear and loading properties.
1.Features of rod end bearing
• Sliding contact surface: steel/PTFE
• Lubricating: Maintenance-free
• Housing: 304 stainless steel
• Inner ring: 420 stainless steel, heat treated HRC54-60
• Outer Ring: 304 stainless steel
• Liner: PTFE
2. Rod end bearing application
Rod end bearing are widely used in hydraulic engineering, metal forming machine, construction machinery, automation equipment, automotive shock absorber, water machinery sluice gate, navigation lock, textile machinery.
 |
MATERIALS | |
| BALL | BODY | |
| 52100 STEEL | LOW CARBON STEEL | |
| Rc 56 MIN. | ZINC PLATED | |
| HARD CHROME PLATED | CHROMATE TREATED | |
| MALE ROD ENDS |
B DIA. |
D DIA. |
W WIDTH |
T WIDTH |
BALL DIA. |
A LGTH |
N THD. |
C LGTH |
a°MIS ANGLE |
ULT. STATIC RADIAL LOAD (lbs.) |
APPROX. WEIGHT (lbs.) |
|
| Right Hand Part NO. | Left Hand Part NO. |
+.0025 -.0005 |
+.010 -.010 |
+.000 -.005 |
+.005 -.005 |
REF. |
+.015 -.015 |
UNF 3A |
+.062 -.031 |
REF. | ||
| CM3* | CM3* | .1900 | .625 | .312 | .234 | .437 | 1.250 | 10-32 | .750 | 20 | 1,210 | .03 |
| CM4* | CM4* | .2500 | .750 | .375 | .250 | .500 | 1.562 | 1/4-28 | 1.000 | 27 | 2,225 | .04 |
| CM5* | CM5* | .3125 | .875 | .437 | .312 | .625 | 1.875 | 5/16-24 | 1.250 | 22 | 3,600 | .07 |
| CM6 | CM6 | .3750 | 1.000 | .500 | .359 | .719 | 1.938 | 3/8-24 | 1.250 | 22 | 5,100 | .11 |
| CM7 | CM7 | .4375 | 1.125 | .562 | .406 | .812 | 2.125 | 7/16-20 | 1.375 | 21 | 6,402 | .15 |
| CM8 | CM8 | .5000 | 1.312 | .625 | .453 | .937 | 2.438 | 1/2-20 | 1.500 | 20 | 8,386 | .24 |
| CM10 | CM10 | .6250 | 1.500 | .750 | .484 | 1.125 | 2.625 | 5/8-18 | 1.625 | 26 | 9,813 | .36 |
| CM12 | CM12 | .7500 | 1.750 | .875 | .593 | 1.312 | 2.875 | 3/4-16 | 1.750 | 24 | 14,290 | .57 |
