Product Details
Place of Origin: China
Brand Name: SFT
Model Number: LMF16UU
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Precision Rating: |
P0 P6 P2 P5 P4, High Precision, 0_-0.005 |
Seals Type: |
With Seals |
Roughness: |
Ra0.4-0.8 |
Lubricated: |
Oil |
Type: |
LINEAR, Linear |
Cage: |
Steel Cage |
Precision Rating: |
P0 P6 P2 P5 P4, High Precision, 0_-0.005 |
Seals Type: |
With Seals |
Roughness: |
Ra0.4-0.8 |
Lubricated: |
Oil |
Type: |
LINEAR, Linear |
Cage: |
Steel Cage |

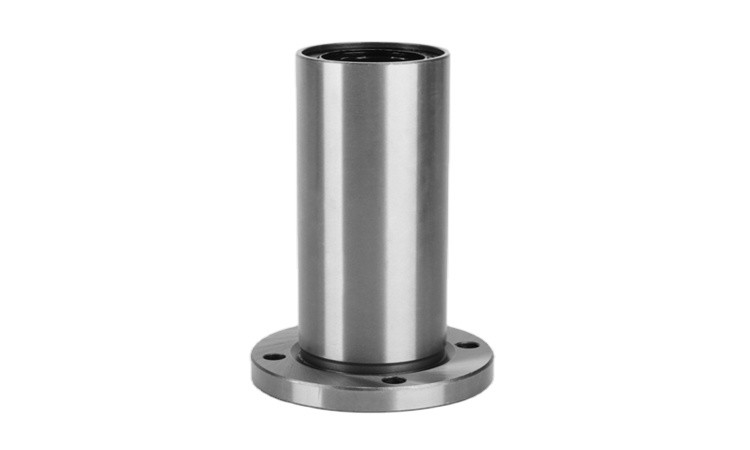

Linear Motion Round Bearing
Product Description of linear motion bearing
Inch Linear Shaft Bearing
1. High quality and long use life
2. Supply OEM service linear bearing
3. Prompt delivery
4. Competitive price
It is used in end supported applications, where spanning or bridging a gap is required. They have the greatest range of industrial application. However, care must be taken to select a shaft diameter to minimizes deflection. Precisely ground bearing track and plastic retainers provide smooth and quiet performance. Seals at both ends keep out contaminants and retain lubrication giving maximum travel life. The outer circumference of linear bearing is a cylindrical shape with highest accuracy, and to use is possible over a wide range of applications.
Type LM-UU: This is the metric dimension series with seal used most frequently in Korea and Japan.
Type LME-UU: This is the metric dimension series with seal used most frequently in Europe.
Type LMB-UU: This is the inch dimension series with seal used most frequently in USA
Application of linear motion bearing:
1.Widely used in precision machinery, fitness equipment, printing machinery, packaging machinery, medical and food machinery, textile machinery automation line, all kinds of form a complete set of machinery and equipment etc.
2.High friction resistance of Linear Bearing can get high precision rotating in the smooth movement.
3.Fixed in the process of mechanical transmission and reduce the load coefficient of friction.
4.After optimization of wearable technology
5.Free maintenance, low weight and dust.(Hardened nickel plated corrosion resistant,durable low wearing surface).
Sizes of Linear Bearing
| Bearing Code | Ball | Weight | Inner size(dr) | Outer size(D) | Length(L) |
| LMF6UU | 4 rows | 26.4g | 6mm | 12mm | 19mm |
| LMF8UU | 4 rows | 34g | 8mm | 15mm | 24mm |
| LMF10UU | 4 rows | 78g | 10mm | 19mm | 29mm |
| LMF12UU | 4 rows | 76g | 12mm | 21mm | 30mm |
| LMF13UU | 4 rows | 94g | 13mm | 23mm | 32mm |
| LMF16UU | 5 rows | 134g | 16mm | 28mm | 37mm |
| LMF20UU | 5 rows | 180g | 20mm | 32mm | 42mm |
| LMF25UU | 6 rows | 340g | 25mm | 40mm | 59mm |
| LMF30UU | 6 rows | 460g | 30mm | 45mm | 64mm |
| LMF35UU | 6 rows | 765g | 35mm | 52mm | 70mm |
| LMF40UU | 6 rows | 1054g | 40mm | 60mm | 80mm |
| LMF50UU | 6 rows | 2200g | 50mm | 80mm | 100mm |
| LMF60UU | 6 rows | 2960g | 60mm | 90mm | 110mm |
| LMF80UU | 6 rows | 5800g | 80mm | 120mm | 140mm |
