GEGZ..ES-2RS Series spherical sliding bearing GEGZ31ES Automation Equipment bearing

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: GEGZ31ES

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price
Highlight:

GEGZ..ES-2RS Spherical Sliding Bearing

,

GEGZ31ES Spherical Sliding Bearing

,

GEGZ31ES thrust spherical plain bearings

Application:
Simon Plain Bearing Automation Equipment Bearing
Precision Rating:
High Precision
Material:
Chrome Steel GCr15
Race:
PTFE Injection Molded
Lubrication:
Grease
Application:
Simon Plain Bearing Automation Equipment Bearing
Precision Rating:
High Precision
Material:
Chrome Steel GCr15
Race:
PTFE Injection Molded
Lubrication:
Grease
GEGZ..ES-2RS Series spherical sliding bearing GEGZ31ES Automation Equipment bearing

GEGZ..ES,GEGZ..ES-2RS series Good Performance Spherical Plain Bearing



  • Definition:

Radial spherical plain bearings have an inner ring with a sphered convex outside surface and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be permitted at relatively slow sliding speeds. FSZ GEGZ series plain shaft bearing are available with different sliding contact surface combinations. The sliding surfaces of inner and outer ring are made from different materials. There are two main groups: spherical plain bearings requiring maintenance(steel-on-steel) and maintenance-free spherical plain bearings.

  • Kinds of Spherical Plain Bearings

1.Spherical plain bearings requiring maintenance(steel-on-steel): It have hardened sliding contact surface on both rings. The surfaces are treated with molybdenum disulphide and phosphated. It has characteristics of wear-resistance and wear-corrosion. Bearings with this sliding contact surface combination require regular relubrication. The high strength of the sliding contact surfaces makes these bearings especially suitable for bearing arrangements where heavy loads of alternating direction, shock loads or heavy static loads have to be accommodated.

OEM customized GEGZ series radial plain shaft bearings





Bearing No. Dimensions mm Load ratings kN Weight
  d D B C dk rs r1s α° Dyn Stat Kg
            min min C Co
GEGZ31ES 1.25 2.4375 1.39 1.125 2.155 0.024 0.04 15 125 375 0.454
GEGZ31ES-2RS 1.25 2.4375 1.39 1.125 2.155 0.024 0.04 15 125 375 0.454
GEGZ38ES 1.5 2.8125 1.58 1.312 2.515 0.024 0.04 14 170 510 0.726
GEGZ38ES-2RS 1.5 2.8125 1.58 1.312 2.515 0.024 0.04 14 170 510 0.726
GEGZ44ES 1.75 3.1875 1.82 1.5 2.875 0.024 1 14 224 670 1.14
GEGZ44ES-2RS 1.75 3.1875 1.82 1.5 2.875 0.024 1 14 224 670 1.14
GEGZ50ES 2 3.5625 2.07 1.687 3.235 0.024 1 14 280 850 1.68
GEGZ50ES-2RS 2 3.5625 2.07 1.687 3.235 0.024 1 14 280 850 1.68
GEGZ57ES 2.25 3.9375 2.318 1.875 3.59 0.024 1 14 355 1060 2.01
GEGZ57ES-2RS 2.25 3.9375 2.318 1.875 3.59 0.024 1 14 355 1060 2.01
GEGZ63ES 2.5 4.375 2.545 2.062 3.95 0.04 1 14 415 1250 2.95
GEGZ63ES-2RS 2.5 4.375 2.545 2.062 3.95 0.04 1 14 415 1250 2.95
GEGZ69ES 2.75 4.75 2.79 2.25 4.312 0.04 0.04 14 500 1500 3.63
GEGZ69ES-2RS 2.75 4.75 2.79 2.25 4.312 0.04 0.04 14 500 1500 3.63
GEGZ76ES 3 5.125 3.022 2.437 4.675 0.04 0.04 14 585 1760 4.36
GEGZ76ES-2RS 3 5.125 3.022 2.437 4.675 0.04 0.04 14 585 1760 4.36
GEGZ82ES 3.25 5.5 3.265 2.625 5.04 0.04 0.04 14 680 2040 5.31
GEGZ82ES-2RS 3.25 5.5 3.265 2.625 5.04 0.04 0.04 14 680 2040 5.31
GEGZ88ES 3.5 5.875 3.56 2.812 5.39 0.04 0.04 14 780 2360 6.81
GEGZ88ES-2RS 3.5 5.875 3.56 2.812 5.39 0.04 0.04 14 780 2360 6.81
GEGZ95ES 3.75 6.25 3.738 3 5.75 0.04 0.04 14 900 2650 8.85
GEGZ95ES-2RS 3.75 6.25 3.738 3 5.75 0.04 0.04 10 900 2650 8.85
GEGZ101ES 4 7 4.225 3.375 6.475 0.04 0.04 10 1120 3400 10.2
GEGZ101ES-2RS 4 7 4.225 3.375 6.475 0.04 0.04 10 1120 3400 10.2
GEGZ114ES 4.5 7.75 4.69 3.75 7.19 0.04 0.04 10 1400 4150 13.6
GEGZ114ES-2RS 4.5 7.75 4.69 3.75 7.19 0.04 0.04 10 1400 4150 13.6
GEGZ139ES 5.5 8.75 4.95 4.125 8.156 0.04 0.04 9 1730 5200 20.4
GEGZ139ES-2RS 5.5 8.75 4.95 4.125 8.156 0.04 0.04 9 1730 5200 20.4



2. Maintenance-free spherical plain bearings: It have three groups: steel-on-PTFE composite material, steel-on-PTFE fabric and steel-on-copper alloy. Dynamic load support capability of steel-on-PTFE fabric spherical plain bearings is higher than that of steel-on-PTFE composite material. They have very low friction and can be operated without maintenance. They are used for applications where long bearing lives are required without maintenance, or where operating conditions, such as inadequate lubrication or the absence of lubrication make the use of steel-on-steel bearings inadvisable.

  • Service Life:

The service life of a GEGZ series plain shaft bearing operated under mixed or dry friction conditions is determined by the increase in bearing clearance or bearing friction caused by progressive wear of the sliding surfaces, plastic deformation of the sliding material or fatigue of the sliding surface. Depending on the application, the permissible wear or permissible increase in friction will be different. This means that under the same operationg conditions the service life which can be obtained in practice will be different.



The service life of a GEGZ series plain shaft bearing is the number of oscillating movements, or the number of operating hours which the bearing will service before a defined increase in bearing clearance or a defined increase in friction is reached.



The effective service life is that life which will be attained by a given spherical plain bearing under actual operating conditions. It is determined by the magnitude and type of load, but also by several other factors, such as contamination, corrosion, high-frequency load and movement cycles, shock etc. Some of these factors are impossible to determine or can only be determined with difficulty.

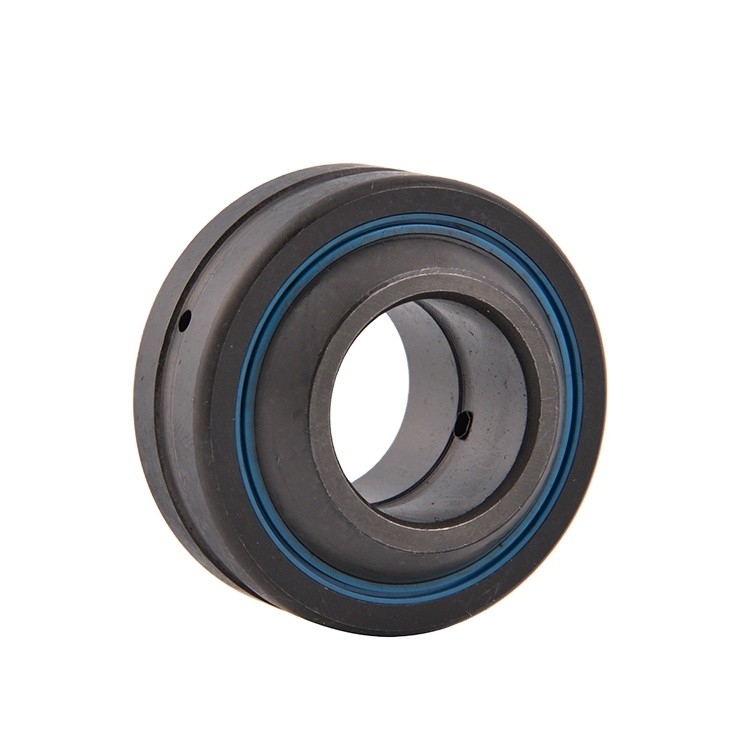

GEGZ..ES-2RS Series spherical sliding bearing GEGZ31ES Automation Equipment bearing 1GEGZ..ES-2RS Series spherical sliding bearing GEGZ31ES Automation Equipment bearing 2GEGZ..ES-2RS Series spherical sliding bearing GEGZ31ES Automation Equipment bearing 3
