Product Details
Place of Origin: China
Brand Name: SFT
Model Number: SC30UU SCS30UU
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Material: |
Chrome Steel |
Precision Rating: |
P0 P4 P5 P6 |
Roughness: |
Ra0.4-0.8 |
Lubricated: |
Oil |
Type: |
LINEAR, Linear |
Hardness: |
59-63 HRC |
Material: |
Chrome Steel |
Precision Rating: |
P0 P4 P5 P6 |
Roughness: |
Ra0.4-0.8 |
Lubricated: |
Oil |
Type: |
LINEAR, Linear |
Hardness: |
59-63 HRC |

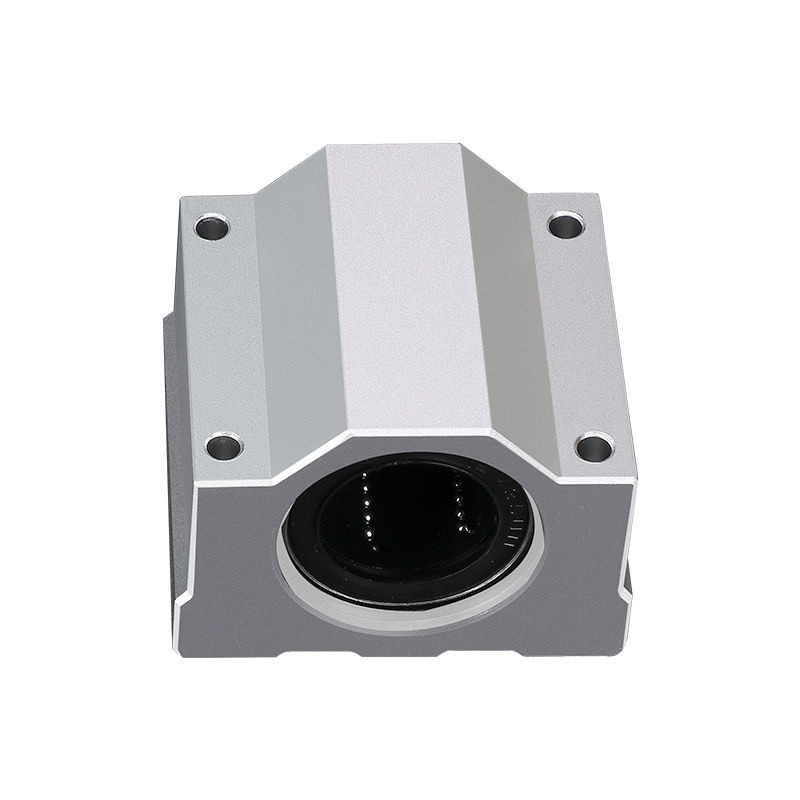

linear slide units carriage close block bearing SCS30UU linear sliding guide block
Product Description of linear motion bearing
Linear Motion bearing unit/block SC(S)...UU SC(S)...LUU series
Linear bearing is a low-cost production of linear motion system for unlimited travel in conjunction with the cylinder axis. Since carrying the ball point contact with the shaft, so the use of small loads. With minimal friction ball rotation, which can obtain high-precision smooth movement.Low noise, low friction, high precision, high life.Because of point contact between ball and straight axis, friction small, motion precision is high.
Linear bearings are used in conjunction with hardened linear shaft. For an infinite linear motion systems. Ball and hardened shaft because it is the point of contact, allowing the load is small, but the linear motion of the minimum friction, high precision, fast movement. Mainly used for linear motion passed.
Application
Linear motion guide rail and block TBR/SBR Series with smooth serface, little friction,low noise,they are widely used in linear motion system.For example, punch, tool grinding machine,automatic cutting machine, printer, card sorting machine, Food Packing Machine, other sliding parts on industrial machinery.
| Standard | Basic load rating | Weight (gf) | Dimensionsmm) | ||||||||||||||
| Designation | Liner Bearing | Dynamic C N | Static Co N | Shaft Diameter | Nominal Dimensions(mm) | SC...UU | |||||||||||
| h | D | W | H | G | A | J | E | S1×I | S2 | K | L | ||||||
| SC8UU | LM8UU | 260 | 400 | 56 | Φ8 | 11 | 17 | 34 | 22 | 18 | 6 | 24 | 5 | M4×8 | Φ3.4 | 18 | 30 |
| SC10UU | LM10UU | 370 | 540 | 90 | Φ10 | 13 | 20 | 40 | 26 | 21 | 8 | 28 | 6 | M5×12 | Φ4.3 | 21 | 35 |
| SC12UU | LM12UU | 410 | 590 | 112 | Φ12 | 15 | 21 | 42 | 28 | 24 | 8 | 30.5 | 5.75 | M5×12 | Φ4.3 | 26 | 36 |
| SC13UU | LM13UU | 500 | 770 | 123 | Φ13 | 15 | 22 | 44 | 30 | 24.5 | 8 | 33 | 5.5 | M5×12 | Φ4.3 | 26 | 39 |
| SC16UU | LM16UU | 770 | 1170 | 189 | Φ16 | 19 | 25 | 50 | 38.5 | 32.5 | 9 | 36 | 7 | M5×12 | Φ4.3 | 34 | 44 |
| SC20UU | LM20UU | 860 | 1370 | 237 | Φ20 | 21 | 27 | 54 | 41 | 35 | 11 | 40 | 7 | M6×12 | Φ5.2 | 40 | 50 |
| SC25UU | LM25UU | 980 | 1560 | 555 | Φ25 | 26 | 38 | 76 | 51.5 | 42 | 12 | 54 | 11 | M8×18 | Φ7 | 50 | 67 |
| SC30UU | LM30UU | 1560 | 2740 | 685 | Φ30 | 30 | 39 | 78 | 59.5 | 49 | 15 | 58 | 10 | M8×18 | Φ7 | 58 | 72 |
| SC35UU | LM35UU | 1600 | 3130 | 1100 | Φ35 | 34 | 45 | 90 | 68 | 54 | 18 | 70 | 10 | M8×18 | Φ7 | 60 | 80 |
| SC40UU | LM40UU | 2150 | 4010 | 1600 | Φ40 | 40 | 51 | 102 | 78 | 62 | 20 | 80 | 11 | M10×25 | Φ8.7 | 60 | 90 |
| SC50UU | LM50UU | 3820 | 7930 | 3350 | Φ50 | 52 | 61 | 122 | 102 | 80 | 25 | 100 | 11 | M10×25 | Φ8.7 | 80 | 110 |
