Product Details
Place of Origin: China
Brand Name: SFT
Model Number: 23264 CAC/W33
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Noise Level: |
Z1,Z2,Z3,Z4 |
Size: |
320*580*208 Mm |
Material: |
Chrome Steel GCr15 |
Cage: |
Steel Cage.Brass Cage |
Number Of Row: |
Single Row |
Seals Type: |
Open (zz, 2rs) |
Noise Level: |
Z1,Z2,Z3,Z4 |
Size: |
320*580*208 Mm |
Material: |
Chrome Steel GCr15 |
Cage: |
Steel Cage.Brass Cage |
Number Of Row: |
Single Row |
Seals Type: |
Open (zz, 2rs) |

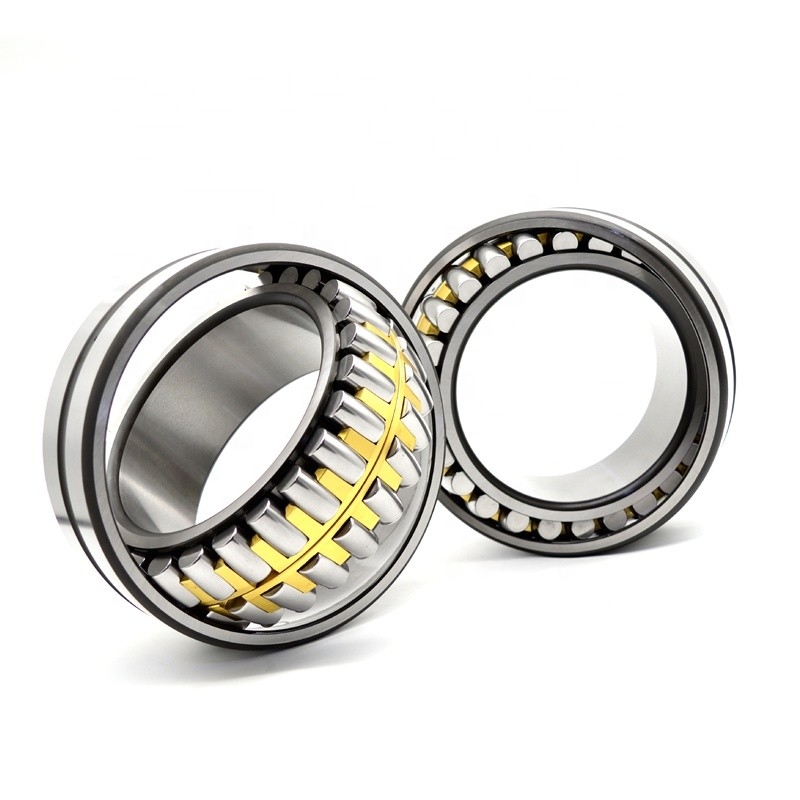

Roller Bearing 23264 CAC/W33 Sizes 320*580*208 Made in China Spherical Roller Bearing
Product Description of spherical roller bearing:
The Spherical Roller Bearing has double row rollers, the outer ring has one common spherical raceway, and the inner ring has two raceways, which are inclined at an angle relative to the bearing axis. This ingenious structure makes it self-aligning, so it is not easy to be affected by the angle between the shaft and the bearing housing seat on the error or shaft bending. It is suitable for the occasion of angle error caused by installation error or shaft bending. The bearing can not only bear the radial load, but also the axial load of two-way action
Spherical roller bearings consist of an inner ring with two raceways inclined at an angle to the bearing axis, an outer ring with a common spherical raceway, spherical rollers, cages and, in certain designs, also internal guide rings or center rings. The bearings can also be sealed.
Most spherical roller bearings are designed with two rows of rollers, allowing them to take very heavy radial loads and heavy axial loads. There are also designs with one row of rollers, suitable for lower radial loads and virtually no axial load. These are also called "barrel roller bearings" or "Tonnenlager" and are typically available in the 202- and 203-series.[5]
The internal design of the bearing is not standardised by ISO, so it varies between different manufacturers and different series.
Some features that may or may not exist in different bearings are:
* Lubrication features in inner or outer ring
* Central flange
* Guide ring or center ring
* Integrated seals
* Cage
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
The main uses of spherical roller bearings: papermaking machinery, reduction gears, railway vehicle axles, rolling mill gearbox bearing seats, rolling mill rolls, crushers, vibrating screens, printing machinery, woodworking machinery, various industrial reducers, vertical
