Product Details
Place of Origin: China
Brand Name: SFT
Model Number: NAO 92212
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Number Of Row: |
Single Row |
Bore Size: |
1 - 9 Mm |
Type: |
Needle |
Thickness: |
40mm |
Cage Material: |
Steel Cage |
Seals Type: |
No Seal, 2rs, ZZ |
Number Of Row: |
Single Row |
Bore Size: |
1 - 9 Mm |
Type: |
Needle |
Thickness: |
40mm |
Cage Material: |
Steel Cage |
Seals Type: |
No Seal, 2rs, ZZ |
NAO 9X22X12 TN NAO 9X22X12 TV Bearing Size 9x22x12 mm Needle Roller Bearing NAO9x22x12-TV NAO92212
Product Introduction:
NAO90X120X30-XL Needle roller bearings (needle bearing) is a cylindrical roller with a roller bearing, relative to its diameter, roller both thin and long. This is called needle roller. Despite having a smaller cross-section, has a higher load bearing capacity, equipped with a thin and long needle bearing roller (roller diameter D<5mm, L / D>2.5, L is the length of the roller), therefore radial structure is compact, its diameter size and load capacity and other types of bearings, minimum diameter, especially for radial mounting dimensions restricted support structure.
According to different occasions, can be used without inner ring of the bearing or needle roller and cage assembly, when the surface of the journal bearing surface and shell holes as bearing directly match the outer rolling surface, in order to ensure the load capacity and operating performance and have the same ring bearing, shaft or housing bore raceway surface hardness, machining accuracy and surface quality should be similar roller bearing rings. Such bearings can only bear radial load.
Application:
Needle roller bearings are widely used in cars, compressors, construction, electric motors, food industry, home appliances etc. As a rolling element, it turns the world.

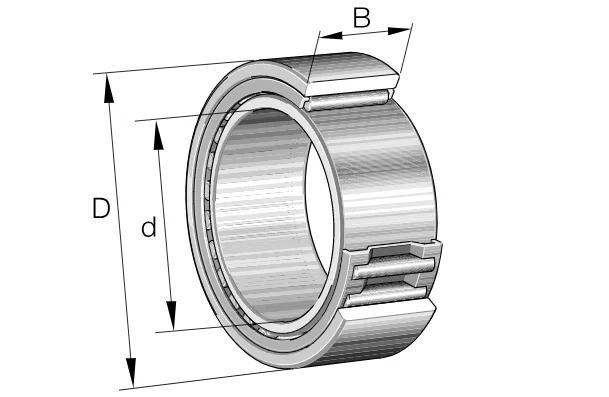

| Bearing No. | d | D | B |
| mm | mm | mm | |
| NAO6x17x10-TV | 6 | 17 | 10 |
| NAO9x22x12-TV | 9 | 22 | 12 |
| RNAO5x10x8 TV | 5 | 10 | 8 |
| RNAO6x13x8 TV | 6 | 13 | 8 |
| RNAO7x14x8 TV | 7 | 14 | 8 |
| RNAO8x15x10 TV | 8 | 15 | 10 |
| RNAO10x17x10 TV | 10 | 17 | 10 |
| RNAO12x22x12 TV | 12 | 22 | 12 |
| NAO12x24x13 | 12 | 24 | 13 |
| NAO12x28x12 | 12 | 28 | 12 |
| NAO15x28x13 | 15 | 28 | 13 |
| NAO15x32x12 | 15 | 32 | 12 |
| NAO17x30x13 | 17 | 30 | 13 |
| NAO17x35x16 | 17 | 35 | 16 |
| NAO20x35x17 | 20 | 35 | 17 |
| NAO20x37x16 | 20 | 37 | 16 |
| NAO25x40x17 | 25 | 40 | 17 |
| NAO25x42x16 | 25 | 42 | 16 |
| NAO30x45x17 | 30 | 45 | 17 |
| NAO30x47x16 | 30 | 47 | 16 |
| NAO30x47x18 | 30 | 47 | 18 |
| NAO35x50x17 | 35 | 50 | 17 |
| NAO35x55x20 | 35 | 55 | 20 |
| NAO40x55x17 | 40 | 55 | 17 |
| NAO50x68x20 | 50 | 68 | 20 |
| NAO70x100x30 | 70 | 100 | 30 |
| NAO80x110x30 | 80 | 110 | 30 |
| NAO90x120x30 | 90 | 120 | 30 |
| RNAO15x23x13 | 15 | 23 | 13 |
| RNAO16x24x13 | 16 | 24 | 13 |
| RNAO16x28x12 | 16 | 28 | 12 |
| RNAO17x25x13 | 17 | 25 | 13 |
| RNAO20x28x13 | 20 | 28 | 13 |
| RNAO20x32x12 | 20 | 32 | 12 |
| RNAO22x30x13 | 22 | 30 | 13 |
| RNAO22x35x16 | 22 | 35 | 16 |
| RNAO25x35x17 | 25 | 35 | 17 |
| RNAO25x37x16 | 25 | 37 | 16 |
| RNAO30x40x17 | 30 | 40 | 17 |
| RNAO30x42x16 | 30 | 42 | 16 |
| RNAO35x45x13 | 35 | 45 | 13 |
| RNAO35x45x17 | 35 | 45 | 17 |
| RNAO35x47x16 | 35 | 47 | 16 |
| RNAO35x47x18 | 35 | 47 | 18 |
| RNAO40x50x17 | 40 | 50 | 17 |
| RNAO40x55x20 | 40 | 55 | 20 |
| RNAO45x55x17 | 45 | 55 | 17 |
| RNAO50x62x20 | 50 | 62 | 20 |
| RNAO50x65x20 | 50 | 65 | 20 |
| RNAO55x68x20 | 55 | 68 | 20 |
| RNAO60x78x20 | 60 | 78 | 20 |
| RNAO65x85x30 | 65 | 85 | 30 |
| RNAO70x90x30 | 70 | 90 | 30 |
| RNAO80x100x30 | 80 | 100 | 30 |
| RNAO90x105x26 | 90 | 105 | 26 |
| RNAO90x110x30 | 90 | 110 | 30 |
| RNAO100x120x30 | 100 | 120 | 30 |
