Product Details
Place of Origin: China
Brand Name: SFT
Model Number: PHS5
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Connection Screw Shape: |
Male Thread |
Material: |
Chrome Steel |
Size: |
5*18mm |
Thread: |
M8x1.25 |
Operating Temperature Range(℃): |
-20~80 |
Precision Rating: |
P6 |
Connection Screw Shape: |
Male Thread |
Material: |
Chrome Steel |
Size: |
5*18mm |
Thread: |
M8x1.25 |
Operating Temperature Range(℃): |
-20~80 |
Precision Rating: |
P6 |

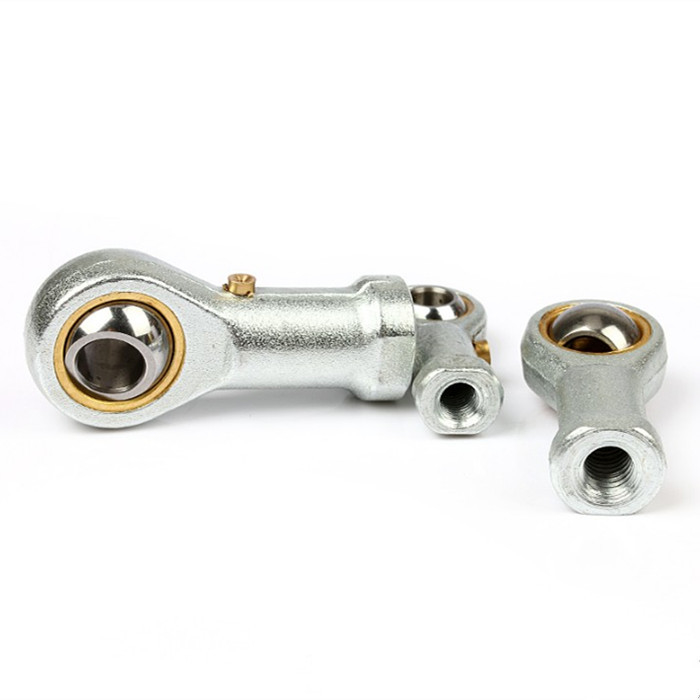

Female Rod End 5mm PHS5 Right Hand Ball Bearings Rod End bearings
Description:
Joint bearing is dominated by an inner and outer sphere within a spherical outer ring,can withstand a greater load.According to their different types and structures that can withstand the radial load,axial load or radial,axial joint load.Since the inner surface of the outer sphere inlaid composite materials,so that the work can be generated in the bearing selflubricating.Generally used for slower swing movement,but also for the tilt angle within a certain range of motion,when the supporting shaft and shaft misalignment large shell hole,still work properly.Self-lubricating auxiliary bearing joints used in water conservancy, specialized machinery and other industries.
Features:
• Self-Lubrication
• Housing: carbon steel and white zinc plated
• Steel Ball: 52100 chrome steel, precision ground hardened and chrome plated
• Liner: PTFE-Strong & flexible bronze mesh spread with fluorine resin
• Race: Bronze
Application:
Joint bearings are widely used in hydraulic engineering, metal forming machine tools, construction machinery, automation equipment, automotive shock absorbers, irrigation machinery and other industries.
Female Rod End 5mm PHS5 Right Hand Ball Bearings Rod End bearings introduction :
Rod end ball joint types bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.
Rod end ball joint types bearing PHS18 bearing models series :
| Bearing No. | d | d3 | B | C1 | L |
| PHS4 | 4 | M4x0.7 | 7 | 5.25 | 8 |
| PHS5 | 5 | M5x0.8 | 8 | 6 | 10 |
| PHS6 | 6 | M6x1.0 | 9 | 6.75 | 12 |
| PHS8 | 8 | M8x1.25 | 12 | 9 | 16 |
| PHS10 | 10 | M10x1.5 | 14 | 10.5 | 20 |
| PHS10-1 | 10 | M10x1.25 | 14 | 10.5 | 20 |
| PHS12 | 12 | M12x1.75 | 16 | 12 | 22 |
| PHS12-1 | 12 | M12x1.25 | 16 | 12 | 22 |
| PHS14 | 14 | M14x2.0 | 19 | 13.5 | 25 |
| PHS14-1 | 14 | M14x1.5 | 19 | 13.5 | 25 |
| PHS16 | 16 | M16x2.0 | 21 | 15 | 28 |
| PHS16-1 | 16 | M16x1.5 | 21 | 15 | 28 |
| PHS18 | 18 | M18x1.5 | 23 | 16.5 | 32 |
| PHS20 | 20 | M20x1.5 | 25 | 18 | 33 |
| PHS22 | 22 | M22x1.5 | 28 | 20 | 37 |
| PHS25 | 25 | M24x2.0 | 31 | 22 | 42 |
| PHS28 | 28 | M27x2.0 | 35 | 24 | 48 |
| PHS30 | 30 | M30x2.0 | 37 | 25 | 51 |
| PHS30-1 | 30 | M27x2.0 | 37 | 25 | 51 |
| POS5 | 5 | M5x0.8 | 8 | 6 | 20 |
| POS6 | 6 | M6x1.0 | 9 | 6.75 | 22 |
| POS8 | 8 | M8x1.25 | 12 | 9 | 25 |
| POS10 | 10 | M10x1.5 | 14 | 10.5 | 29 |
| POS12 | 12 | M12x1.75 | 16 | 12 | 33 |
| POS12-1 | 12 | M12x1.25 | 16 | 12 | 33 |
| POS14 | 14 | M14x2.0 | 19 | 13.5 | 36 |
| POS16 | 16 | M16x2.0 | 21 | 15 | 40 |
| POS16-1 | 16 | M16x1.5 | 21 | 15 | 40 |
| POS18 | 18 | M18x1.5 | 23 | 16.5 | 44 |
| POS20 | 20 | M20x1.5 | 25 | 18 | 47 |
| POS22 | 22 | M22x1.5 | 28 | 20 | 51 |
| POS25 | 25 | M24x2.0 | 31 | 22 | 57 |
| POS28 | 28 | M27x2.0 | 35 | 24 | 62 |
| POS30 | 30 | M30x2.0 | 37 | 25 | 66 |
