Product Details
Place of Origin: China
Brand Name: SFT
Model Number: LR5207 KDDU
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Weight: |
660 G |
Seals Type: |
Open,ZZ, 2rs |
Width: |
27 Mm |
Application: |
Agriculture, Automotive, Chemical |
Number Of Row: |
Single Row |
Precision Rating: |
P0 P6 P5 |
Weight: |
660 G |
Seals Type: |
Open,ZZ, 2rs |
Width: |
27 Mm |
Application: |
Agriculture, Automotive, Chemical |
Number Of Row: |
Single Row |
Precision Rating: |
P0 P6 P5 |

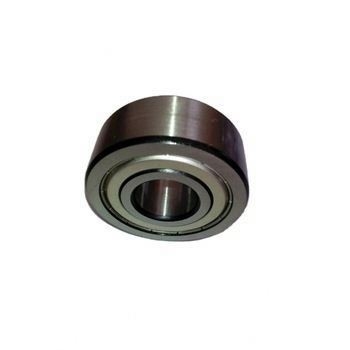

track roller bearings LR5207 KDDU LR5207KDDU LR 5207 sizes 35x80x27 mm
Description:
Ball bearing track rollers are self-retaining, single or double row ball bearings with partic arly thick-walled outer rings. In addition to high radial forces, these bearings can also support axial forces in both directions.
The outer rings have a crowned or cylindrical outside surface. Designs with a crowned outside surface are used where they are inclined in relation to the mating track and edge stresses must be avoided.
Ball bearing track rollers are available with an inner ring, with a stud and with a plastic tyre on the outer ring.
Yoke type track rollers with a crowned outside surface and stud type track rollers have a radius of curvature of R = 500 mm.
LR5207KDDU Deep groove ball bearings are versatile, self retaining bearings with solid outer rings, inner rings and ball and cage assemblies.
These products are of simple design, durable in operation and easy to maintain; they are available in single and double row designs and in open and sealed variants.
Due to the production technology used, open bearings can still have turned recesses on the outer ring for seals or shields.
Specification
| Type | Weight | D | d | B | C | R | Rs | Cw | Cow | Puw | Seal | Shield |
| (g) | mm | N | ||||||||||
| LR5200NPP | 70 | 32 | 10 | 14 | 14 | -- | 0.6 | 6800 | 4050 | 168 | 8000 | 11000 |
| LR5200NPPU | 70 | 32 | 10 | 14 | 14 | 500 | 0.6 | 6800 | 4050 | 168 | 8000 | 11000 |
| LR5200KDD | 70 | 32 | 10 | 14 | 14 | -- | 0.6 | 6800 | 4050 | 168 | 8000 | 11000 |
| LR5200KDDU | 70 | 32 | 10 | 14 | 14 | 500 | 0.6 | 6800 | 4050 | 168 | 8000 | 11000 |
| LR5201NPP | 80 | 35 | 12 | 15.9 | 16 | -- | 0.6 | 8600 | 5100 | 211 | 7500 | 10000 |
| LR5201NPPU | 80 | 35 | 12 | 15.9 | 16 | 500 | 0.6 | 8600 | 5100 | 211 | 7500 | 10000 |
| LR5201KDD | 80 | 35 | 12 | 15.9 | 16 | -- | 0.6 | 8600 | 5100 | 211 | 7500 | 10000 |
| LR5201KDDU | 80 | 35 | 12 | 15.9 | 16 | 500 | 0.6 | 8600 | 5100 | 211 | 7500 | 10000 |
| LR5202NPP | 110 | 40 | 15 | 15.9 | 16 | -- | 0.6 | 9800 | 6200 | 258 | 7000 | 10000 |
| LR5202NPPU | 110 | 40 | 15 | 15.9 | 16 | 500 | 0.6 | 9800 | 6200 | 258 | 7000 | 10000 |
| LR5202KDD | 110 | 40 | 15 | 15.9 | 16 | -- | 0.6 | 9800 | 6200 | 258 | 7000 | 10000 |
| LR5202KDDU | 110 | 40 | 15 | 15.9 | 16 | 500 | 0.6 | 9800 | 6200 | 258 | 7000 | 10000 |
| LR5203NPP | 170 | 47 | 17 | 17.5 | 18 | -- | 0.6 | 12600 | 8200 | 342 | 5500 | 7500 |
| LR5203NPPU | 170 | 47 | 17 | 17.5 | 18 | 500 | 0.6 | 12600 | 8200 | 342 | 5500 | 7500 |
| LR5203KDD | 170 | 47 | 17 | 17.5 | 18 | -- | 0.6 | 12600 | 8200 | 342 | 5500 | 7500 |
| LR5203KDDU | 170 | 47 | 17 | 17.5 | 18 | 500 | 0.6 | 12600 | 8200 | 342 | 5500 | 7500 |
| LR5204NPP | 230 | 52 | 20 | 20.6 | 21 | -- | 1 | 15800 | 10500 | 433 | 5000 | 7000 |
| LR5204NPPU | 230 | 52 | 20 | 20.6 | 21 | 500 | 1 | 15800 | 10500 | 433 | 5000 | 7000 |
| LR5204KDD | 230 | 52 | 20 | 20.6 | 21 | -- | 1 | 15800 | 10500 | 433 | 5000 | 7000 |
| LR5204KDDU | 230 | 52 | 20 | 20.6 | 21 | 500 | 1 | 15800 | 10500 | 433 | 5000 | 7000 |
| LR5205NPP | 340 | 62 | 25 | 20.6 | 21 | -- | 1 | 18500 | 13000 | 532 | 4500 | 6500 |
| LR5205NPPU | 340 | 62 | 25 | 20.6 | 21 | 500 | 1 | 18500 | 13000 | 532 | 4500 | 6500 |
| LR5205KDD | 340 | 62 | 25 | 20.6 | 21 | -- | 1 | 18500 | 13000 | 532 | 4500 | 6500 |
| LR5205KDDU | 340 | 62 | 25 | 20.6 | 21 | 500 | 1 | 18500 | 13000 | 532 | 4500 | 6500 |
| LR5206NPP | 510 | 72 | 30 | 23.8 | 24 | -- | 1 | 24600 | 21400 | 880 | 3500 | 5000 |
| LR5206NPPU | 510 | 72 | 30 | 23.8 | 24 | 500 | 1 | 24600 | 21400 | 880 | 3500 | 5000 |
| LR5206KDD | 510 | 72 | 30 | 23.8 | 24 | -- | 1 | 24600 | 21400 | 880 | 3500 | 5000 |
| LR5206KDDU | 510 | 72 | 30 | 23.8 | 24 | 500 | 1 | 24600 | 21400 | 880 | 3500 | 5000 |
| LR5207NPP | 660 | 80 | 35 | 27 | 27 | -- | 1.1 | 30500 | 22400 | 927 | 2800 | 3900 |
| LR5207NPPU | 660 | 80 | 35 | 27 | 27 | 500 | 1.1 | 30500 | 22400 | 927 | 2800 | 3900 |
| LR5207KDD | 660 | 80 | 35 | 27 | 27 | -- | 1.1 | 30500 | 22400 | 927 | 2800 | 3900 |
| LR5207KDDU | 660 | 80 | 35 | 27 | 27 | 500 | 1.1 | 30500 | 22400 | 927 | 2800 | 3900 |
| LR5208NPP | 750 | 85 | 40 | 30.2 | 30 | -- | 1.1 | 34500 | 25500 | 1060 | 2500 | 3500 |
| LR5208NPPU | 750 | 85 | 40 | 30.2 | 30 | 500 | 1.1 | 34500 | 25500 | 1060 | 2500 | 3500 |
| LR5208KDD | 750 | 85 | 40 | 30.2 | 30 | -- | 1.1 | 34500 | 25500 | 1060 | 2500 | 3500 |
| LR5208KDDU | 750 | 85 | 40 | 30.2 | 30 | 500 | 1.1 | 34500 | 25500 | 1060 | 2500 | 3500 |
