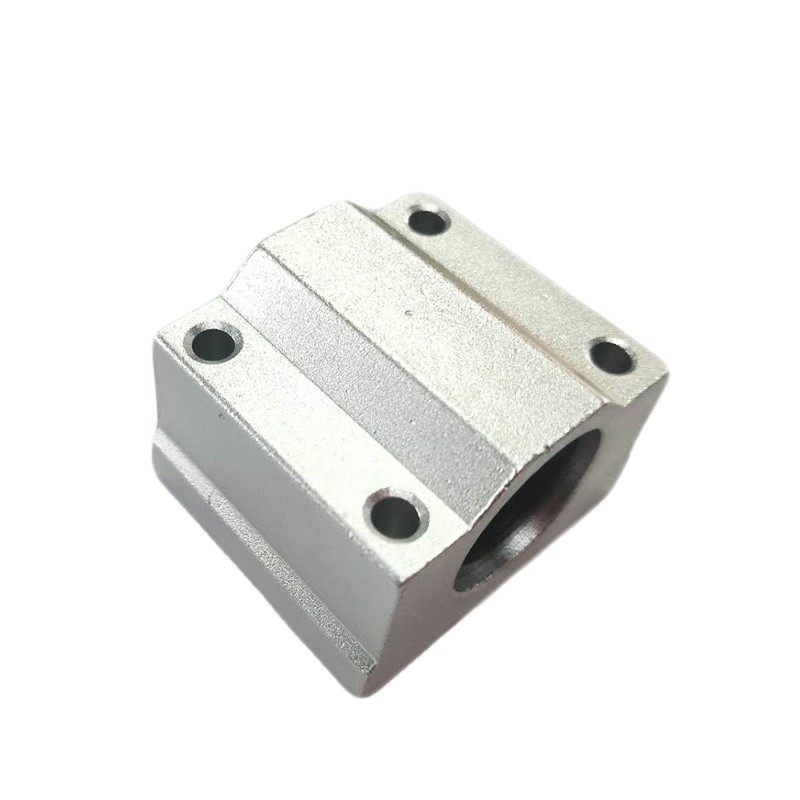

SC12UU 12*29*36mm Linear Motion Bearing Slide Block Bearing

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: SC12UU

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price
Highlight:

12*29*36mm Linear Motion Bearing

,

SC12UU Linear Motion Bearing

,

SC12UU Slide Block Bearing

Material:
Chrome Steel
Precision Rating:
P0 P4 P5 P6
Cage:
Steel Cage.Brass Cage.Nylon Cage
Size:
12*29*36mm
Type:
LINEAR, Linear
Hardness:
59-63 HRC
Material:
Chrome Steel
Precision Rating:
P0 P4 P5 P6
Cage:
Steel Cage.Brass Cage.Nylon Cage
Size:
12*29*36mm
Type:
LINEAR, Linear
Hardness:
59-63 HRC
SC12UU 12*29*36mm Linear Motion Bearing Slide Block Bearing

Good Quality SC12UU With Size 12*29*36mm Linear Motion Slide Block Bearing SC12UU



Product Description of linear motion bearing



Product Description

Bearing Description:

Structure and features of linear bearing is a shell, special ball, retainer ring or a ring with both ends of the card formed. Cage within the device in the case, from both ends of the clasp or ring fixed to ball in the cage track surface a repeating cycle of movement. And shell after adequate heat treatment to a certain level of hardness, to ensure the accuracy and stability of movement and life. Ball cage formed by the nylon resin injection pressure, which can reduce the ball and the retainer between the noise and wear, and play the guiding role of accurate, linear bearings allow the use of the temperature is 80 or less.
1. Linear bearing is a low cost production of linear motion systems, for unlimited travel in conjunction with the cylinder axis.
2. As was carrying the ball with the axis point of contact, so use small loads.
3. Ball rotation with minimal friction , which can get a smooth precision movement.

Drawing:Good Quality SC12UU With Size 12*29*36mm Linear Motion Slide Block Bearing SC12UU



Feature

1. Dynamic and static friction resistance difference is small, which is helpful to improve the response speed and sensitivity of CNC system.
2. The driving power is small, which reduces the energy consumption.
3. High positioning accuracy and repeat positioning accuracy.
4. By increasing the preload, the rigidity is greatly enhanced.
5. Using paired guide rais, it has the effect of homogenizing error.
6. Can withstand the load from up and down or so.
7. The end and the side can be manual or automatic lubricated through oil cup.
8. It has simplified the design and manufacture of mechanical structure, therefore reduced themanufacturing cost.



Standard Basic load rating Weight (gf) Dimensionsmm)
Designation Liner Bearing Dynamic C N Static Co N Shaft Diameter Nominal Dimensions(mm) SC...UU
h D W H G A J E S1×I S2 K L
SC8UU LM8UU 260 400 56 Φ8 11 17 34 22 18 6 24 5 M4×8 Φ3.4 18 30
SC10UU LM10UU 370 540 90 Φ10 13 20 40 26 21 8 28 6 M5×12 Φ4.3 21 35
SC12UU LM12UU 410 590 112 Φ12 15 21 42 28 24 8 30.5 5.75 M5×12 Φ4.3 26 36
SC13UU LM13UU 500 770 123 Φ13 15 22 44 30 24.5 8 33 5.5 M5×12 Φ4.3 26 39
SC16UU LM16UU 770 1170 189 Φ16 19 25 50 38.5 32.5 9 36 7 M5×12 Φ4.3 34 44
SC20UU LM20UU 860 1370 237 Φ20 21 27 54 41 35 11 40 7 M6×12 Φ5.2 40 50
SC25UU LM25UU 980 1560 555 Φ25 26 38 76 51.5 42 12 54 11 M8×18 Φ7 50 67
SC30UU LM30UU 1560 2740 685 Φ30 30 39 78 59.5 49 15 58 10 M8×18 Φ7 58 72
SC35UU LM35UU 1600 3130 1100 Φ35 34 45 90 68 54 18 70 10 M8×18 Φ7 60 80
SC40UU LM40UU 2150 4010 1600 Φ40 40 51 102 78 62 20 80 11 M10×25 Φ8.7 60 90
SC50UU LM50UU 3820 7930 3350 Φ50 52 61 122 102 80 25 100 11 M10×25 Φ8.7 80 110



SCS series SCS6UU/LUU to SCS60UU/LUU
SCE series SCE6UU/LUU to SCE60UU/LUU
SCS..AJ series SCS6AJ/LUU to SCS60AJ/LUU
SBR series SBR10UU/LUU to SBR50UU/LUU
TBR series TBR16UU/LUU to TBR30UU/LUU
SFH series SHF8 to SHF60
SK series SK8 to SK60
SCV series SC8VUU to SC60VUU
SCEV series SCE8VUU to SCE60VUU





Application Area

Linear bearings are widely used in electronic equipment, tensile testing machine and the digital three-dimensional coordinate measuring equipment, precision equipment, and multi axis machine tools, presses, tool grinder, automatic gas cutting machine, printer, card sorting machine, food packing machines and other industrial machinery sliding components.
