Product Details
Place of Origin: China
Brand Name: SFT
Model Number: SMA8UU
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Material: |
Aluminum |
Precision Rating: |
P0 P4 P5 P6 |
Cage: |
Steel Cage |
Application: |
Printing Machinery /textile Machinery/3D/CNC |
Type: |
LINEAR, Linear |
Hardness: |
59-63 HRC |
Material: |
Aluminum |
Precision Rating: |
P0 P4 P5 P6 |
Cage: |
Steel Cage |
Application: |
Printing Machinery /textile Machinery/3D/CNC |
Type: |
LINEAR, Linear |
Hardness: |
59-63 HRC |

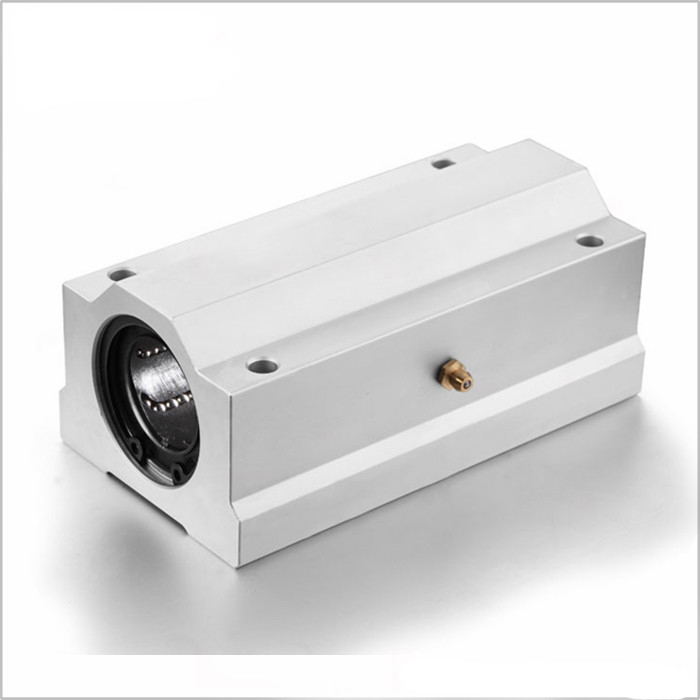

Cheap Ball Units SMA8UU Aluminium Motion Bearing Shaft Support Sk20 Slide Sbr20 Linear Case Unit
Product Description of linear motion bearing
This is a case unit with the standard linear bearing installed in a small and light aluminum case.
The slide unit series is a line of standardized slide bearing housings and shaft supporters to enable smooth linear motion using slide bearings and shafts. slide units are designed to optimize the performance of all slide bearings including clearance-adjustable and open types. These slide units are made mainly of aluminum, providing high corrosion resistance.
MODEL:
1.STANDARD:
SMA12UU SMA13UU SMA16UU SMA20UU SMA25UU SMA30UU SMA35UU SMA40UU SMA50UU
SBR12UU SBR13UU SBR16UU SBR20UU SBR25UU SBR30UU SBR35UU SBR40UU SBR50UU
2.LONG TYPE: 1 housing with 2 bearings
SMA12LUU SMA13LUU SMA16LUU SMA20LUU SMA25LUU SMA30LUU SMA35LUU SMA40LUU SMA50LUU
SBR12LUU SBR13LUU SBR16LUU SBR20LUU SBR25LUU SBR30LUU SBR40LUU SBR50LUU
3. TBR series: with flange,used with TBR shaft support rail units.
TBR16UU TBR20UU TBR25UU TBR30UU.
1. Dynamic and static friction resistance difference is small, which is helpful to improve the response speed and sensitivity of CNC system.
2. The driving power is small, which reduces the energy consumption.
3. High positioning accuracy and repeat positioning accuracy.
4. By increasing the preload, the rigidity is greatly enhanced.
5. Using paired guide rais, it has the effect of homogenizing error.
6. Can withstand the load from up and down or so.
7. The end and the side can be manual or automatic lubricated through oil cup.
8. It has simplified the design and manufacture of mechanical structure, therefore reduced themanufacturing cost.
| MODEL NO. | SHAFT DIAMETER | MAIN DIMENSIONS | MOUNTING DIMENSIONS | WEIGHT(kg) | |||||||||||
| h | E | W | L | F | G | T | B | C | K | S1 | S2 | l | |||
| SMA8 | 8 | 11 | 17 | 34 | 30 | 22 | 18 | 6 | 24 | 18 | 5 | M4 | 3.4 | 8 | 0.052 |
| SMA10 | 10 | 13 | 20 | 40 | 35 | 26 | 21 | 8 | 28 | 21 | 6 | M5 | 4.3 | 12 | 0.092 |
| SMA12 | 12 | 15 | 21 | 42 | 36 | 28 | 24 | 8 | 30.5 | 26 | 5.75 | M5 | 4.3 | 12 | 0.102 |
| SMA13 | 13 | 15 | 22 | 44 | 39 | 30 | 24.5 | 8 | 33 | 26 | 5.5 | M5 | 4.3 | 12 | 0.12 |
| SMA16 | 16 | 19 | 25 | 50 | 44 | 38.5 | 32.5 | 9 | 36 | 34 | 7 | M5 | 4.3 | 12 | 0.2 |
| SMA20 | 20 | 21 | 27 | 54 | 50 | 41 | 35 | 11 | 40 | 40 | 7 | M6 | 5.2 | 12 | 0.255 |
| SMA25 | 25 | 26 | 38 | 76 | 67 | 51.5 | 42 | 12 | 54 | 50 | 11 | M8 | 7 | 18 | 0.6 |
| SMA30 | 30 | 30 | 39 | 78 | 72 | 59.5 | 49 | 15 | 58 | 58 | 10 | M8 | 7 | 18 | 0.735 |
| SMA35 | 35 | 34 | 45 | 90 | 80 | 68 | 54 | 18 | 70 | 60 | 10 | M8 | 7 | 18 | 1.1 |
| SMA40 | 40 | 40 | 51 | 102 | 90 | 78 | 62 | 20 | 80 | 60 | 11 | M10 | 8.7 | 25 | 1.59 |
| SMA50 | 50 | 52 | 61 | 122 | 110 | 102 | 80 | 25 | 100 | 80 | 11 | M10 | 8.7 | 25 | 3.34 |
| SMA60 | 60 | 58 | 66 | 132 | 122 | 114 | 94 | 30 | 108 | 90 | 12 | M12 | 10.7 | 25 | 4.72 |
| SCS series | SCS6UU/LUU to SCS60UU/LUU |
| SCE series | SCE6UU/LUU to SCE60UU/LUU |
| SCS..AJ series | SCS6AJ/LUU to SCS60AJ/LUU |
| SBR series | SBR10UU/LUU to SBR50UU/LUU |
| TBR series | TBR16UU/LUU to TBR30UU/LUU |
| SFH series | SHF8 to SHF60 |
| SK series | SK8 to SK60 |
| SCV series | SC8VUU to SC60VUU |
| SCEV series | SCE8VUU to SCE60VUU |
Linear bearings are widely used in electronic equipment, tensile testing machine and the digital three-dimensional coordinate measuring equipment, precision equipment, and multi axis machine tools, presses, tool grinder, automatic gas cutting machine, printer, card sorting machine, food packing machines and other industrial machinery sliding components.
