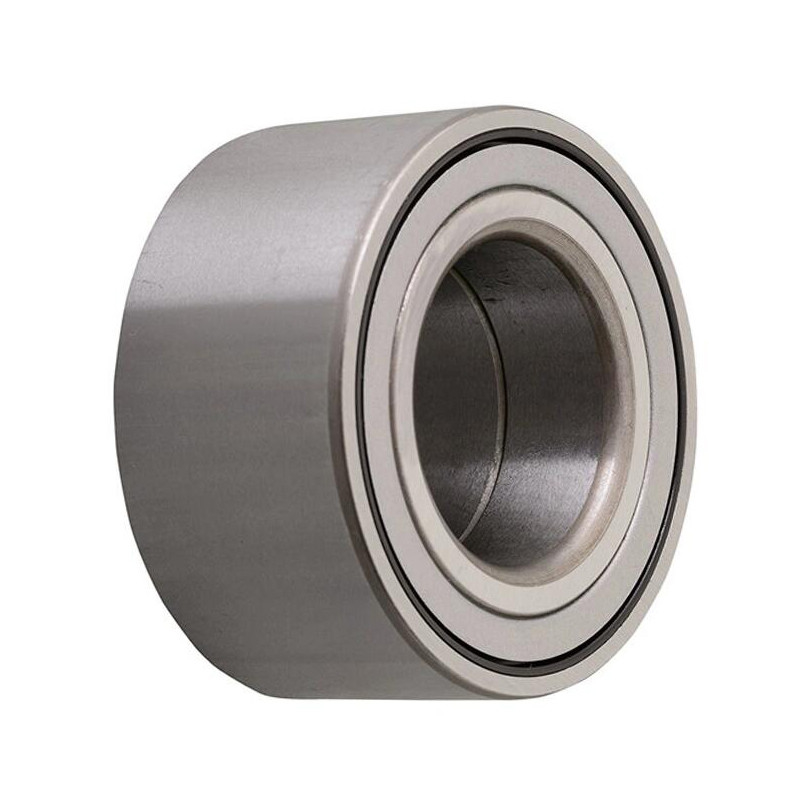

Automotive Front Wheel Bearing DAC407355 BTH-1024C Size 40x73x55 Mm

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: DAC407355

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price
Highlight:

Front Wheel Bearing DAC407355

,

Front Wheel Bearing BTH-1024C

,

Front Wheel Bearing 40x73x55 Mm

Material:
Gcr15
Operating Angle:
Max Working Angle 45 Degree
Size:
40x73x55 Mm
Clearance:
C0 C3 C4
Packing:
Poly Bag, Box
Application:
Machinery
Material:
Gcr15
Operating Angle:
Max Working Angle 45 Degree
Size:
40x73x55 Mm
Clearance:
C0 C3 C4
Packing:
Poly Bag, Box
Application:
Machinery
Automotive Front Wheel Bearing DAC407355 BTH-1024C Size 40x73x55 Mm

Automotive Front Wheel Hub Bearing DAC407355 BTH-1024C



Product Description



A wheel hub assembly (WHA), also referred to as hub assembly, wheel hub unit, wheel hub bearing, etc., is a automotive part used in most cars, passenger vehicles, and light and heavy trucks.

The WHA is located between the brake drums or discs and the drive axle. A wheel is bolted on it. Depending on the construction, the end of hub comes equipped with the splined teeth. They mate the teeth on the axle shaft. The axle hub spins along with the wheels bolted to it and provide the power to the wheels in order to rotate.

A roller bearing between the axle hub and axle shaft ensures easy rotation of the non-drive wheels. On the axle side, it is mounted to the holding bracket from the chassis; on the disc side, the wheel is mounted to the bolts of the WHA. When replacing, a wheel hub assembly should be torqued to the vehicle's specifications to prevent failure.



Cross reference:
90043-63363 front wheel bearing
90363-40079 front wheel bearing
90363-40082 front wheel bearing
90363-T0023 front wheel bearing
90363-W0005 front wheel bearing
90369-40009 front wheel bearing


Specifications: wheel bearing
Inside Diameter 40mm
Outside Diameter 73mm
Width, Outer Race 55mm
Location Front Axle Transmission
Position Left/Right
ABS Equipped No
Generation 1
Type Angular contact ball ,double row



Automotive wheel bearing size list:

P.N. d D B Mass (kg)
25BWD01 25 52 42 0.36
27BWD01J 27 60 50 0.36
28BWD03A 28 58 42 0.4
28BWD01A 28 61 42 0.53
30BWD08 30 55 26 0.26
30BWD01A 30 63 42 0.55
30BWD04 30 68 45 0.69
32BWD05 32 72 45 0.8
34BWD04B 34 64 37 0.82
34BWD11 34 64 37 0.46
34BWD10B 34 66 37 0.51
34BWD07B 34 68 42 0.64
34BWD09A 34 68 37 0.54
35BWD19E 35 65 37 0.48
35BWD07 35 68 30 0.48
35BWD07A 35 68 30 0.48
35BWD16 35 68 36 0.48
35BWD06A 35 72 31 0.55
36BWD04 36 68 33 0.48
36BWD03 36 72 42 0.68
