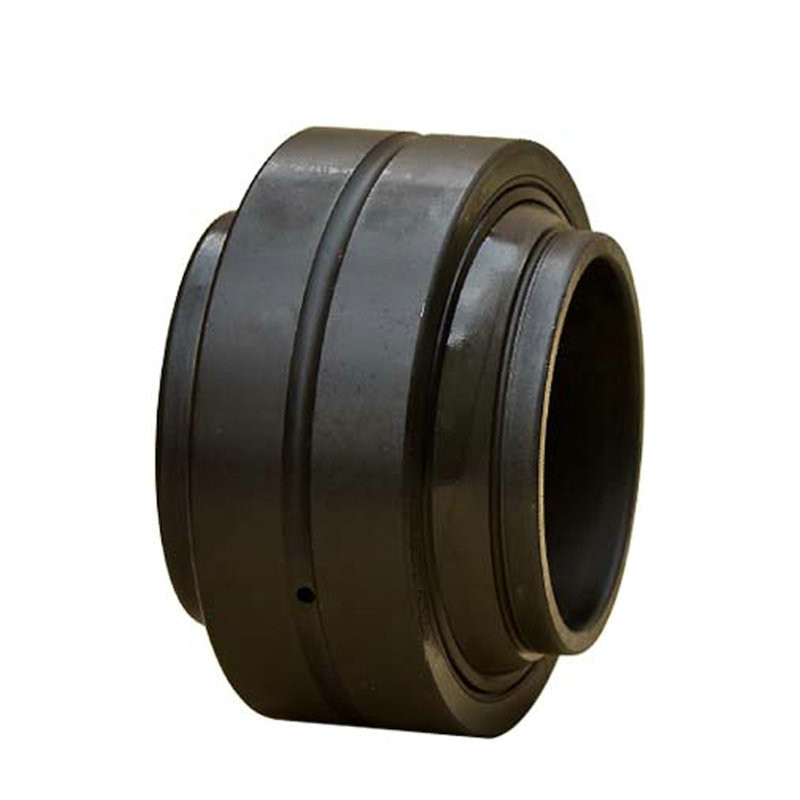

GEEW40ES Thrust Plain Shaft Bearing Radial Spherical Bearing

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: GEEW40ES

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price
Highlight:

GEEW40ES Thrust Plain Shaft Bearing

,

GEEW40ES Radial Spherical Bearing

,

GEEW40ES

OD:
62mm
ID:
40mm
Material:
Steel/Steel And Steel/PTFE Fabric Material
Type:
Geew Spherical Plain Bearing
Application:
Industry,engineering
Sliding Contact Surfaces:
Steel / PTEF Composite
OD:
62mm
ID:
40mm
Material:
Steel/Steel And Steel/PTFE Fabric Material
Type:
Geew Spherical Plain Bearing
Application:
Industry,engineering
Sliding Contact Surfaces:
Steel / PTEF Composite
GEEW40ES Thrust Plain Shaft Bearing Radial Spherical Bearing

GEEW40ES Thrust Plain Shaft Bearing / Radial Spherical Bearing Manufacturer



Product Description of Spherical Plain Bearing:

1. Material: the inner and outer rings are bearing steel(GCr15).
2. Heat Treatment: the inner and outer rings are quenched and phosphating.
3. Structure: There are oil groove and oil hole in the inner and outer ring.The outer ring has an axial slot. Sealing rings are attached on the both of the sides.
4. The sliding surface coated with MoS2 powder lubricant.
5. Performance Characteristic: It has the advantages of abrasion resistance, corrosion resistance,and self aligning . It applies to the machine which requires heavy radial load and axial load in a small-range direction.

Features of Metric Size Spherical plain bearing

• Extended Inner ring eliminating need for locating spacers.

• Sliding surface: Steel on Steel - MoS2 treated.

• Single fracture design.

• Relubricatable through annular grooves and oil holes in inner & outer rings (ES- Suffix)

SPECIFICATION
Model GEEW40ES
Material Stainless Steel / PTFE
Inner diameter 40mm
Outer diameter 62mm
ball width 40mm
Model Available GE, GEES2RS, GAC, GEC, GEG, GEZ, GEEM, GET, ......
Application Agricultural machinery, Shock absorber, etc
Package Tube, carton box, wooden box, pallet
Delivery time 1 day for sample, 3-5 day for medium order, 10-20 day for big order quantity
OEM Accept
Payment terms TT, L.C, D/A, D/P, Western Union, Paypal

GEG40ES/GEEW40ES Metric Size Spherical Plain Bearing

GEEW40ES Thrust Plain Shaft Bearing / Radial Spherical Bearing Manufacturer

Part # Ref # Dimensions (mm) Load Ratings kN Weight LBS
d D B C d1 dk rs r1s a Dynamic Static
max min min «
GEG12ES GEEW12ES 12 22 12 7 15.5 18 0.3 0.3 4 10 53 0.022
GEG15ES GEEW15ES 15 26 15 9 18.5 22 0.3 0.3 5 16 84 0.031
GEG16ES GEEW16ES 16 28 16 9 20 23 0.3 0.3 4 17 85 0.035
GEG17ES GEEW17ES 17 30 17 10 21 25 0.3 0.3 7 21 106 0.044
GEG20ES GEEW20ES 20 35 20 12 25 29 0.3 0.3 4 30 146 0.071
GEG25ES GEEW25ES 25 42 25 16 30.5 35.5 0.6 0.6 4 48 240 0.131
GEG30ES GEEW30ES 30 47 30 18 34 40.7 0.6 0.6 4 62 310 0.168
GEG32ES GEEW32ES 32 52 32 18 37 44 0.6 1 4 65 328 0.182
GEG35ES GEEW35ES 35 55 35 20 40 47 0.6 1 4 79 399 0.253
GEG40ES GEEW40ES 40 62 40 22 46 53 0.6 1 4 99 495 0.338
GEG45ES GEEW45ES 45 68 45 25 52 60 0.6 1 4 127 637 0.481
GEG50ES GEEW50ES 50 75 50 28 57 66 0.6 1 4 156 780 0.558
GEG60ES GEEW60ES 60 90 60 36 68 80 1 1 4 245 1220 1.15
GEG63ES GEEW63ES 63 95 63 36 71.5 83 1 1 4 253 1260 1.25
GEG70ES GEEW70ES 70 105 70 40 78 92 1 1 4 313 1560 1.71
GEG80ES GEEW80ES 80 120 80 45 91 105 1 1 4 400 2000 2.39
GEG90ES GEEW90ES 90 130 90 50 99 115 1 1 4 488 2440 3.21
GEG100ES GEEW100ES 100 150 100 55 113 130 1 1 4 607 3030 4.79
GEG110ES GEEW110ES 110 160 110 55 124 140 1 1 4 654 3270 5.78
GEG125ES GEEW125ES 125 180 125 70 138 160 1 1 4 950 4750 8.49
GEG160ES GEEW160ES 160 230 160 80 177 200 1 1 4 1360 6800 16.5
GEG200ES GEEW200ES 200 290 200 100 221 250 1.1 1.1 4 2120 10600 32.1
GEG250ES GEEW250ES 250 400 250 120 317 350 1.1 1.1 4 3750 17800 99.1
GEG320ES GEEW320ES 320 520 320 160 405 450 1.1 1.1 4 6200 30500 225



Design and application

GEG..E: As Series GE..E, but with wider inner ring and larger outside diameter, for bearing arrangement where a larger angle of tilt is needed, which is suitable for larger loads mechanism.

GEG..ES: As series GE..ES, but wider inner ring and larger diameter, for bearing arrangement where a larger angle if tilt is needed which is suitable for larger loads mechanism.

GEG..ES 2RS: As series GE..ES 2RS, but wider inner ring and larger diameter, for bearing arrangement where a larger angle if tilt is needed which is suitable for larger loads mechanism, or a hole in the rod end. It has characteristics of large load capacity, easy mounting and dismounting and mechanism simplification.
