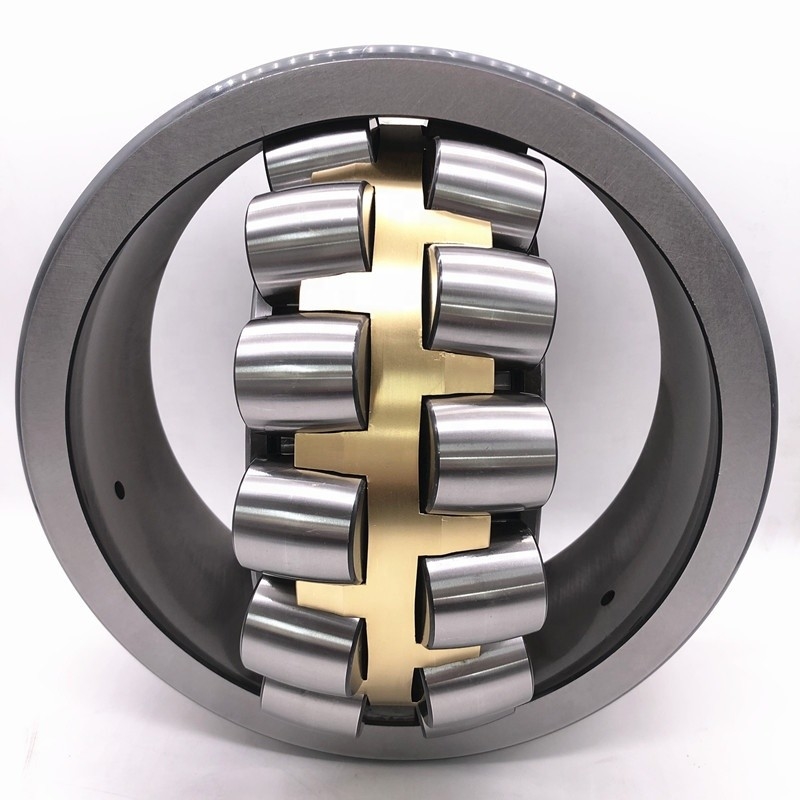

22330 MB Spherical Roller Thrust Bearing For Oil Field Rotary Table

Name: 22330 MB Spherical Roller Thrust Bearing For Oil Field Rotary Table
Brand: SFT
SKU: 22330 MB
Rating: 4.8 (145 reviews)

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: 22330 MB

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                22330 MB Spherical Roller Thrust Bearing, Rotary Table Spherical Roller Thrust Bearing, 22330 MB sealed spherical roller bearings


Noise Level:	Z1,Z2,Z3,Z4	Clearance:	C0 C2 C3 C4
OD:	290 Mm	Weight:	31 Kg
Number Of Row:	Double Row	Seals Type:	Open

Noise Level:	Z1,Z2,Z3,Z4
Clearance:	C0 C2 C3 C4
OD:	290 Mm
Weight:	31 Kg
Number Of Row:	Double Row
Seals Type:	Open

22330 MB Spherical Roller Thrust Bearing For Oil Field Rotary Table

22330 MB Spherical roller bearing for oil field rotary table

Product Description

Spherical roller bearings have double-row rollers, one consumable ball, two surface rollers inside, and two outer ring surfaces that are oriented at an angle when rolling. Avoid the influence of the angle between the shaft and the bearing housing on the bearing or shaft bending, and it is suitable for installation and use or the situation where the shaft is bent and attracts the angle. To load.

Spherical roller bearings are double row, self-retaining units comprising solid outer rings with a concave raceway, solid inner rings and barrel rollers with cages. The inner rings have cylindrical or tapered bores.

The symmetrical barrel rollers orient themselves freely on the concave outer ring raceway. As a result, shaft flexing and misalignment of the bearing seats are compensated

Bearing Number	Boundary dimensions(mm)				Basic load ratings(kN)		Limiting speeds(rpm)		Mass(Kg)
	d	D	B	rs min	Cr	Cor	Grease	Oil	(Approx.)
22344K	220	460	145	5	2350	3500	660	1,000	115
22344KW33C3	220	460	145	5	2350	3500	660	1,000	115
22348K	240	500	155	5	2720	4100	600	930	145
22348KW33C3	240	500	155	5	2720	4100	600	930	145
22348W33C3	240	500	155	5	2720	4100	600	930	148
22352	260	540	165	6	3100	4750	550	850	183
22352K	260	540	165	6	3100	4750	550	850	179
22356	280	580	175	6	3500	5350	500	780	224
22356K	280	580	175	6	3500	5350	500	780	220
22356KW33C3	280	580	175	6	3500	5350	500	780	220
22356W33C3	280	580	175	6	3500	5350	500	780	224
22360	300	620	185	7.5	3600	5400	470	720	270
22360K	300	620	185	7.5	3600	5400	470	720	265
22360KW33C3	300	620	185	7.5	3600	5400	470	720	265
22360W33C3	300	620	185	7.5	3600	5400	470	720	270
23034K	170	260	67	2.1	630	1080	1,100	1,800	12.3
23034KW33C3	170	260	67	2.1	630	1080	1,100	1,800	12.3
23034W33C3	170	260	67	2.1	630	1080	1,100	1,800	12.7
23036	180	280	74	2.1	740	1290	1,100	1,700	16.7
23036K	180	280	74	2.1	740	1290	1,100	1,700	16.1
23036KW33C3	180	280	74	2.1	740	1290	1,100	1,700	16.1
23036W33C3	180	280	74	2.1	740	1290	1,100	1,700	16.7
23038	190	290	75	2.1	755	1350	1,000	1,600	17.7
23038K	190	290	75	2.1	755	1350	1,000	1,600	17.1
23038KW33C3	190	290	75	2.1	755	1350	1,000	1,600	17.1
23038W33C3	190	290	75	2.1	755	1350	1,000	1,600	17.7
23040	200	310	82	2.1	915	1620	960	1,500	22.7
23040K	200	310	82	2.1	915	1620	960	1,500	21.9
23040KW33C3	200	310	82	2.1	915	1620	960	1,500	21.9
23040W33C3	200	310	82	2.1	915	1620	960	1,500	22.7
23130W33C3	150	250	80	2.1	730	1190	1,100	1,700	15.6
23132	160	270	86	2.1	840	1370	1,000	1,600	19.8
23132K	160	270	86	2.1	840	1370	1,000	1,600	19.2
23132KW33C3	160	270	86	2.1	840	1370	1,000	1,600	19.2
23132W33C3	160	270	86	2.1	840	1370	1,000	1,600	19.8
23134	170	280	88	2.1	885	1490	960	1,500	21.5
23134K	170	280	88	2.1	885	1490	960	1,500	20.8
23134KW33C3	170	280	88	2.1	885	1490	960	1,500	20.8
23134W33C3	170	280	88	2.1	885	1490	960	1,500	21.5
23136	180	300	96	3	1030	1730	900	1,400	25.1
23136K	180	300	96	3	1030	1730	900	1,400	24.2
23136KW33C3	180	300	96	3	1030	1730	900	1,400	24.2
23136W33C3	180	300	96	3	1030	1730	900	1,400	25.1
23138	190	320	104	3	1190	2020	850	1,300	35.3
23138K	190	320	104	3	1190	2020	850	1,300	34.2
23224W33C3	120	215	76	2.1	585	880	1,300	2,000	12.1
23226	130	230	80	3	685	1,060	1,200	1,900	14.3
23226K	130	230	80	3	685	1,060	1,200	1,900	13.9
23226KW33C3	130	230	80	3	685	1,060	1,200	1,900	13.9
23226W33C3	130	230	80	3	685	1,060	1,200	1,900	14.3
23228	140	250	88	3	805	1,270	1,100	1,700	18.8
23228K	140	250	88	3	805	1,270	1,100	1,700	18.2
23228KW33C3	140	250	88	3	805	1,270	1,100	1,700	18.2
23228W33C3	140	250	88	3	805	1,270	1,100	1,700	18.8
23230	150	270	96	3	935	1,460	1,000	1,600	24.1
23230K	150	270	96	3	935	1,460	1,000	1,600	23.4
23230KW33C3	150	270	96	3	935	1,460	1,000	1,600	23.4
23940KW33C3	200	280	60	2.1	545	1100	1,000	1,600	11.7
23940W33C3	200	280	60	2.1	545	1100	1,000	1,600	12.1
23944	220	300	60	2.1	565	1170	930	1,400	13.1
23944K	220	300	60	2.1	565	1170	930	1,400	12.7
23944KW33C3	220	300	60	2.1	565	1170	930	1,400	12.7
23944W33C3	220	300	60	2.1	565	1170	930	1,400	13.1
23948	240	320	60	2.1	565	1190	840	1,300	14
23948K	240	320	60	2.1	565	1190	840	1,300	13.6
23948KW33C3	240	320	60	2.1	565	1190	840	1,300	13.6
23948W33C3	240	320	60	2.1	565	1190	840	1,300	14
23952	260	360	75	2.1	760	1580	770	1,200	24
23952W33C3	260	360	75	2.1	760	1580	770	1,200	24
23956	280	380	75	2.1	830	1750	710	1,100	26.4
24032	160	240	80	2.1	650	1200	1,100	1,700	13
24032K30	160	240	80	2.1	650	1200	1,100	1,700	12.8
24032K30W33C3	160	240	80	2.1	650	1200	1,100	1,700	12.8
24032W33C3	160	240	80	2.1	650	1200	1,100	1,700	13
24034	170	260	90	2.1	800	1470	1,000	1,600	17.7
24034K30	170	260	90	2.1	800	1470	1,000	1,600	17.4
24034K30W33C3	170	260	90	2.1	800	1470	1,000	1,600	17.4
24034W33C3	170	260	90	2.1	800	1470	1,000	1,600	17.7
24036	180	280	100	2.1	965	1770	950	1,500	23.3
24036K30	180	280	100	2.1	965	1770	950	1,500	22.9
24036K30W33C3	180	280	100	2.1	965	1770	950	1,500	22.9
24132	160	270	109	2.1	1,040	1,780	1000	1,600	26
24132K30	160	270	109	2.1	1,040	1,780	1000	1,600	25.6
24132K30W33C3	160	270	109	2.1	1,040	1,780	1000	1,600	25.6
M667947D/M667911	409.575	546.1	161.925	6.4	1.6	2380	6220	110

Application

Spherical bearings are used in countless industrial applications, where there are heavy loads, moderate speeds and possibly misalignment. Some common application areas are:gearboxes wind turbines continuous casting machines material handling pumps mechanical fans and blowers mining and construction equipment pulp and paper processing equipment marine propulsion and offshore drilling off-road vehicles.
