Product Details
Place of Origin: China
Brand Name: SFT
Model Number: STO17
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Number Of Row: |
Single Row |
RNAST5: |
17*40*16mm |
Type: |
Needle |
Feature: |
High Speed Low Noise |
Precision Rating: |
P0,P4,P6 |
Bore Size: |
16.98 - 17 Mm |
Number Of Row: |
Single Row |
RNAST5: |
17*40*16mm |
Type: |
Needle |
Feature: |
High Speed Low Noise |
Precision Rating: |
P0,P4,P6 |
Bore Size: |
16.98 - 17 Mm |

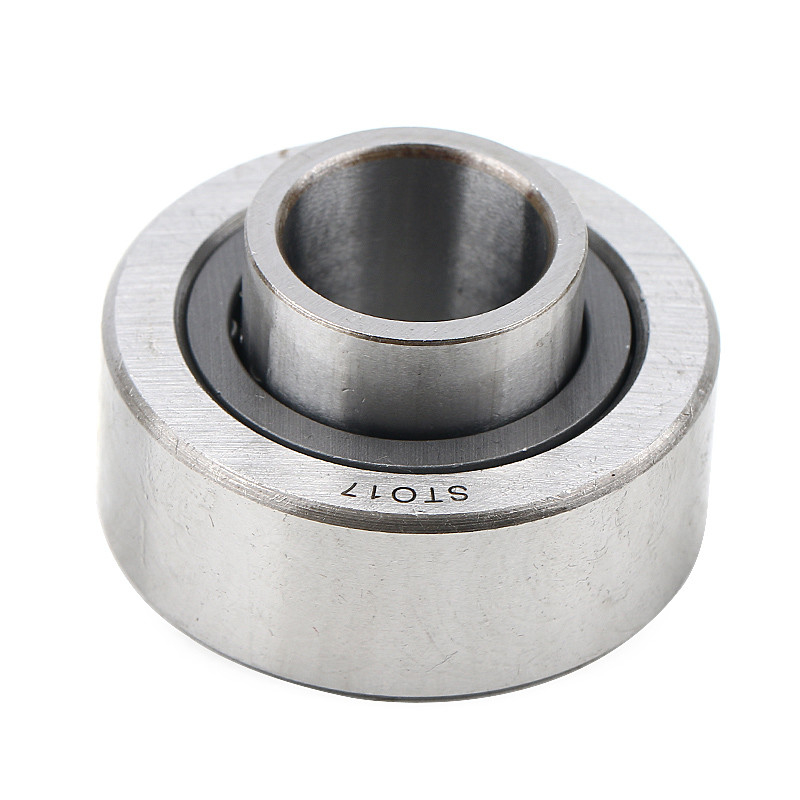

Roller Follower Bearing STO 17 17X STO17X STO17 Needle Roller Bearing17*40*16mm
Needle Roller Bearings are the roller bearings with cylindrical roller elements, compared with the diameter, the needle roller are both thin and long, so they are called needle roller. Although the section is small, the type of bearings still has the high ablity of load, it specially can be used to the situation of being restricted of the radial space..
Product construction:
Needle roller bearings consist of an inner race (shaft), needle cage, needle rollers and an outer race. The rollers are cylindrical, thin, and long. These bearings are compact because there is less clearance between the diameter of the shaft and that of the bearing. This quality makes them suitable for situations where there is limited radial space.
Special Directions:
Bearing running clearance and inner-cutting roundness should be regulated according to different
conditions.
Machine tolls should be used for press-in fitting or thermal fitting when install the bearing.
Limited by plastic cages(suffixed with TN) and sealing-element material ,operating temperature
is -30℃--+100℃
For general-disposition design of bearings,refer to the relevant recommendation in the applied
technology of roller bearings.
Part of the bearing specification :
| Dimensions | Dynamic | Static | Dynamic | Static | Designations | ||
| D(mm) | d(mm) | C(mm) | C kn | C0 | Fr | F0r | |
| 19 | 6 | 9,8 | 3,74 | 4,5 | 4,25 | 6,1 | STO 6 TN |
| 19 | 6 | 11,8 | 3,52 | 3 | 1,93 | 2,75 | NA 22/6.2RS |
| 24 | 8 | 9,8 | 4,13 | 5,4 | 7,5 | 10,8 | STO 8 TN |
| 24 | 8 | 11,8 | 4,46 | 4,4 | 5 | 7,1 | NA 22/8.2RS |
| 30 | 10 | 11,8 | 8,25 | 8,8 | 8,5 | 12,2 | STO 10 |
| 30 | 10 | 13,8 | 6,44 | 7,2 | 12 | 17 | NA 2200.2RS |
| 32 | 12 | 11,8 | 8,8 | 9,8 | 8,3 | 12 | STO 12 |
| 32 | 12 | 13,8 | 6,93 | 8,15 | 11,6 | 16,6 | NA 2201.2RS |
| 35 | 15 | 11,8 | 9,13 | 10,6 | 7,1 | 10 | STO 15 |
| 35 | 15 | 13,8 | 7,21 | 9 | 9,65 | 13,7 | NA 2202.2RS |
| 40 | 17 | 15,8 | 9,35 | 12,9 | 16 | 22,8 | NA 2203.2RS |
| 40 | 17 | 15,8 | 14,2 | 17,6 | 12 | 17,3 | STO 17 |
| 47 | 20 | 15,8 | 16,1 | 21,2 | 18,6 | 26,5 | STO 20 |
| 47 | 20 | 17,8 | 15,4 | 17,3 | 17,6 | 25,5 | NA 2204.2RS |
| 52 | 25 | 15,8 | 16,5 | 22,8 | 18 | 26 | STO 25 |
| 52 | 25 | 17,8 | 16,1 | 19 | 17,3 | 24,5 | NA 2205.2RS |
| 62 | 30 | 19,8 | 17,6 | 24,5 | 28,5 | 40,5 | NA 2206.2RS |
| 62 | 30 | 19,8 | 22,9 | 34,5 | 23,6 | 33,5 | STO 30 |
| 72 | 35 | 19,8 | 25,5 | 40,5 | 36 | 51 | STO 35 |
| 72 | 35 | 22,7 | 22 | 34 | 39 | 56 | NA 2207.2RS |
| 80 | 40 | 19,8 | 23,8 | 39 | 34,5 | 49 | STO 40 |
| 80 | 40 | 22,7 | 27 | 39 | 37,5 | 53 | NA 2208.2RS |
| 85 | 45 | 19,8 | 25,1 | 43 | 34,5 | 50 | STO 45 |
| 90 | 50 | 19,8 | 26 | 45,5 | 34,5 | 50 | STO 50 |
| 90 | 50 | 22,7 | 27 | 41,5 | 36,5 | 52 | NA 2210.2RS |
Material:
Material for needle roller is GCr15 bearing steel,quench-hardening HRC60-65
Material for inner and outer rings is GCr15 bearing steel,quench-hardening HRC60-65
Material for cages is quality low-carbon steel or reinforced nylon.
