Product Details
Place of Origin: China
Brand Name: SFT
Model Number: SA6T/K
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Connection Screw Shape: |
Male Thread |
Body Material: |
Carbon Steel, Zinc Plated, Chromate Treated |
Feature: |
High Precision |
Ball Material: |
Gcr15 Steel, Heat Treated |
Operating Temperature Range(℃): |
-20~80 |
Surface Hardness: |
HRC60-62 |
Connection Screw Shape: |
Male Thread |
Body Material: |
Carbon Steel, Zinc Plated, Chromate Treated |
Feature: |
High Precision |
Ball Material: |
Gcr15 Steel, Heat Treated |
Operating Temperature Range(℃): |
-20~80 |
Surface Hardness: |
HRC60-62 |

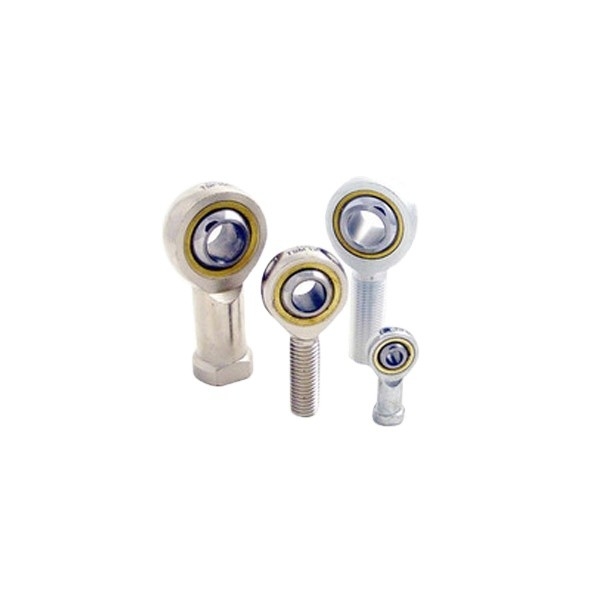

Rod End bearing SA6T/K 6*20*9 fisheye joint bearing
Introduction
Joint bearing is a kind of special structure of sliding bearing. It is simple in structure than the rolling bearing, which is mainly composed of a spherical inner ring and a spherical outer ring, can bear larger load, according to the different types and structures, can be combined load to bear radial load, axial load and radial, axial exist at the same time.
Feature
• Self-Lubrication
• Housing: carbon steel and white zinc plated
• Steel Ball: 52100 chrome steel, precision ground hardened and chrome plated
• Liner: PTFE-Strong & flexible bronze mesh spread with fluorine resin
• Race: Bronze
Application
Joint bearings are widely used in hydraulic engineering, metal forming machine tools, construction machinery, automation equipment, automotive shock absorbers, irrigation machinery and other industries.
Product Standard:
Bearing number |
Dmensions | Load ratings kN/ Dynamic |
Load ratings KN/ Siatic |
Weight kg |
||||||||||
| d | B | dx | C1 max | d2 max | G |
h | L1 min |
L2 max |
R1s min |
a | ||||
| SA5T/K | s | 8 | 11.11 | 6 | 18 | M5x0.8 | 33 | 19 | 42 | 0.3 | 13 | 5.7 | 6 | 0.013 |
| SA6T/K | 6 | 9 | 12.7 | 6.75 | 20 | M6x1.0 | 36 | 21 | 46 | 0.3 | 13 | 7.2 | 7.65 | 0.02 |
| SA8T/K | 8 | 12 | 15.875 | 9 | 24 | M8x1.25 | 42 | 25 | s4 | 0.3 | 1 4 | 11.6 | 12.9 | 0.038 |
| SA10T/K | 10 | 14 | 19.05 | 10.5 | 28 | M10x1.5 | 48 | 28 | 62 | 0.3 | 13 | 14.5 | 18 | 0.055 |
| SA12T/K | 12 | 16 | 22.225 | 12 | 32 | M12X1.75 | 54 | 32 | 70 | 0.3 | 13 | 17 | 24 | 0.85 |
| SA14T/K | 14 | 19 | 25.4 | 13.5 | 36 | M14X2.0 | 60 | 36 | 78 | 0.3 | 16 | 24 | 31 | 0.14 |
| SA16T/K | 16 | 21 | 28.575 | 15 | 42 | M16X2.0 | 66 | 37 | 87 | 0.3 | 15 | 28.5 | 39 | 0.21 |
| SA18T/K | 18 | 23 | 31.75 | 16.5 | 44 | M18X1.5 | 72 | 41 | 94 | 0.3 | 15 | 42.5 | 47.5 | 0.29 |
| SA20T/K | 20 | 25 | 34.925 | 18 | 5o | M20X1.5 | 78 | 45 | 103 | 0.3 | 14 | 42.5 | 57 | 0.38 |
| SA22T/K | 22 | 28 | 38.1 | 20 | 54 | M22X1.5 | 84 | 48 | 111 | 0.3 | 15 | 57 | 68 | 0.48 |
| SA25T/K | 25 | 31 | 42.85 | 22 | 60 | M24X2 | 94 | 5s | 124 | 0.3 | 15 | 68 | 85 | 0.64 |
| SA28T/K | 28 | 35 | 47.6 | 24 | 66 | M27X2 | 103 | 62 | 136 | 0.3 | l5 | 86 | 107 | 0.8 |
| SA30T/K | 30 | 37 | 50.8 | 25 | 70 | M30X2 | 110 | 66 | 145 | 0.3 | 17 | 88 | 114 | 1.1 |
| SA35T/K | 35 | 43 | 57.1 | 28 | 81 | M36X2 | 140 | 8s | 180.5 | 0.3 | 16 | 1.64 | ||
| S140T/K | 40 | 49 | 66.6 | 33 | 91 | M42X2 | 150 | 90 | 195.5 | 1 | 17 | 2.4 | ||
| S150T/K | 50 | 60 | 82.5 | 45 | 117 | M48X2 | 185 | 105 | 243.5 | 1 | 12 | 4.8 | ||
Joint bearing is dominated by an inner and outer sphere within a spherical outer ring,can withstand a greater load.According to their different types and structures that can withstand the radial load,axial load or radial,axial joint load.Since the inner surface of the outer sphere inlaid composite materials,so that the work can be generated in the bearing selflubricating.Generally used for slower swing movement,but also for the tilt angle within a certain range of motion,when the supporting shaft and shaft misalignment large shell hole,still work properly.Self-lubricating auxiliary bearing joints used in water conservancy, specialized machinery and other industries.
