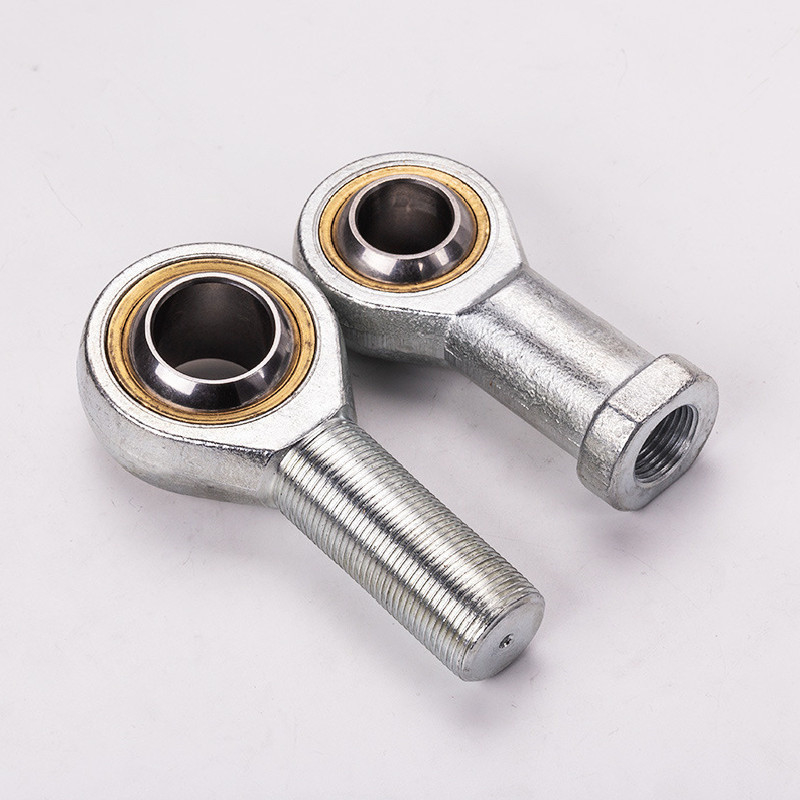

Male Thread Ball Joint Rod Ends Bearing POS16 POS18 Fisheye Bearing

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: POS16 POS18

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price
Highlight:

Rod Ends Bearing POS16

,

Rod Ends Bearing POS18

,

POS16 POS18 Fisheye Bearing

Connection Screw Shape:
Male Thread
Application:
Electric Motors, Automotive Components
Feature:
High Precision
Ball Material:
Gcr15 Steel, Heat Treated
Cage:
Steel Cage.Brass Cage.Nylon Cage
Precision Rating:
High Precision
Connection Screw Shape:
Male Thread
Application:
Electric Motors, Automotive Components
Feature:
High Precision
Ball Material:
Gcr15 Steel, Heat Treated
Cage:
Steel Cage.Brass Cage.Nylon Cage
Precision Rating:
High Precision
Male Thread Ball Joint Rod Ends Bearing POS16 POS18 Fisheye Bearing

male thread ball joint rod end bearing POS16 POS18 fisheye bearing



BWC13239B Sprag Freewheel Clutch One Way Bearing BWC 13239B





Introduction

Joint bearing is a kind of special structure of sliding bearing. It is simple in structure than the rolling bearing, which is mainly composed of a spherical inner ring and a spherical outer ring, can bear larger load, according to the different types and structures, can be combined load to bear radial load, axial load and radial, axial exist at the same time.



Feature

1. Bearings with a stretching rod, stretching with right or left-hand male thread.

2. To plate zinc on the surface of rod body, the housing with a lubricartion hole or a grease nipple.

3. Rod ends permissible operating temperature, are available on - 30 °C to + 80 °C temperature range of use, and keep the right to bear ability.



Application

It is widely used in the industry of engineering hydraulic oil cylinder, metal forming machine, engineering machinery, automation equipment, auto damper, Water Conservancy Machine and so on.

it is generally used in low speed of swing motion, the angular motion, can bear larger load, can bear radial load, axial load or the joint of the radial, axial load.



CODE Dimension(mm) Load ratings
KN
Weight
  d d3 6H B C1 W L3 min d2 L4 h1 L5 d4 d5 d1 α≈ dyn. Cd stat. Cs KG
PHS4 4 M4x0.7 7 5.25 8 8 14 31 24 4 8 9.5 6.5 13 3 5 0.009
PHS5 5 M5×0.8 8 6 9 10 16 35 27 4 8.5 11 7.7 13 3.25 5.7 0.016
PHS6 6 M6×1.0 9 6.75 11 12 18 39 30 5 10 13 8.96 13 4.3 7.2 0.022
PHS8 8 M8×1.25 12 9 14 16 22 47 36 5 12.5 16 10.4 14 7.2 11.6 0.047
PHS10 10 M10×1.5 14 10.5 17 20 26 56 43 6.5 15 19 12.9 13 10 14.5 0.077
PHS12 12 M12×1.75 16 12 19 22 30 65 50 6.5 17.5 22 15.4 13 13.4 17 0.1
PHS14 14 M14×2.0 19 13.5 22 25 34 74 57 8 20 25 16.9 16 17 24 0.16
PHS16 16 M16×2.0 21 15 22 28 40 84 64 8 22 27 19.4 15 21.6 28.5 0.22
PHS18 18 M18×1.5 23 16.5 27 32 44 93 71 10 25 31 21.9 15 26 42.5 0.32
PHS20 20 M20×1.5 25 18 30 33 50 102 77 10 27.5 34 24.4 14 31.5 42.5 0.42
PHS22 22 M22×1.5 28 20 32 37 54 111 84 12 30 38 25.8 15 47.5 68 0.54
PHS25 25 M24×2.0 31 22 36 42 60 124 94 12 33.5 42 29.6 15 47.5 68 0.73
PHS28 28 M27×2.0 35 24 41 48 66 136 103 14 37 46 32.3 15 58 75.5 0.98
PHS30 30 M30×2.0 37 25 41 51 70 145 110 15 40 50 34.8 17 64 88 1.1
