Product Details
Place of Origin: China
Brand Name: SFT
Model Number: GE35ES 2RS
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
OD: |
55mmmm |
ID: |
35mmmm |
Material: |
Steel/Steel And Steel/PTFE Fabric Material |
Type: |
Spherical Plain Bearings |
Application: |
Industry,engineering |
Sliding Contact Surfaces: |
Steel / PTEF Composite |
OD: |
55mmmm |
ID: |
35mmmm |
Material: |
Steel/Steel And Steel/PTFE Fabric Material |
Type: |
Spherical Plain Bearings |
Application: |
Industry,engineering |
Sliding Contact Surfaces: |
Steel / PTEF Composite |

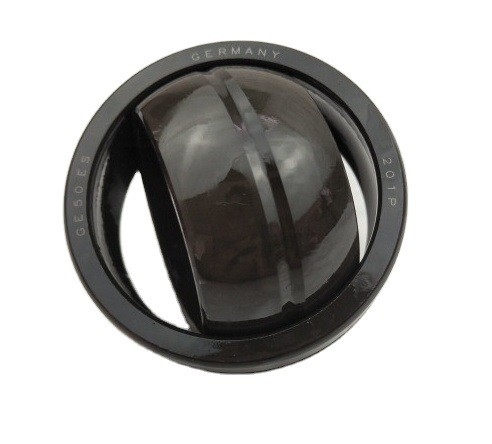

Maintenance Frewheel Radial Spherical Plain Bearing GE60ES 2RS
Product Description of Spherical Plain Bearing:
Radial Spherical plain bearings are design to cater to all heavy loading equipments.
Plain bearings are able to cater to various sliding contact surfaces;
Steel/PTFE composite material and Steel/PTFE fabric material.
Range of production range from ID15mm to ID250mm.
Radial spherical plain bearings requiring maintenance have the sliding contact surface combination steel-on-steel. Bearings with this sliding contact surface combination require regular relubrication. The high wear resistance of the sliding surfaces makes these bearings especially suitable for bearing arrangements where heavy loads of alternating direction, shock loads or heavy static loads have to be accommodated. Bearings which have cylindrical extensions at both sides of the inner ring are intended for applications where normally spacer sleeves are arranged at either side of the bearing, or are specially designed for the bearing arrangements of hydraulic cylinders.
Features of Maintenance Free Radial Spherical Plain Bearing
SPECIFICATION | |
Model | GE35ES/ GE35ES2RS |
Material | Bearing Steel / PTFE |
Inner diameter | 35mm |
Outer diameter | 55mm |
Thickness | 25mm |
Model Available | GE, GEES2RS, GAC, GEC, GEG, GEZ, GEEM, GET, ...... |
Application | Agricultural machinery, Shock absorber, etc |
Package | Tube, carton box, wooden box, pallet |
Delivery time | 1 day for sample, 3-5 day for medium order, 10-20 day for big order quantity |
OEM | Accept |
Payment terms | TT, L.C, D/A, D/P, Western Union, Paypal |
GE ES GEES2RS Lubricated Spherical Plain Bearing
No. | Model | Dimensions(mm) | Load Ratings |
Weight (Kg) |
|||||||||
d | D | B | C | dk | r1 min | r2 min | α | Dynamic | Static | ||||
(KN) | (KN) | ||||||||||||
1 | GE15ES | GE15ES 2RS | 15 | 26 | 12 | 9 | 22 | 0.3 | 0.3 | 8 | 16 | 84 | 0.027 |
2 | GE17ES | GE17ES 2RS | 17 | 30 | 14 | 10 | 25 | 0.3 | 0.3 | 10 | 21 | 106 | 0.041 |
3 | GE20ES | GE20ES 2RS | 20 | 35 | 16 | 12 | 29 | 0.3 | 0.3 | 9 | 30 | 146 | 0.066 |
4 | GE25ES | GE25ES 2RS | 25 | 42 | 20 | 16 | 35.5 | 0.6 | 0.6 | 7 | 48 | 240 | 0.119 |
5 | GE30ES | GE30ES 2RS | 30 | 47 | 22 | 18 | 40.7 | 0.6 | 0.6 | 6 | 62 | 310 | 0.153 |
6 | GE35ES | GE35ES 2RS | 35 | 55 | 25 | 20 | 47 | 0.6 | 1 | 6 | 79 | 399 | 0.233 |
7 | GE40ES | GE40ES 2RS | 40 | 62 | 28 | 22 | 53 | 0.6 | 1 | 7 | 99 | 495 | 0.306 |
8 | GE44ES | GE45ES 2RS | 45 | 68 | 32 | 25 | 60 | 0.6 | 1 | 7 | 127 | 637 | 0.427 |
9 | GE50ES | GE50ES 2RS | 50 | 75 | 35 | 28 | 66 | 0.6 | 1 | 6 | 156 | 780 | 0.546 |
10 | GE60ES | GE60ES 2RS | 60 | 90 | 44 | 36 | 80 | 1 | 1 | 6 | 245 | 1220 | 1.04 |
11 | GE70ES | GE70ES 2RS | 70 | 105 | 49 | 40 | 92 | 1 | 1 | 6 | 313 | 1560 | 1.55 |
12 | GE80ES | GE80ES 2RS | 80 | 120 | 55 | 45 | 105 | 1 | 1 | 6 | 400 | 2000 | 2.31 |
13 | GE90ES | GE90ES 2RS | 90 | 130 | 60 | 50 | 115 | 1 | 1 | 5 | 488 | 2440 | 2.75 |
14 | GE100ES | GE100ES 2RS | 100 | 150 | 70 | 55 | 130 | 1 | 1 | 7 | 607 | 3030 | 4.45 |
15 | GE110ES | GE110ES 2RS | 110 | 160 | 70 | 55 | 140 | 1 | 1 | 6 | 654 | 3270 | 4.82 |
16 | GE120ES | GE120ES 2RS | 120 | 180 | 85 | 70 | 160 | 1 | 1 | 6 | 950 | 4750 | 8.05 |
17 | GE140ES | GE140ES 2RS | 140 | 210 | 90 | 70 | 180 | 1 | 1 | 7 | 1070 | 5350 | 11.02 |
18 | GE160ES | GE160ES 2RS | 160 | 230 | 105 | 80 | 200 | 1 | 1 | 8 | 1360 | 6800 | 14.01 |
19 | GE180ES | GE180ES 2RS | 180 | 260 | 105 | 80 | 225 | 1.1 | 1.1 | 6 | 1530 | 7650 | 18.65 |
20 | GE190ES | GE200ES 2RS | 200 | 290 | 130 | 100 | 250 | 1.1 | 1.1 | 7 | 2120 | 10600 | 28.03 |
21 | GE220ES | GE220ES 2RS | 220 | 320 | 135 | 100 | 275 | 1.1 | 1.1 | 8 | 2320 | 11600 | 35.51 |
22 | GE240ES | GE240ES 2RS | 240 | 340 | 140 | 100 | 300 | 1.1 | 1.1 | 8 | 2550 | 12700 | 39.91 |
Applications of Spherical Plain Bearing:
electric motors, automotive applications, home appliances, industrial equipment.
Radial Spherical plain bearings are design to cater to all heavy loading equipments.
Plain bearings are able to cater to various sliding contact surfaces;
Steel/PTFE composite material and Steel/PTFE fabric material.
Range of production range from ID15mm to ID250mm.
