Home > products > Cylindrical Roller Bearing > 25*52*15mm Cylindrical Roller Bearing NUP205 NJ205 E NUP205EM For Shaft

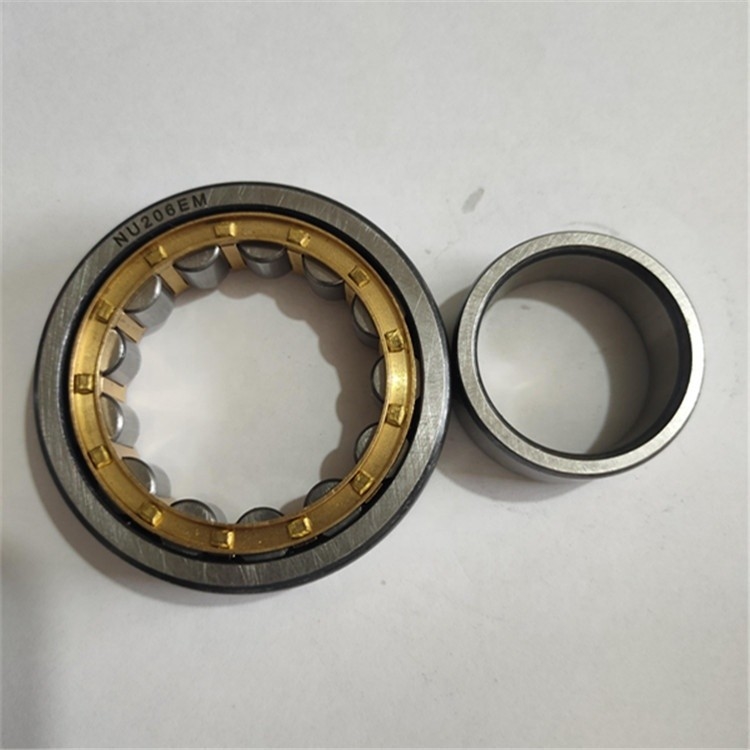

25*52*15mm Cylindrical Roller Bearing NUP205 NJ205 E NUP205EM For Shaft

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: NUP205 NJ205 E NUP205EM

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price
Highlight:

25*52*15mm Cylindrical Roller Bearing

,

NUP205 Cylindrical Roller Bearing

,

NJ205 E Cylindrical Roller Bearing

Lubrication:
Oil Grease Dry
Size:
25*52*15mm
Number Of Row:
Double Row
Seals Type:
OPEN ZZ 2RS RS
CLEARANCE:
C0 C2 C3 C4 C5
Applicable Industries::
Building Material Shops, Machinery Repair Shops, Retail, P
Lubrication:
Oil Grease Dry
Size:
25*52*15mm
Number Of Row:
Double Row
Seals Type:
OPEN ZZ 2RS RS
CLEARANCE:
C0 C2 C3 C4 C5
Applicable Industries::
Building Material Shops, Machinery Repair Shops, Retail, P
25*52*15mm Cylindrical Roller Bearing NUP205 NJ205 E NUP205EM For Shaft

Cylindrical roller bearing NUP205 NJ205 E NUP205EM for shaft


Product Description

Cylindrical roller bearing

N Series- Bearings of N design are single row cylindrical roller bearing and have two fixed ribs on the inner ring that retain the rollers and cage and one smooth outer ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, N Series rolling bearings are used in non-locating bearing units. Also, the N Series bearings have virtually no thrust capacity.



NU Series- Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and one smooth inner ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, NU Series rolling bearings are used in non-locating bearing units. Also, the NU Series bearings have no virtually thrust capacity.



NN Series- Bearings of NN design are double row cylindrical roller bearing and have three fixed ribs on the inner ring that retain the rollers and cage and one smooth outer ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, N Series rolling bearings are used in non-locating bearing units. Also, the NN Series bearings have no virtually thrust capacity.



NNU Series- Are double row cylindrical roller bearings and have three fixed ribs on the outer ring and one smooth inner ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, NU Series rolling bearings are used in non-locating bearing units. Also, the NNU Series bearings have no virtually thrust capacity.



single row cylindrical roller bearings :N NU NJ NF NUP NFP NH(NJ+HJ)

double row cylindrical roller bearings :NN NNU NNF

four row cylindrical roller bearings :FC FCD

full complement cylindrical roller bearings



Application
widely used in automobile, electrical equipment, instrument, building machinery, rolling stock agricultural machinery and various specialized machineries,machine spindle application and are used for cool and hot mills.

Technology

25*52*15mm Cylindrical roller bearing NUP205 NJ205 E NUP205EM for shaft

Number       d(mm) D(mm) B(mm) Weight(kg)
N202E NJ202E NU202E   15 35 11 0.049
N203E NJ203E NU203E NUP203E 17 40 12 0.068
  NJ2203E NU2203E NUP204E 17 40 16 0.055
  NJ303E NU303E NUP303E 17 47 14 0.127
N204E NJ204E NU204E NUP204E 20 47 14 0.119
  NJ2204E NU2204E NUP2204E 20 47 18 0.154
  NJ304E NU304E NUP304E 20 52 15 0.16
  NJ2304E NU2304E NUP2304E 20 52 21 0.224
N205E NJ205E NU205E NUP205E 25 52 15 0.145
N206E NJ206E NU206E NUP206E 30 62 16 0.219
N207E NJ207E NU207E NUP207E 35 72 17 0.317
N208E NJ208E NU208E NUP208E 40 80 15 0.399
N209E NJ209E NU209E NUP209E 45 85 19 0.457
N210E NJ210E NU210E NUP210E 50 90 20 0.517
N211E NJ211E NU211E NUP211E 55 100 21 0.693
N212E NJ212E NU212E NUP212E 60 110 22 0.909
  NJ2213E NU2213E NUP2213E 65 120 31 1.54
N314E NJ314E NU314E NUP314E 70 150 35 2.89
  NJ2315E NU2315E NUP2315E 75 160 55 5.14
N216E NJ216E NU216E NUP216E 80 140 26 1.62
N317E NJ317E NU317E NUP317E 85 180 41 4.8
  NJ2218E NU2218E NUP2218E 90 160 40 3.29
N219E NJ219E NU219E NUP219E 95 170 32 2.99
  NJ2220E NU2220E NUP2220E 100 180 46 4.92
N322E NJ322E NU322E NUP322E 110 240 50 10.7
N224E NJ224E NU224E NUP224E 120 215 40 6.02
  NJ2324E NU2324E NUP2324E 120 260 86 23.8
N228E NJ228E NU228E NUP228E 140 250 42

16.8
