SI25E M24*2 Rod Ends Bearing Female Thread Rod End Cylinder

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: SI25E

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price
Highlight:

M24*2 Rod Ends Bearing

,

SI25E Rod Ends Bearing

,

SI25E Rod End Cylinder

Connection Screw Shape:
Male Thread
Body Material:
Carbon Steel, Zinc Plated, Chromate Treated
Lubrication:
Lubrication Required
Ball Material:
Gcr15 Steel,stainless Steel, Heat Treated
Operating Temperature Range(℃):
-20~80
Surface Hardness:
HRC60-62
Connection Screw Shape:
Male Thread
Body Material:
Carbon Steel, Zinc Plated, Chromate Treated
Lubrication:
Lubrication Required
Ball Material:
Gcr15 Steel,stainless Steel, Heat Treated
Operating Temperature Range(℃):
-20~80
Surface Hardness:
HRC60-62
SI25E M24*2 Rod Ends Bearing Female Thread Rod End Cylinder

rod end bearing SI25E M24*2 female thread rod end bearing



Product Description



Applications of rod ends bearing
1) Agriculture,
2) Light textile,
3) Mining,
4) Food &beverage,
5) Pharmaceutical,
6) Chemical processing,
7) Printing,
8) Dyeing, airport,
9) Air-conditioning,
10) Various kinds of conveying and rolling devices.



Features of rod end bearings
1) Can bear high load. According to its different types and structures, rod end bearing can bear radial load, axial load as well as two kinds of loads together.
2) Spherical outside surface of inner ring is lined with composite, so it is self-lubricating.
3) Rod end bearing has shock resistance, because of its spherical sliding large contact area, large dip angle and special craft processing method, such as lamenting, zincing, chroming or lining of outside sliding surface, spraying and so on.
4) Rod end bearing has the resistance of corrosion, abrasion. It also can be self-aligning, self-lubricating, so it can work normally even though installed improperly.

Product Standard:



WRM China rod end bearing SI25E M24*2 female thread rod end bearing


Bearings
number
Dimensions(mm) a
Load ratings

weight
(kg)
dk L5 w d4 d5 min d B c1 d2 max L3 L2 L4 G Dynamic
Static
SI5E 10 5 10 10 13 0.3 5 6 4.4 21 11 30 42 M5x0.8 13 3.4 8.1 0.021
SI6E 10 5 11 10 13 0.3 6 6 4.4 21 11 30 40.5 M6×1.0 13 3.4 8.15 0.039
SI8E 13 5 140 12.5 16 0.3 8 8 6 24 15 36 48 M8×1.25 15 5.5 12.9 0.061
SI10E 16 6.5 17 15 19 0.3 10 9 7 29 20 43 57.5 M10X1.5 12 8.15 17.6 0.096
SI12E 18 6.5 19 17.5 22 0.3 12 10 8 34 23 50 67 M12×1.75 11 10.8 24.5 0.18
S115ES 22 8 22 21 26 0.3 15 12 10 40 30 61 81 M14×2.0 8 17 36 0.22
SI17ES 25 10 27 24 30 0.3 17 14 11 46 34 67 90 M16×2.0 10 21.2 45 0.35
SI20ES 29 10 32 27.5 35 0.6 20 16 13 53 40 77 103.5 M20×1.5 9 30 60 0.35
SI25ES 35.5 12 36 33.5 42 0.6 25 20 17 64 48 94 126 M24×2 7 48 83 0.64
SI30ES 40.7 15 41 40 50 0.6 30 22 19 73 56 110 146.5 M30×2 6 62 110 0.93
SI35ES 47 15 50 47 58 0.6 35 25 21 82 60 125 166 M36×3 6 80 146 1.3
SI40ES 53 18 55 52 65 0.6 40 28 23 92 65 142 188 M39x3 7 100 180 2
SI45ES 60 20 60 58 70 0.6 45 32 27 102 65 145 196 M42×2 7 127 240 2.5
SI50ES 66 20 65 62 75 0.6 50 35 30 112 68 160 216 M45×3 6 156 290 3.5
SI60ES 80 20 75 70 88 1 60 44 38 135 70 175 242.5 M52×3 6 245 450 5.5
SI70ES 92 20 85 80 98 1 70 49 42 160 80 200 280 M56×4 6 315 610 8.6
SI80ES 105 25 100 95 110 1 80 55 47 180 85 230 320 M64×4 6 400 750 12



Dimensions in mm



For lef-hand thread,suffix "L"is added to bearing number and thread sign.e.g.SIL20ES Sliding contact surfaces:Steel/ Steel

Design and application features:

Combination rod end with malec or female thread is made up of a rod end a radial spherical plain bearing of series GE..E or GE... ES,rod end of steel and zinc coated;Can be lubicated via a nipple or a hole in the rod end. It has characteristic of large load capability. easy mounting and dismounting and me chanismsimplification.

Stainless steel can be customized

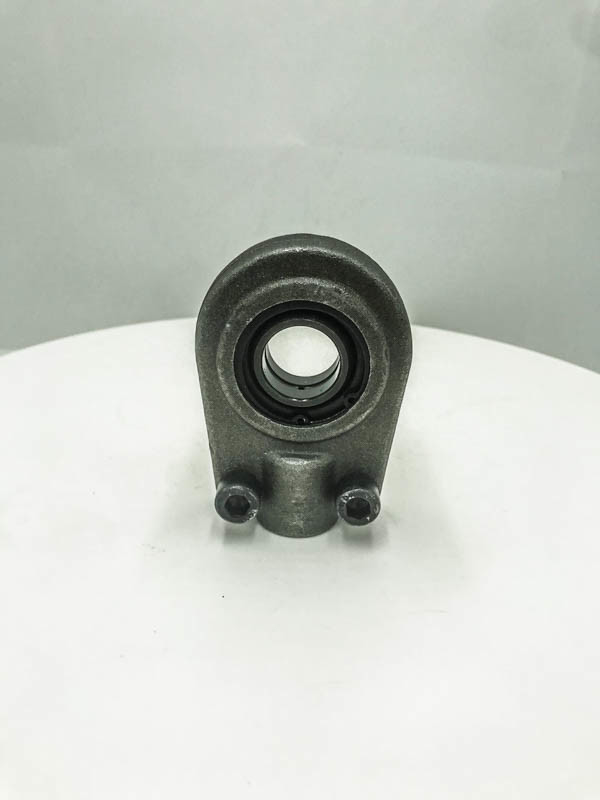

SI25E M24*2 Rod Ends Bearing Female Thread Rod End Cylinder 1SI25E M24*2 Rod Ends Bearing Female Thread Rod End Cylinder 2SI25E M24*2 Rod Ends Bearing Female Thread Rod End Cylinder 3
