Product Details
Place of Origin: China
Brand Name: SFT
Model Number: POS16
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Material: |
Carbon Steel |
Feature: |
High Temperature Resistance .carrying Capability |
Lubrication: |
Lubrication Required |
Application: |
Automated Machine |
Operating Temperature Range(℃): |
-20~80 |
Surface Hardness: |
HRC60-62 |
Material: |
Carbon Steel |
Feature: |
High Temperature Resistance .carrying Capability |
Lubrication: |
Lubrication Required |
Application: |
Automated Machine |
Operating Temperature Range(℃): |
-20~80 |
Surface Hardness: |
HRC60-62 |

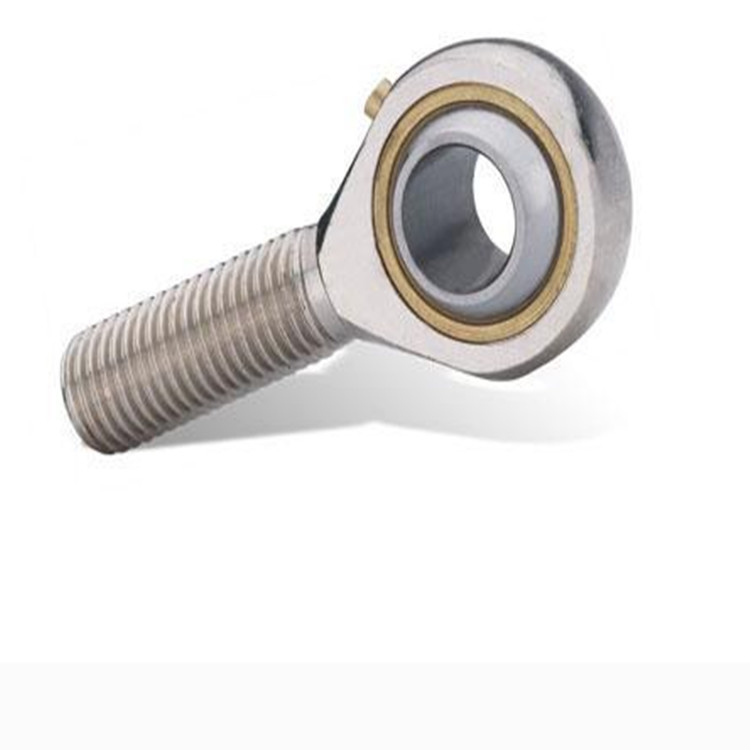

M16X2mm ball joint rod end bearings
Features of ball joint rod end bearing:
1) Can bear high load. According to its different types and structures, rod end bearing can bear radial load, axial load as well as two kinds of loads together.
2) Spherical outside surface of inner ring is lined with composite, so it is self-lubricating.
3) Rod end bearings has shock resistance, because of its spherical sliding large contact area, large dip angle and special craft processing method, such as lamenting, zincing, chroming or lining of outside sliding surface, spraying and so on.
4) Rod end bearing has the resistance of corrosion, abrasion. It also can be self-aligning, self-lubricating, so it can work normally even though installed improperly.
Applications of rod ends bearing
1) Agriculture,
2) Light textile,
3) Mining,
4) Food &beverage,
5) Pharmaceutical,
6) Chemical processing,
7) Printing,
8) Dyeing, airport,
9) Air-conditioning,
10) Various kinds of conveying and rolling devices.
Model selection of ball joint rod end bearing :
| Bearings number | Dimensions (mm) | Load ratings | a° |
Weight (kg)
|
||||||||||
| d | B | r1 | C1 | d1 | d2 | d3 | h1 | L3 | L4 | Dynamic | Static | |||
| POS5 | 5 | 8 | 0.3 | 6 | 7.7 | 16 | M5×0.8 | 33 | 20 | 41 | 3.3 | 3.9 | 13 | 0.016 |
| POS6 | 6 | 9 | 0.3 | 6.75 | 9 | 18 | M6×1 | 36 | 22 | 45 | 4.3 | 5.3 | 13 | 0.026 |
| POS8 | 8 | 12 | 0.3 | 9 | 10.4 | 22 | M8×1.25 | 42 | 25 | 53 | 6.8 | 8.5 | 14 | 0.044 |
| POS10 | 10 | 14 | 0.6 | 10.5 | 12.9 | 26 | M10×1.5 | 48 | 29 | 61 | 10 | 11 | 14 | 0.072 |
| POS12 | 12 | 16 | 0.6 | 12 | 15.4 | 30 | M12×1.75 | 54 | 33 | 69 | 13 | 14 | 13 | 0.108 |
| POS14 | 14 | 19 | 0.6 | 13.5 | 16.9 | 34 | M14×2 | 60 | 36 | 77 | 17 | 20 | 16 | 0.161 |
| POS16 | 16 | 21 | 0.6 | 15 | 19.4 | 38 | M16×2 | 66 | 40 | 85 | 21 | 25 | 15 | 0.225 |
| POS18 | 18 | 23 | 0.6 | 16.5 | 21.9 | 42 | M18×1.5 | 72 | 44 | 93 | 26 | 30 | 15 | 0.295 |
| POS20 | 20 | 25 | 0.6 | 18 | 24.4 | 46 | M20×1.5 | 78 | 47 | 101 | 31 | 35 | 15 | 0.382 |
| POS22 | 22 | 28 | 0.6 | 20 | 25.8 | 50 | M22×1.5 | 84 | 51 | 109 | 38 | 43 | 15 | 0.488 |
| POS25 | 25 | 31 | 0.6 | 22 | 29.6 | 60 | M24×2 | 94 | 57 | 124 | 47 | 65 | 15 | 0.749 |
| POS28 | 28 | 35 | 0.6 | 25 | 32.3 | 66 | M27×2 | 103 | 62 | 136 | 59 | 77 | 15 | 0.949 |
| POS30 | 30 | 37 | 0.6 | 25 | 34.8 | 70 | M30×2 | 110 | 66 | 145 | 63 | 86 | 17 | 1.13 |
supply all kinds of rod end bearings with all dimensions as customers require, such as: SI...E, SI...ES, SA...E, SA...ES, SI...T/K, SA...T/K, SI...B/K, SA...B/K. GIR...UK, GAR...UK, PHS...., POS...., SIZP...S, SAZP...S, SIZJ...., SAZJ...., GIHR...DO, GIHR...K...DO, SIQG...ES, GK...DO, GF...DO, ect. The material of the bearings can be steel/steel, steel/PTFE bronze composite, steel/bronze
We can supply kinds of ball joint according to the samples or drawings of customers, material can be required by customers.
