Home > products > Wheel Hub Bearing > 90369-T0003 Car Wheel Hub Bearing 54KWH0 90369-T0003

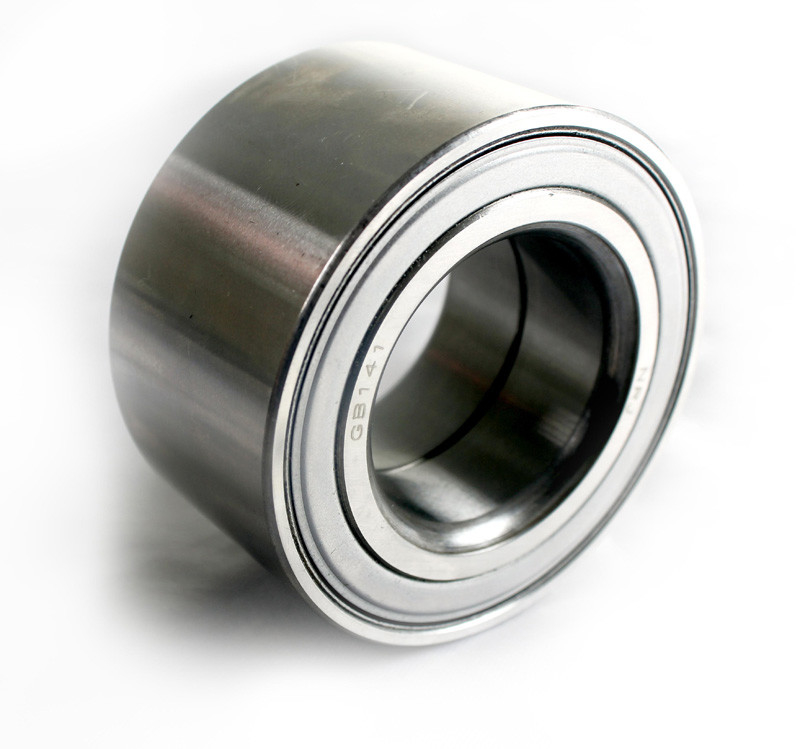

90369-T0003 Car Wheel Hub Bearing 54KWH0 90369-T0003

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: 90369-t0003

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price
Highlight:

90369-T0003 Car Wheel Hub Bearing

,

54KWH0 Car Wheel Hub Bearing

,

90369-T0003 Car Wheel Hub Bearing

Size:
54X96X51mm
Operating Angle:
Max Working Angle 45 Degree
Weight:
0.8KG
Cage:
Steel Cage
Car Make:
Auto Bearing
Application:
Machinery
Size:
54X96X51mm
Operating Angle:
Max Working Angle 45 Degree
Weight:
0.8KG
Cage:
Steel Cage
Car Make:
Auto Bearing
Application:
Machinery
90369-T0003 Car Wheel Hub Bearing 54KWH0 90369-T0003

car wheel bearing 54KWH01 wheel hub bearing​



Product Description

90369-T0003 car wheel bearing 54KWH01 KOYO wheel hub bearing 90369-T0003

The main function of a hub bearing is to support the load and provide precise guidance for the rotation of the hub. It bears both axial and radial loads and is a very important component. Traditional automotive wheel bearings are composed of two sets of tapered roller bearings or ball bearings. The installation, oiling, sealing and clearance adjustment of the bearings are carried out on the automobile production line. This structure makes it difficult to assemble in a car production plant, with high cost and poor reliability, and when the car is maintained at a repair point, the bearing needs to be cleaned, oiled and adjusted. The hub bearing unit is developed on the basis of standard angular contact ball bearings and tapered roller bearings. It integrates two sets of bearings, has good assembly performance, can eliminate clearance adjustment, light weight, compact structure and load capacity. Large, sealed bearings can be pre-installed with grease, omitting the external hub seal, and maintenance-free, etc., have been widely used in cars, there is a trend to gradually expand the application in truck



Truck hub bearings provide an advanced replacement solution, it compose of two high precision bearings which provide high quality
grease before delivery and the precise axial clearance, compact design can ensure good performance of the bearing even under most
stringent conditions and high loads. the use of such bearings ensure that the heavy duty truck can be replace the wheel huquickly and easily.



Angular contact roller bearing IJ211001 is a type of roller bearing with tapered rolling elements. Designed for simultaneous perception of multidirectional loads, axial and radial on both sides. Their compensation is due to the realized contact angles, the value of which is different for each track. The advantage of the IJ211001 angular contact roller bearing is the elimination of roller slippage, relative to the raceways of the outer and inner cages, during the rotation of the shaft. Single and twin installation is allowed. Scope of application Angular contact roller bearing IJ211001 includes differentials and gearboxes, various wheel hubs, gearboxes designed for power take-off, machine tools for various purposes, equipment for general and special mechanical engineering.



feature:

Less coefficient of friction
High limiting speed
With Heavier load used in various automobiles
Less energy consumption.
Durable seals and couping life.
Less vibration and noise.
Super finished raceways.



NO.
d
D
B
Mass (kg)
38BWD19
38
70
37
0.48
38BWD21
38
70
38
0.57
38BWD22
38
71
39
0.62
38BWD12
38
72
33
0.56
38BWD04
38
72.041
34
0.55
38BWD01A
38
74
33
0.6
38BWD06D
38
74
50
0.82
38BWD10B
38
74
40
0.69
38BWD15A
38
74
33
0.61
42KWD02A
42
72
38
0.58
42KWD02D
42
72
38
0.58
42KWD08
42
80
38
0.82
43KWD02
43
76
40
0.82
43KWD04
43
77
38
0.81
45KWD04
45
77
50
0.89
