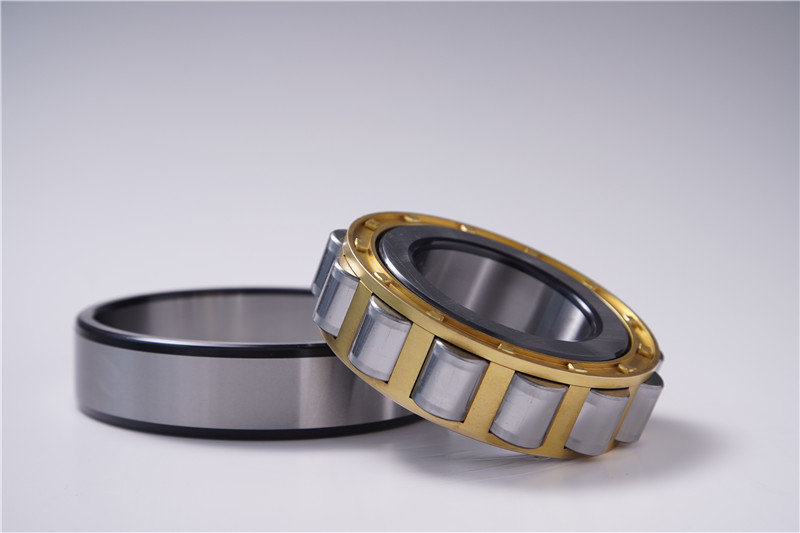

NJ313 Single Row Cylindrical Roller Bearing V4 Vibration For Automobiles

1. Cylindrical Roller Bearing Information:

The rollers of cylindrical roller bearings have linear contact with the raceway,so the bearing can carry heavier radial load.Applications are found in situations characterized by heavy load and shock load,and also by high-speed rotation.These bearings are separable formed bearings,and convenient to be mounted and dismounter.They are designed as types of single,double and milltiple rows among which the single row cylindrical roller bearings are most applicable.Normally these bearings can accommodate radial load only,none but single row bearings with ribs both on inner and outer rings can carry lighter axial load.

2. Cylindrical Roller Bearing Application:

Motor, Machinery, Electric Tools, Sports Apparatus, office equipment , Scooter Aluminum windows , shower blocks, hanging round, closet wheel, toys, Fan, car, truck, tractors and automatic machine,Textile machine, Pump, Agricultural machinery, Machine tool,window , sliding door , other furniture and some toys

3. Cylindrical Roller Bearing Features:

1. Roller and raceway for line contact or repair offline contact, radial bearing capacity, suitable for heavy load and impact load.
2. Friction coefficient is small, suitable for high-speed, speed close to the deep groove ball bearings.
3. N-type and NU-type axial movement, can adapt to thermal expansion or installation error caused by the relative position of the shaft and shell changes, can be used for free-end support.
4. Shaft or seat hole processing requirements are higher, the relative deviation of the outer ring axis after installation to strict control, so as not to cause contact stress concentration.
5. Inner or outer ring can be separated, easy to install and remove.
