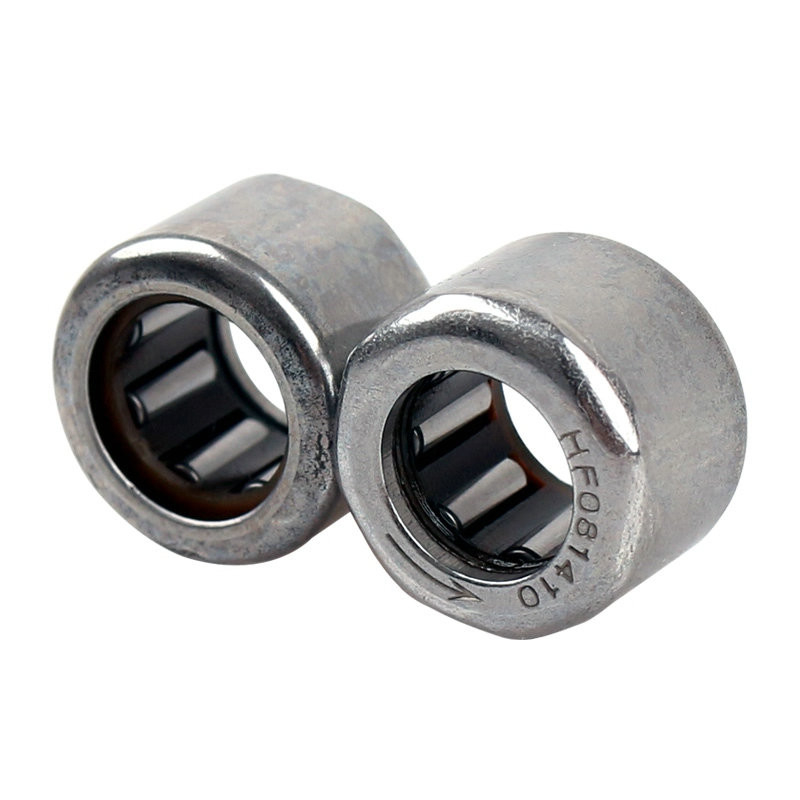

HF081410 One Way Needle Roller Bearing Steel Springs Nylon Cage

HF081410 One Way Needle Bearing (steel springs) with good quality

Needle roller bearing /cam follower is composed of a stud used as the tray of a group of rollers and a thick wall outer ring .The shoulder of the stud and the surface retaining ring on the stud form the guiding faces on the two sides of the outer ring.When the curve rollers are running on the plain tray or cam wheel,the inner stress on the rollers will increase due to the deformation of the outer ring.

One way clutch -drawn cup roller clutches /clutch and bearing assemblies, It may take the switch, the prevent returning installment, the overdrive clutch. HF, FC, RC (roller pin coupling): Is composed of the drawn cup and the plastic retainer; The retainer may bring the plastic reed also to be possible on the stainless steel reed guidance roller pin, in the addendum circle incline roller conveyer and the roller pin takes the locking arrangement. HFL, FCB, RCB (coupling and bearing assembly): The supporting bearing installs in the roller pin coupling's both sides and withstands the radial load, those who take the supporting bearing is the roller pin and the plastic retainer module. MATERIAL: The outer covering is generally the ST14 low-carbon steel (special occasion may use stainless steel); Keep the shelf usually strengthening nylon; The needle is a bearing steel to roll, produce according to the needs of customer too. For example: Unidirectional HF2016 is widely applied on the washer bearing!

Materials

Material for needle roller is GCr15 bearing steel, quench-hardening HRC60---65.
Material for inner and outer races is GCr15 bearing steel, quench-hardening HRC61---65.
Material for cages is quality low-carbon steel or reinforced nylon.
