RC040708 One Way Clutch Needle Roller Bearing For Wheelbarrow

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: RC040708

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price
Highlight:

One Way Clutch Needle Bearing

,

Wheelbarrow Clutch Needle Bearing

,

drawn cup clutch needle bearing

Inner Diameter:
6.35mm
Lubrication:
Oil Or Grease
Weight:
3.5g
Seals Type:
Sealed/ OPEN
Vibration:
ZV1, ZV2, ZV3, Or As Requested
Torque Capacity:
2.03Nm
Inner Diameter:
6.35mm
Lubrication:
Oil Or Grease
Weight:
3.5g
Seals Type:
Sealed/ OPEN
Vibration:
ZV1, ZV2, ZV3, Or As Requested
Torque Capacity:
2.03Nm
RC040708 One Way Clutch Needle Roller Bearing For Wheelbarrow

RC040708 One Way Clutch Needle Bearing for Wheelbarrow



Needle roller bearing /cam follower is composed of a stud used as the tray of a group of rollers and a thick wall outer ring .The shoulder of the stud and the surface retaining ring on the stud form the guiding faces on the two sides of the outer ring.When the curve rollers are running on the plain tray or cam wheel,the inner stress on the rollers will increase due to the deformation of the outer ring.



Materials


Material for needle roller is GCr15 bearing steel, quench-hardening HRC60---65.
Material for inner and outer races is GCr15 bearing steel, quench-hardening HRC61---65.
Material for cages is quality low-carbon steel or reinforced nylon.

Features of RC Needle roller bearing

♦Three pieces needles equipped to be locking assembly function.
♦Torque increases double of the normal HF Model.
♦Allow high indexing frequencies due to their low mass .

HF,FC,RC (roller pin coupling): Is composed of the drawn cup and the plastic retainer; The retainer may bring the plastic reed also to be possible on the stainless steel reed guidance roller pin, in the addendum circle incline roller conveyer and the roller pin takes the locking arrangement.

Catalogue of RC needle roller bearing for your choice

RC040708 One Way Clutch Needle Bearing for Wheelbarrow



Bearing Designation Mass Approx Designation
Fw D C Torque
g mm Nm
RC02 2 3.175 7.15 6.35 0.32
RC040708 3.5 6.35 11.112 12.7 2.03
RC040708-FS 3.5 6.35 11.112 12.7 2.03
RC061008 4.7 9.525 15.875 12.7 5.45
RC061008-FC 4.7 9.525 15.875 12.7 5.45
RC081208 9.2 12.7 19.05 12.7 8.84
RC081208-FS 9.2 12.7 19.05 12.7 8.84
RC101410 14.5 15.875 22.225 15.88 16.9
RC101410-FC 14.5 15.875 22.225 15.88 16.9
RC121610 16.2 19.05 25.4 15.88 23.3
RC121610-FS 16.2 19.05 25.4 15.88 23.3
RC162110 17 25.4 33.338 15.88 49.6
RC162110-FC 17 25.4 33.338 15.88 49.6
RCB061014 12 9.525 15.875 22.22 4.83
RCB061014-FS 12 9.525 15.875 22.22 4.83
RCB081214 16 12.7 19.05 22.22 7.9
RCB081214-FC 16 12.7 19.05 22.22 7.9
RCB101416 21.3 15.875 22.225 25.4 15.4
RCB101416-FS 21.3 15.875 22.225 25.4 15.4
RCB121616 26.5 19.05 25.4 25.4 20.9
RCB121616-FC 26.5 19.05 25.4 25.4 20.9
RCB162117 44.8 25.4 33.338 26.99 45
RCB162117-FS 44.8 25.4 33.338 26.99 45

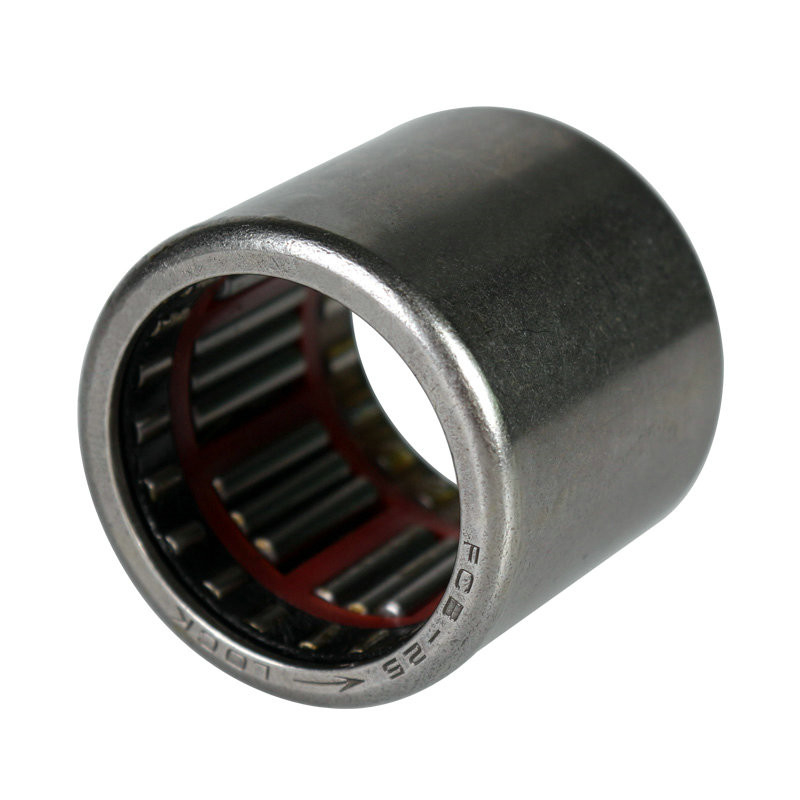

RC040708 One Way Clutch Needle Roller Bearing For Wheelbarrow 1RC040708 One Way Clutch Needle Roller Bearing For Wheelbarrow 2RC040708 One Way Clutch Needle Roller Bearing For Wheelbarrow 3
