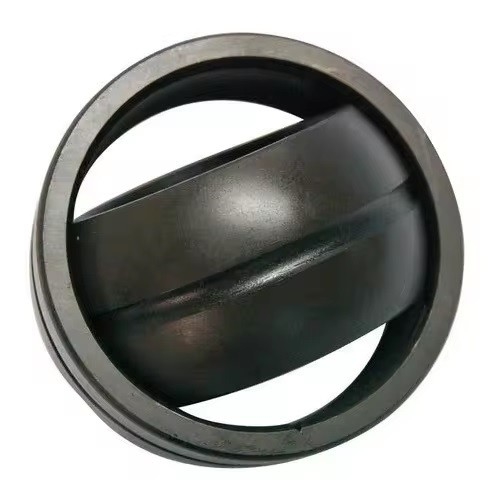

Cylinder GE45ES Ball Joint Spherical Plain Bearing Bushings Customized

Cylinder GE ES 2RS 20 40 60 customized bearing ball joint Spherical Plain Bearing bushings

Product Description of Spherical Plain Bearing:

Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds.

Radial spherical plain bearings requiring maintenance have the sliding contact surface combination steel-on-steel. Bearings with this sliding contact surface combination require regular relubrication. The high wear resistance of the sliding surfaces makes these bearings especially suitable for bearing arrangements where heavy loads of alternating direction, shock loads or heavy static loads have to be accommodated. Bearings which have cylindrical extensions at both sides of the inner ring are intended for applications where normally spacer sleeves are arranged at either side of the bearing, or are specially designed for the bearing arrangements of hydraulic cylinders.

Joint Bearings Series:

GE...E type: single outer ring, no lubrication tank. Can withstand radial loads and small axial loads in either direction.

GE...ES type: single seam outer ring with lubrication groove. Can withstand radial loads and small axial loads in either direction.

GE...ES-2RS type, GEEW...ES-2RS type: single-slit outer ring with lubrication groove and sealing ring on both sides. Can withstand radial loads and small axial loads in either direction.

GE...ESN type: single-slit outer ring, GE...XSN type: double-slit outer ring (split outer ring) with lubricating oil groove and outer ring with retaining groove. Can withstand radial loads and small axial loads in either direction. However, when the axial load is received by the retaining ring, its ability to withstand axial loads is reduced.

Applications of Spherical Plain Bearing:

electric motors, automotive applications, home appliances, industrial equipment.

Radial Spherical plain bearings are design to cater to all heavy loading equipments.

Plain bearings are able to cater to various sliding contact surfaces;

Steel/PTFE composite material and Steel/PTFE fabric material.

Range of production range from ID15mm to ID250mm.
